Battery Module Fan Control Relay, High Speed & Battery Module Fan Control Relay, Low Speed Connector End View

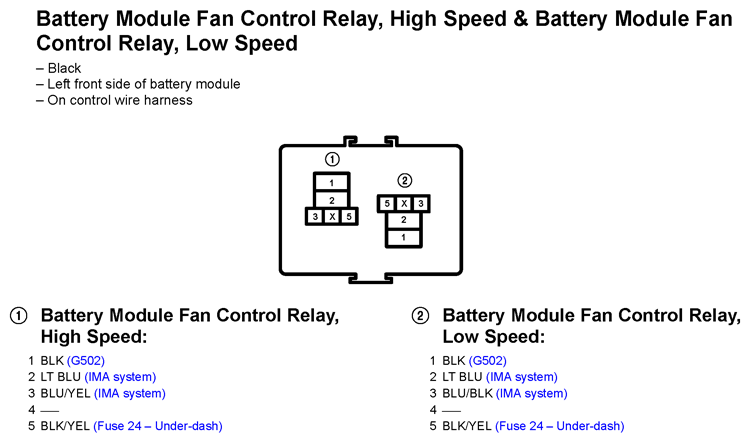

Fig 1: Battery Module Fan Control Relay, High Speed & Battery Module Fan Control Relay, Low Speed Connector End View
G11250534Courtesy of AMERICAN HONDA MOTOR CO., INC.
