C405 Connector End View
C405 Connector End View

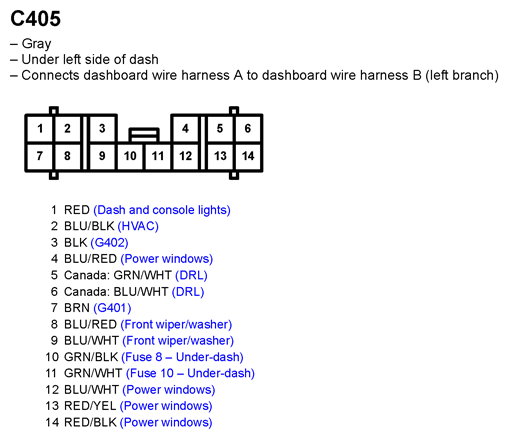

Fig 1: C405 Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
