C502 Connector End View
C502 Connector End View

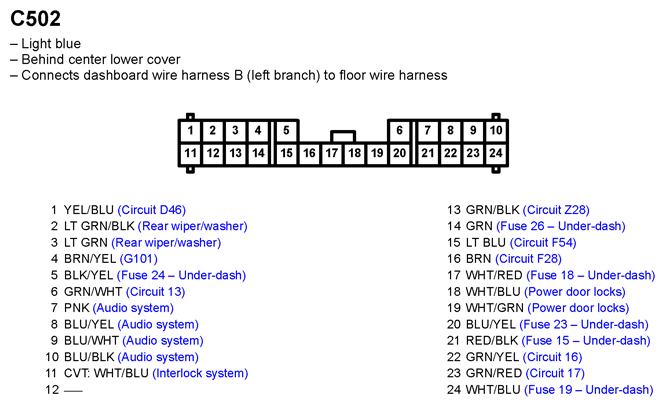

Fig 1: C502 Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
