C552 Connector End View
C552 Connector End View

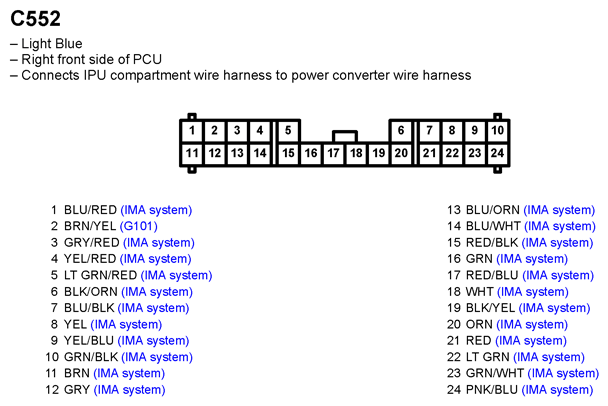

Fig 1: C552 Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
