Climate Control Unit/Heater Control Panel Connector End View
Climate Control Unit/Heater Control Panel Connector End View

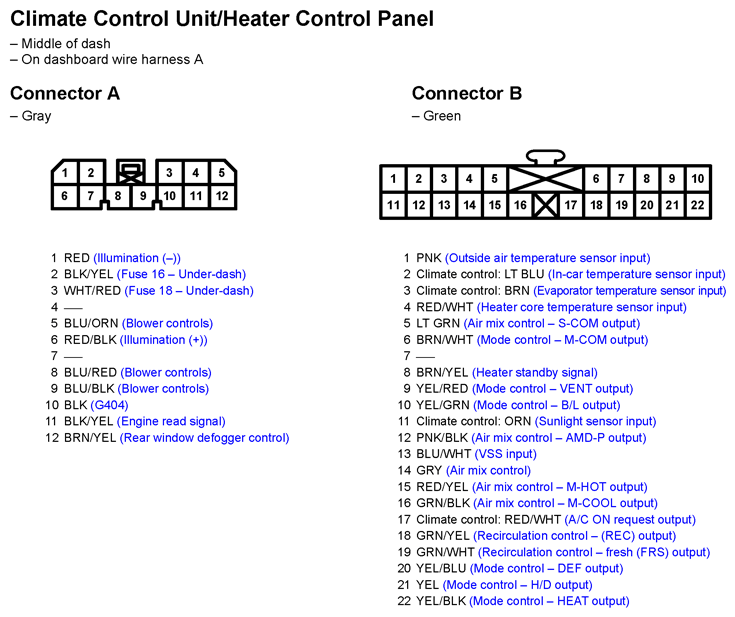

Fig 1: Climate Control Unit/Heater Control Panel Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
