DC-DC Converter Connector End View
DC-DC Converter Connector End View

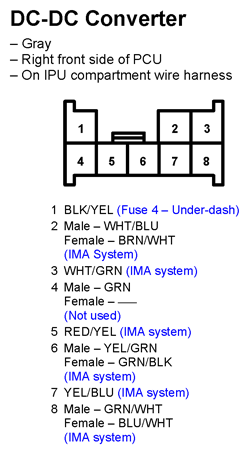

Fig 1: DC-DC Converter Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
