Junction Board Connector End View
Junction Board Connector End View

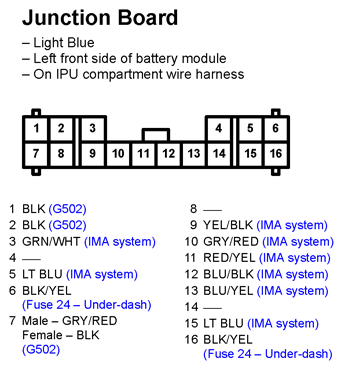

Fig 1: Junction Board Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
