MCM Connector End View
MCM Connector End View

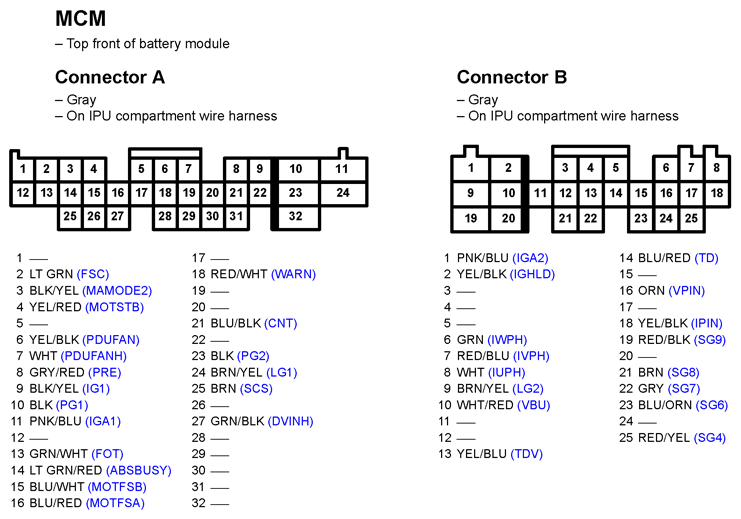

Fig 1: MCM Connector End View (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

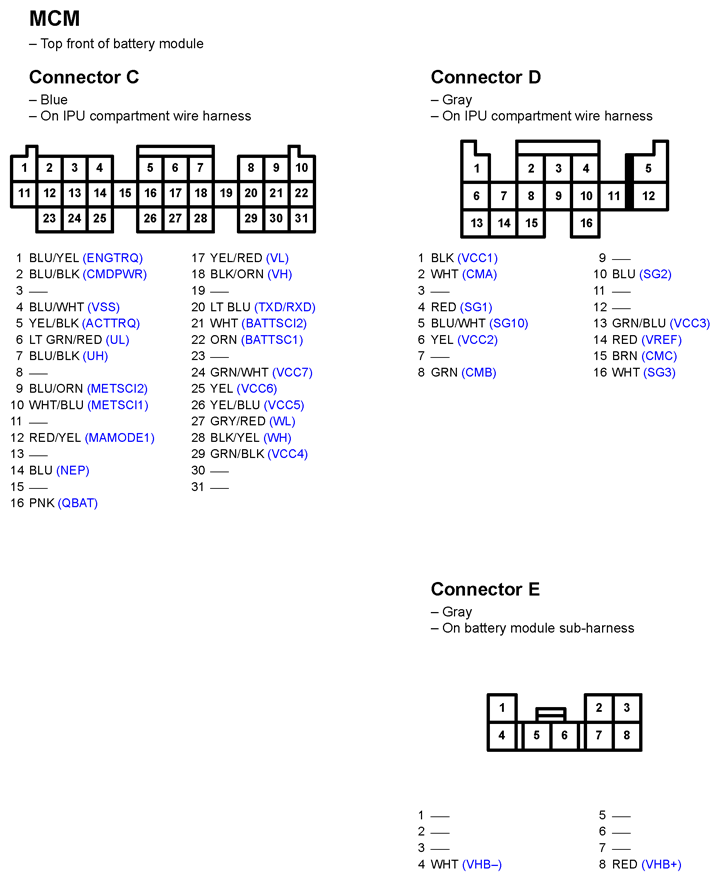

Fig 2: MCM Connector End View (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
