TCM (CVT) Connector End View
TCM (CVT) Connector End View

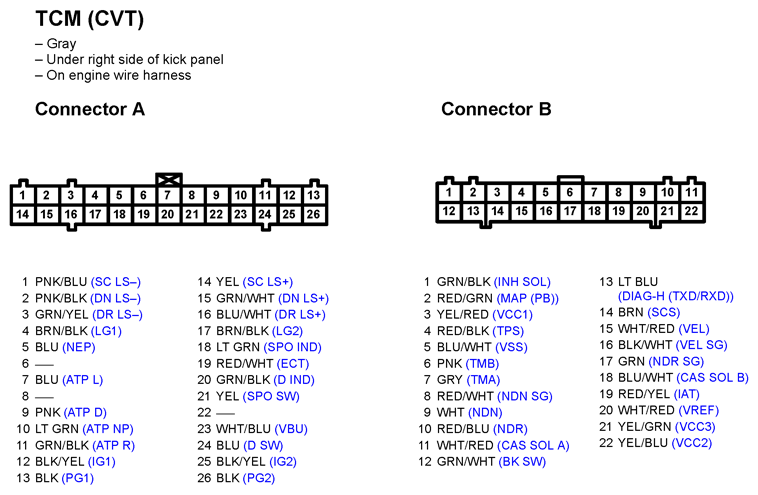

Fig 1: TCM (CVT) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
