Wheel Speed Sensor, Right Rear Connector End View
Wheel Speed Sensor, Right Rear Connector End View

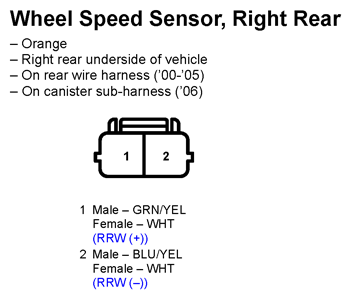

Fig 1: Wheel Speed Sensor, Right Rear Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
