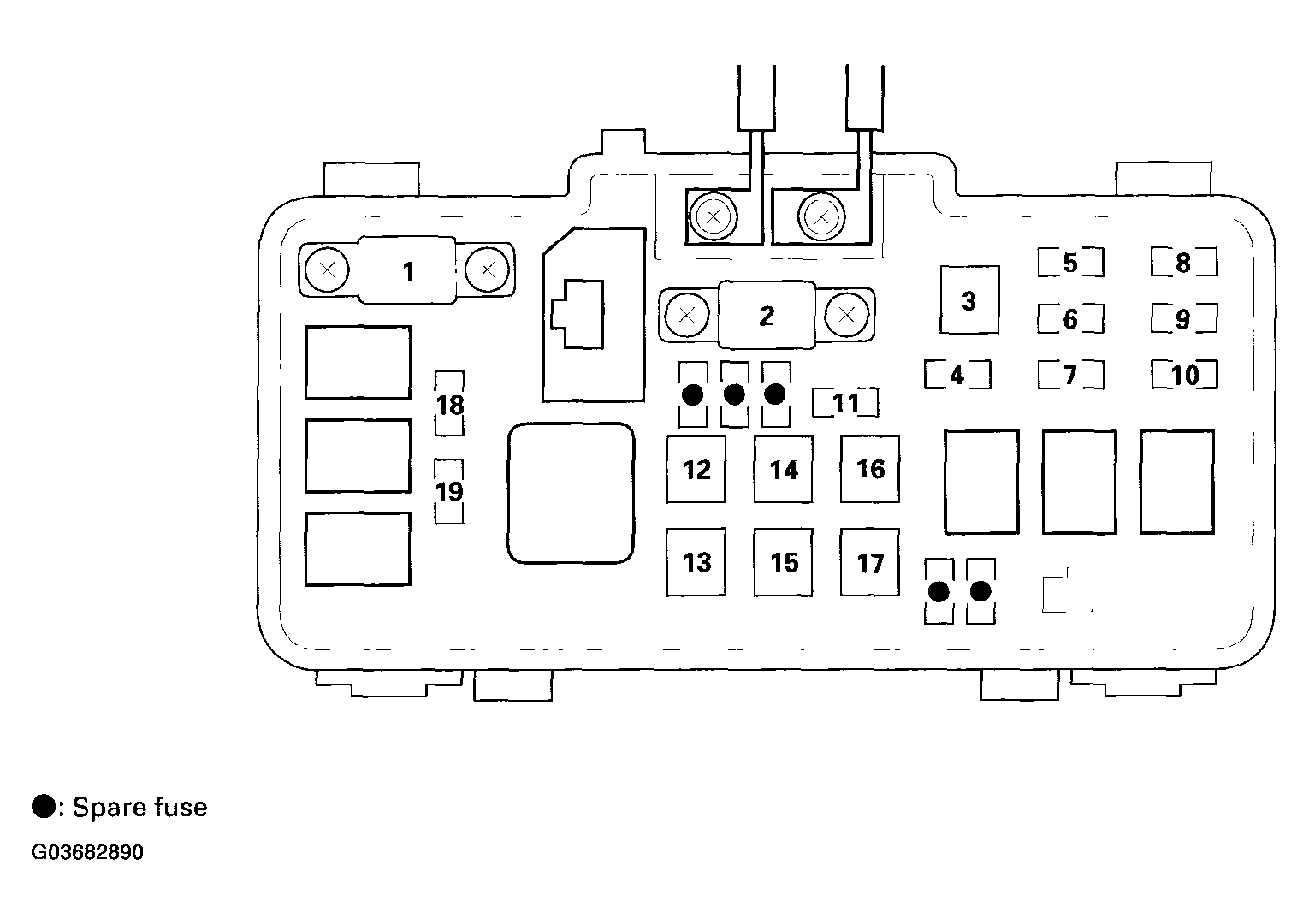

Under-hood Fuse/Relay Box
FUSE TO COMPONENTS INDEX
| Fuse Number | Amps | Wire Color | Component(s) or Circuit(s) Protected |
|---|---|---|---|
| 1 | 50 A | WHT | Ignition switch (BAT) |
| 2 | 80 A | - | Battery, Power distribution |
| 3 | 30 A | WHT/BLU | ABS modulator-control unit |
| 4 | 10A | WHT/BLK | Turn signal/hazard relay, Turn signal lights |
| 5 | 15A | WHT/BLU | Low speed motor power inverter (MPI) module fan control relay, High speed motor power inverter module (MPI) fan control relay, PDU fan motor |
| 6 | 10A | WHT/GRN | ABS modulator-control unit, ECM, High mount brake light, Taillights |
| 7 | 15A | WHT/GRN | PGM-FI main relay (IGP), Key interlock solenoid (CVT) |
| 8 | 15A | RED/YEL | High beam indicator light. Left headlight, Daytime running lights control unit (Canada) |
| 9 | - | - | Not used |
| 10 | 15A | RED | Right headlight, Daytime running lights control unit (Canada) |
| 11 | 30 A | BLU/BLK | Radiator fan motor |
| 12 | 40 A | BLU/WHT | Blower motor |
| 13 | 30 A | WHT/GRN | Rear window defogger, Noise condenser |
| 14 | 20 A | WHT/GRN | ABS modulator-control unit |
| 15 | 40 A | WHT | EPS control unit |
| 16 | 30 A | YEL | No. 14,18,19, 20, 21, 22 and 23 fuses (in the under-dash fuse/relay box), Taillight relay |
| 17 | 40 A | WHT/BLK | No. 8 and 10 fuses (in the under-dash fuse/relay box), Power window relay |
| 18 | 7.5 A | WHT | Battery condition monitor (BCM) module. High voltage contactor, Motor control module (MCM), Voltage converter module |
| 19 | 20 A | BLU/YEL | A/C condenser fan motor |
| BLU/RED | A/C compressor clutch |
