Relays And Control Unit Locations
›
Floor and Rear
Floor and Rear

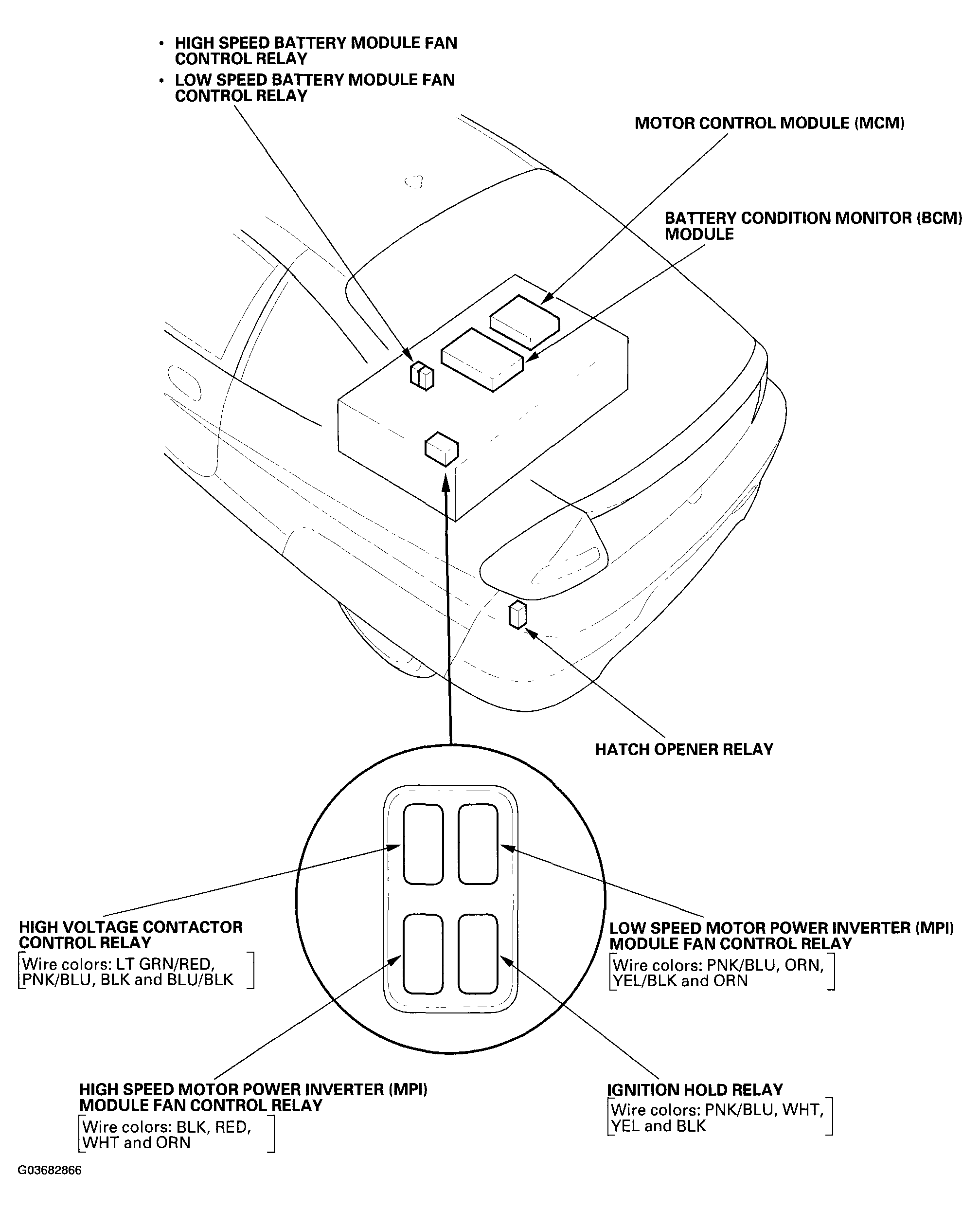

Fig 1: Identifying Floor And Rear Relay And Control Unit Locations
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
