Planetary Gear Inspection

13. Check the planetary gears (A) and ring gear (B) for wear or damage. If they are worn or damaged, replace the planetary gears and ring gear.

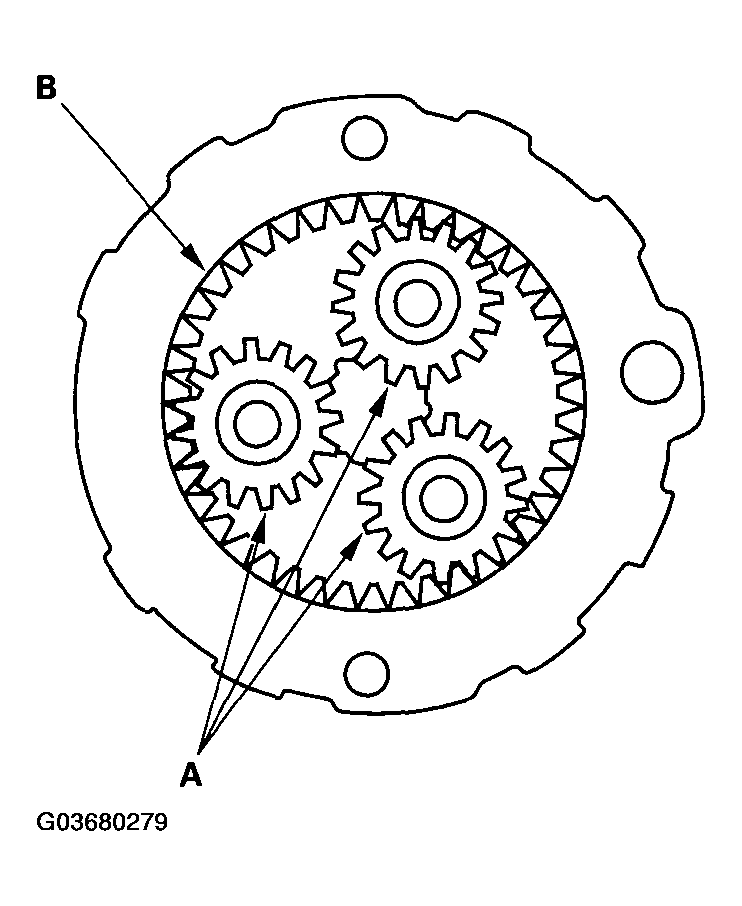

Fig 1: Checking Planetary Gears And Ring Gear
Courtesy of AMERICAN HONDA MOTOR CO., INC.
