Radiator Fan Switch Replacement

NOTE: Bleed air from the cooling system after installing the radiator fan switch (see COOLANT REPLACEMENT ).

Disconnect the radiator fan switch connector, then remove the radiator fan switch (A).

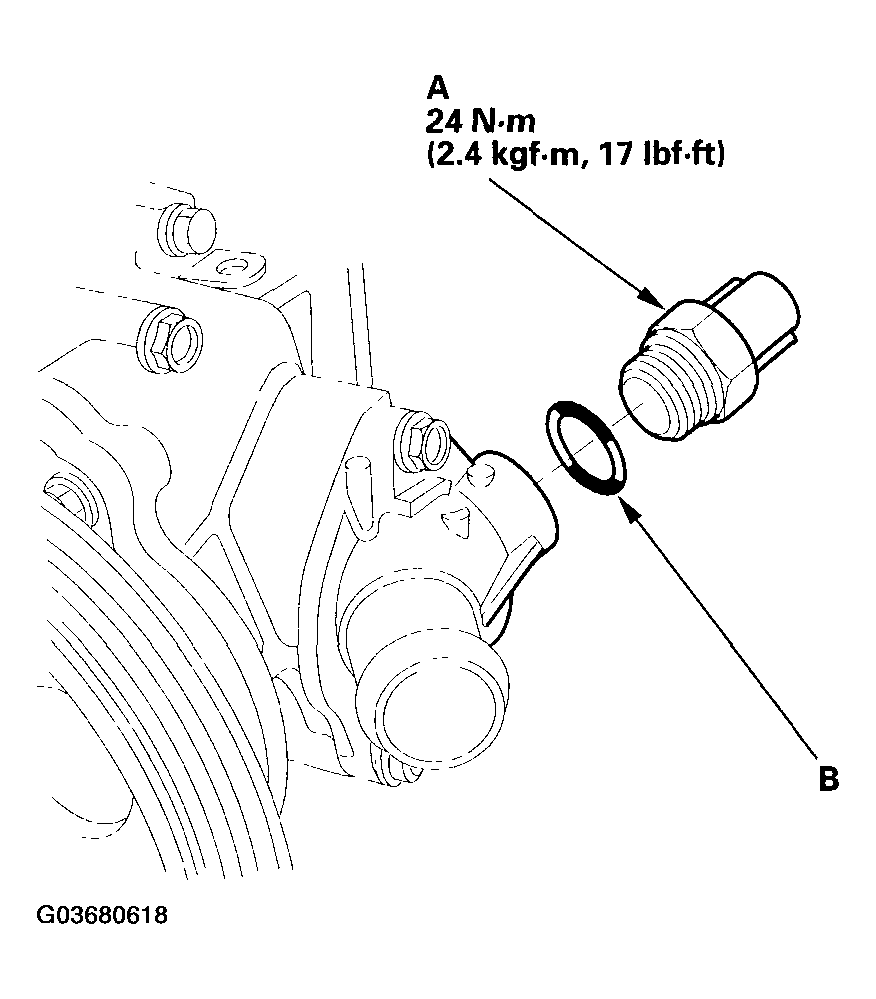

Fig 1: Removing Radiator Fan Switch And Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the radiator fan switch with a new O-ring (B).
