ECT Sensor Replacement

Disconnect the engine coolant temperature (ECT) sensor connector, then remove the ECT sensor (A).

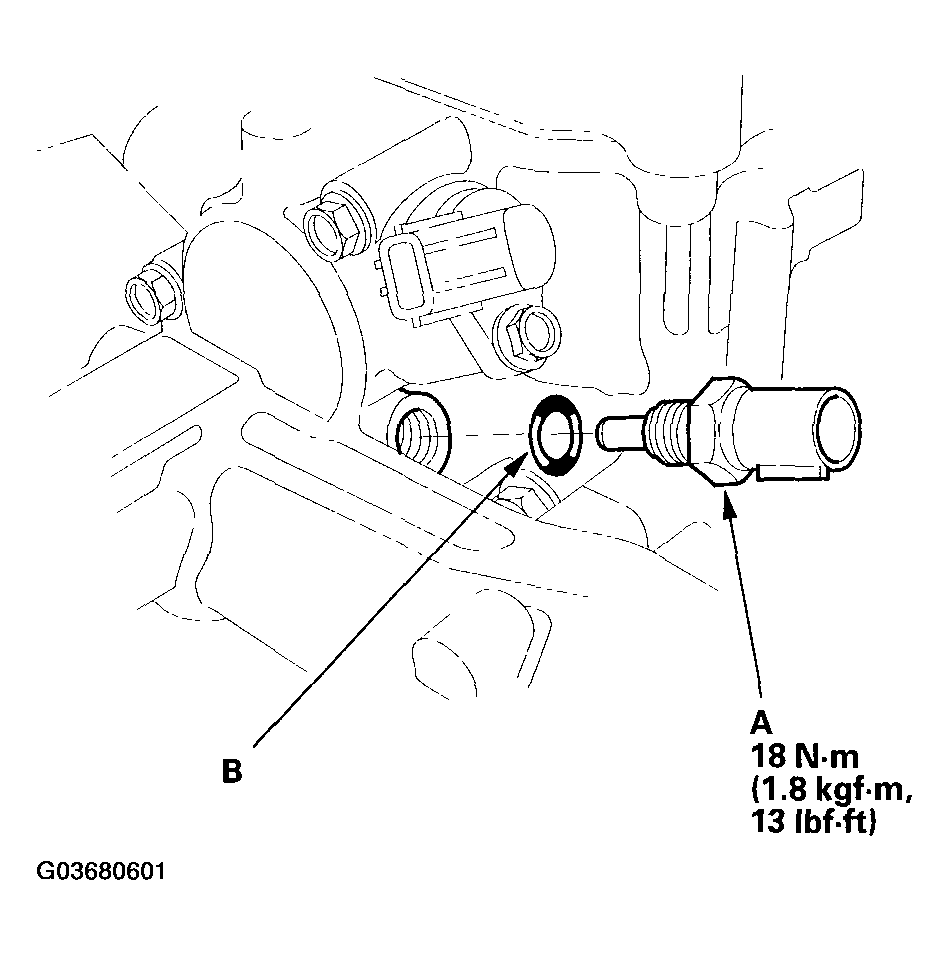

Fig 1: Disconnecting Engine Coolant Temperature Sensor Connector, And Removing ECT Sensor With Specified Torques
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the new ECT sensor in the reverse order of removal with a new O-ring (B).
