Fan Motor Test

Disconnect the 2P connector from the radiator fan motor.

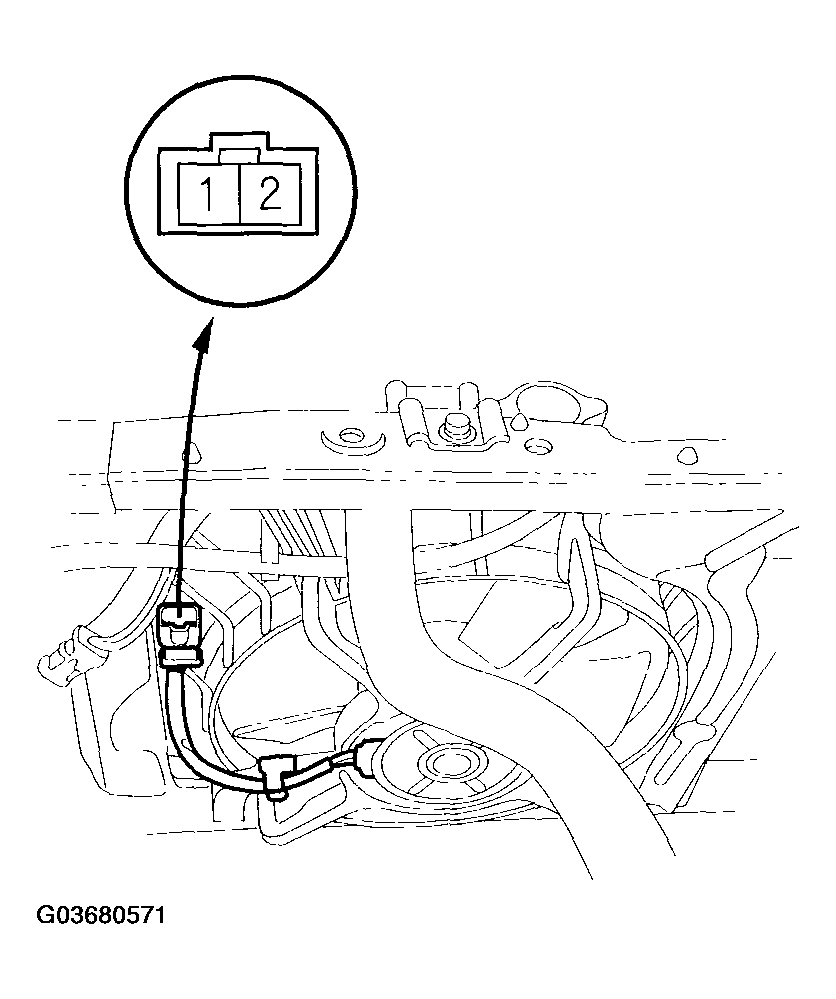

Fig 1: Disconnecting 2P Connector From Radiator Fan Motor
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Test the motor by connecting battery power to the No. 2 terminal and ground to the No. 1 terminal.
If the motor fails to run or does not run smoothly, replace it (see RADIATOR AND FAN REPLACEMENT ).
