System Description
›
Vacuum Distribution
›
2006 CVT model
2006 CVT model

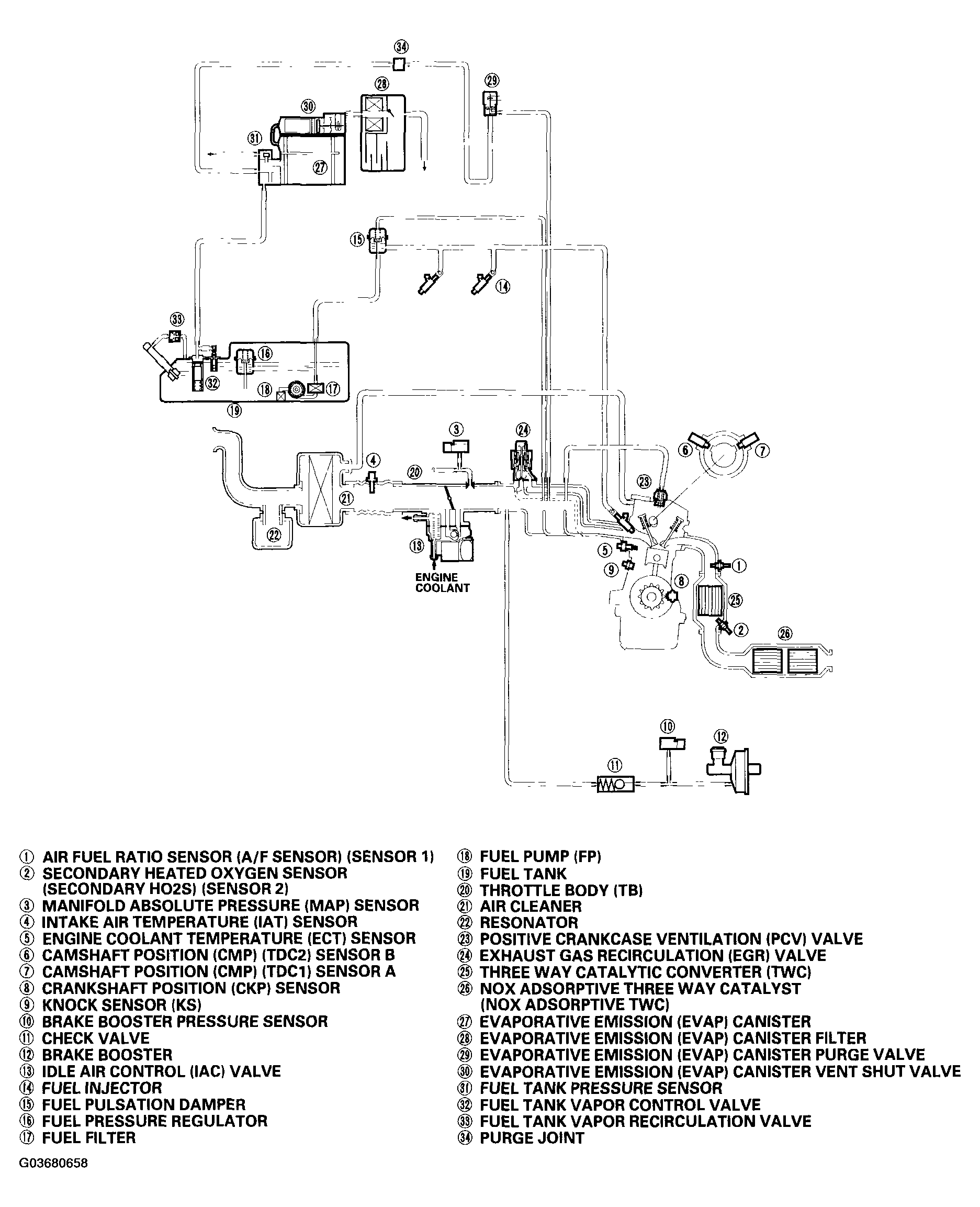

Fig 1: Identifying Vacuum Distribution (2006 CVT Model)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
