System Description
›
Vacuum Distribution
›
2006 M/T models
2006 M/T models

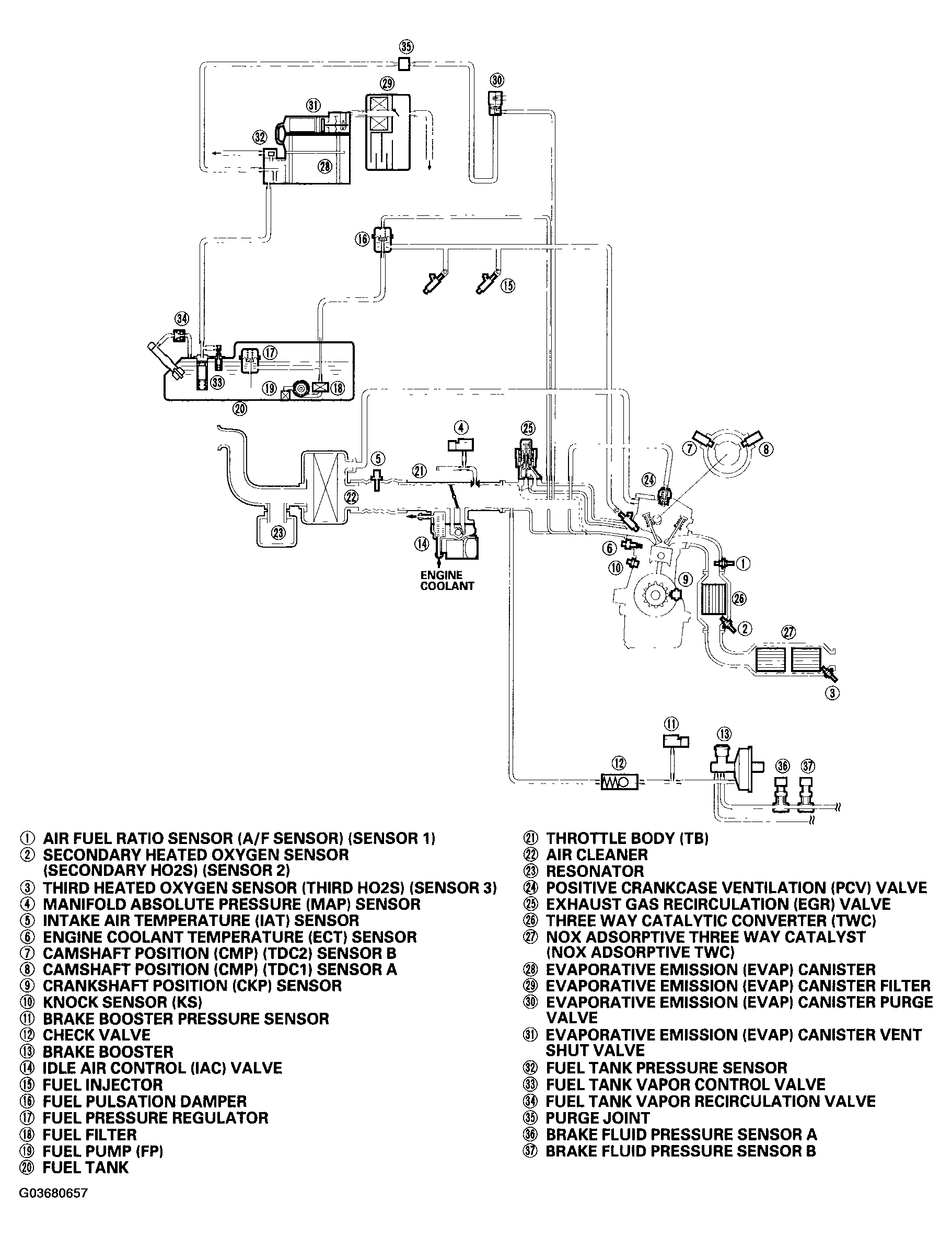

Fig 1: Identifying Vacuum Distribution (2006 M/T Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
