Exploded View: Notes

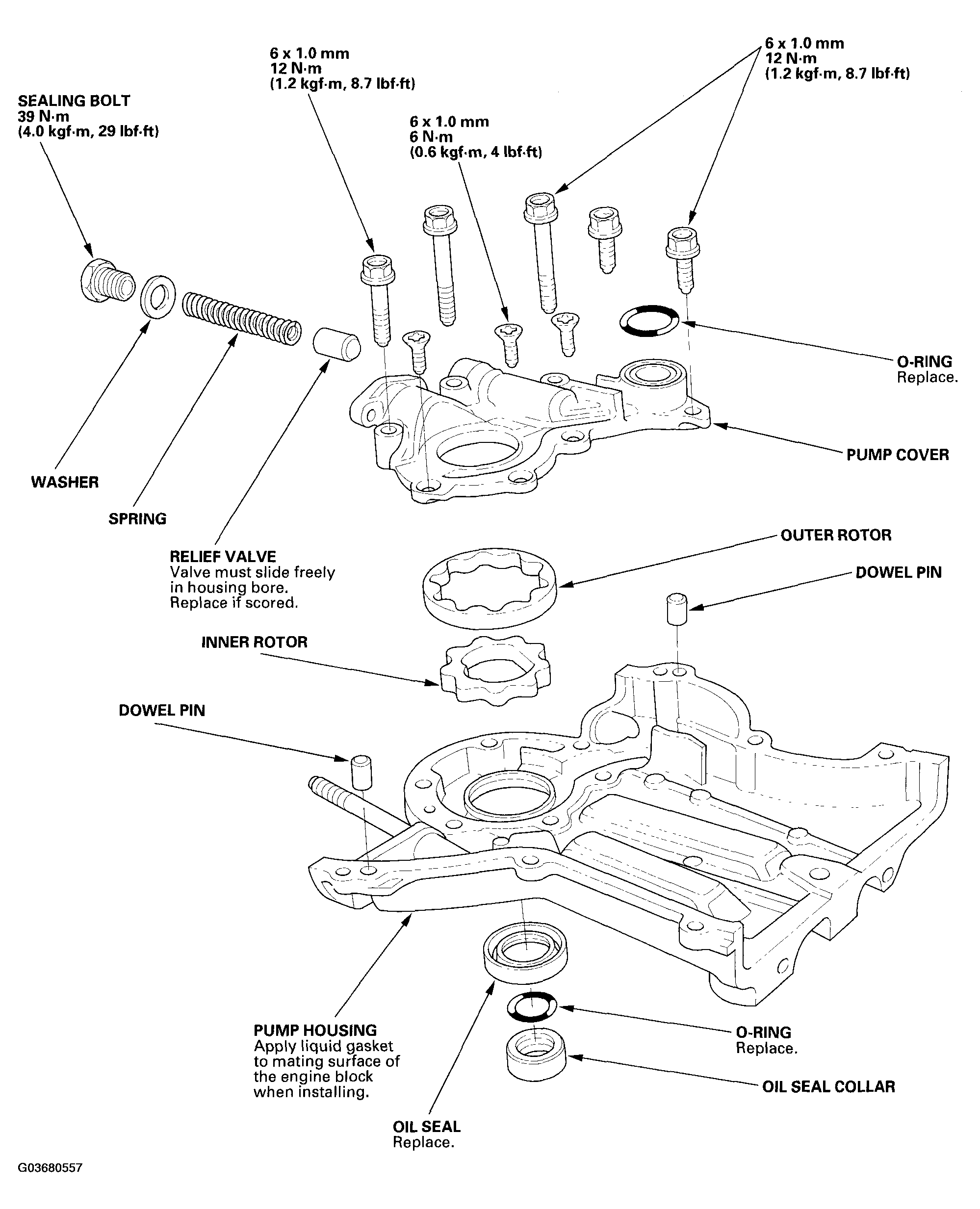

Fig 1: Exploded View Of Oil Pump

G03680557

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

Driver 07749-0010000
Attachment, 52 x 55 mm 07746-0010400
