CKP Pulse Plate Replacement

  1. Remove the cam chain (see CAM CHAIN REMOVAL ).
  2. Remove the crankshaft sprocket.
  3. Remove the tensioner arm (A) and timing chain guide (B).
  4. Remove the crankshaft pulse plate (C).

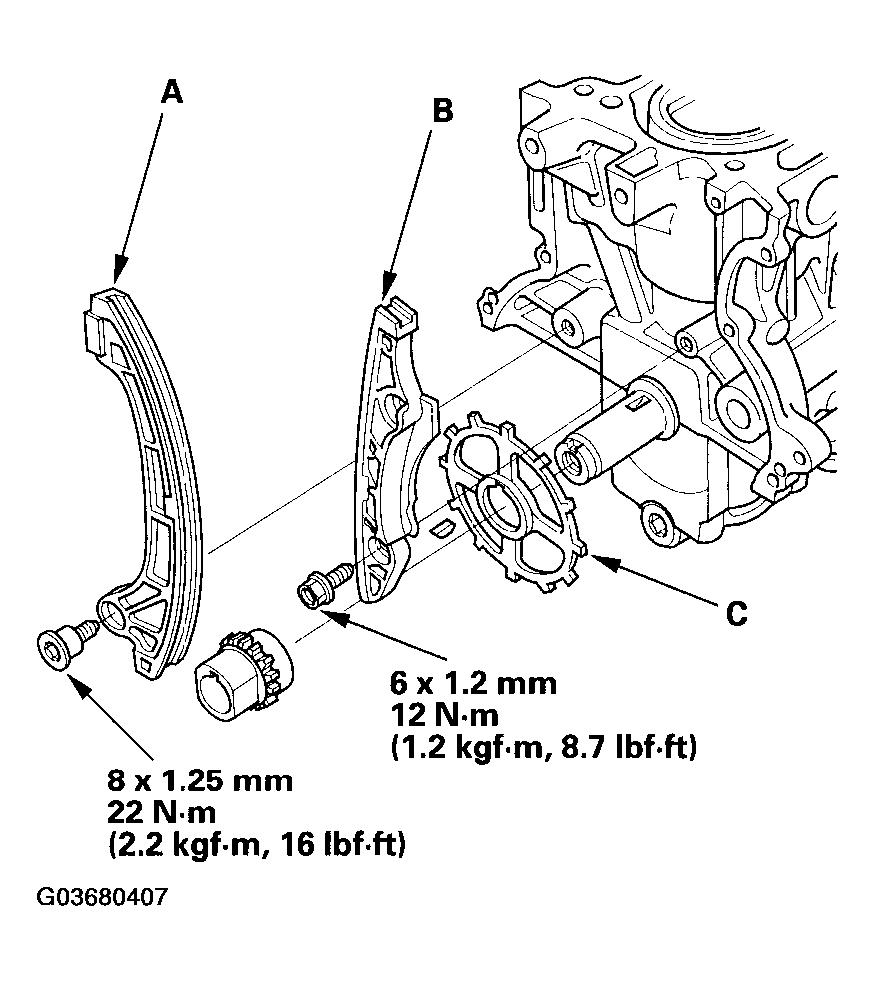

    Fig 1: Removing Crankshaft Pulse Plate And Torque Specifications
    G03680407Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Install the crankshaft pulse plate (C).
  6. Install the tensioner arm (A) and timing chain guide (B).
  7. Install the cam chain (see CAM CHAIN INSTALLATION ).
