CMP Sensor A/B (TDC Sensor 1/2) Replacement

  1. Disconnect connectors from the camshaft position (CMP) sensor A (on the intake side) and CMP sensor B (on the exhaust side). Remove the CMP sensor A and the CMP sensor B.

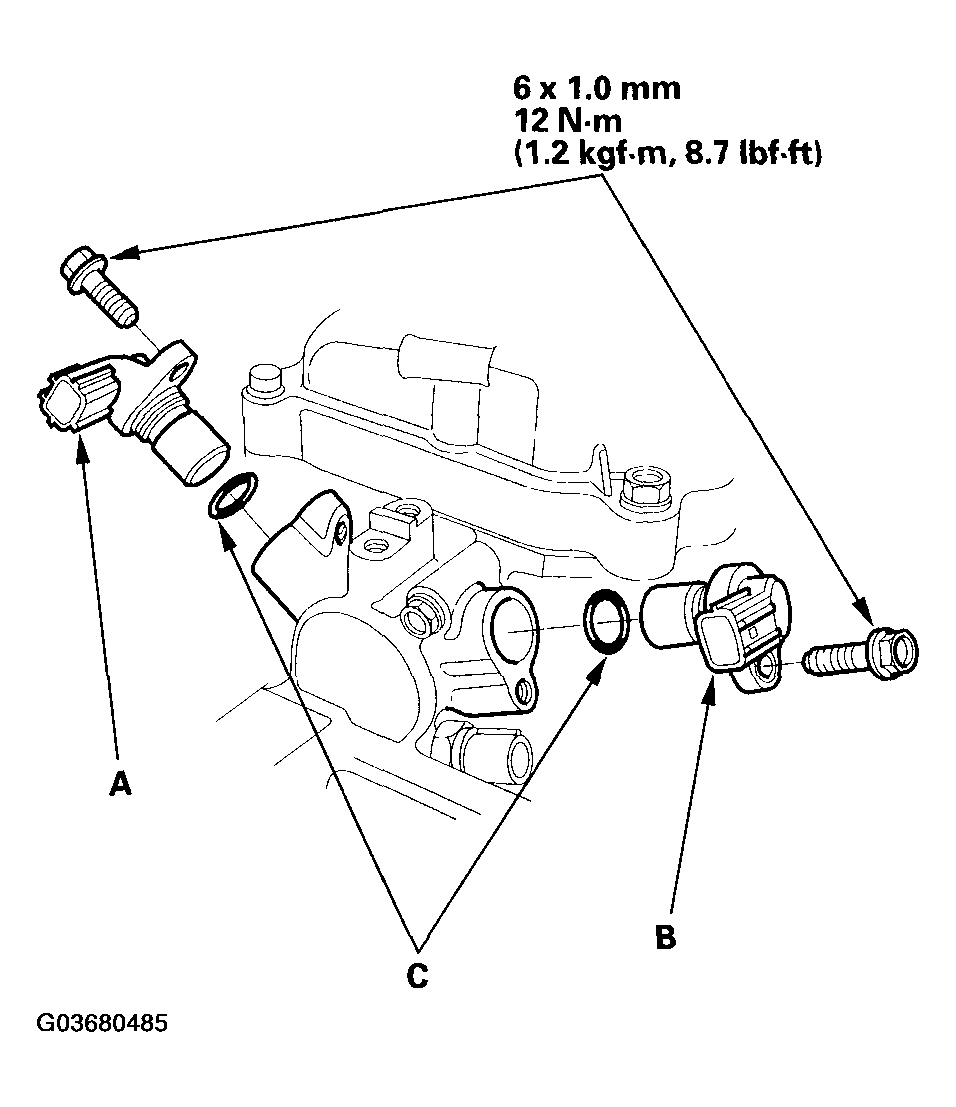

    Fig 1: Disconnecting Connectors From Camshaft Position (CMP) Sensor
    G03680485Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the CMP sensor A and the CMP sensor B with new O-rings (C).
