Component Location Index

Fig 1: Identifying Cylinder Head Components (1 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Identifying Cylinder Head Components (2 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

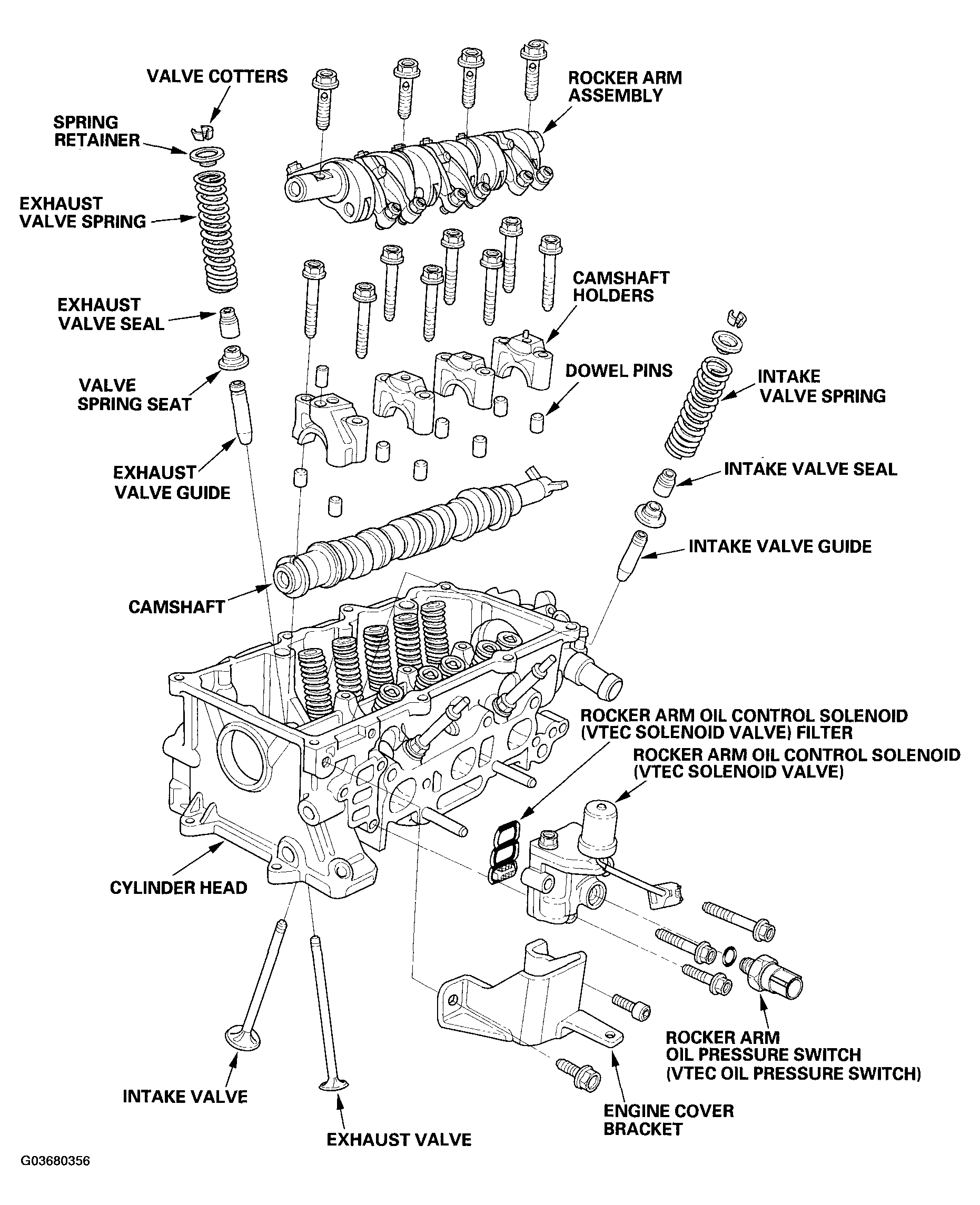

Fig 3: Identifying Cylinder Head Components (3 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
