ECM Electrical Connections-2005-2006 Models

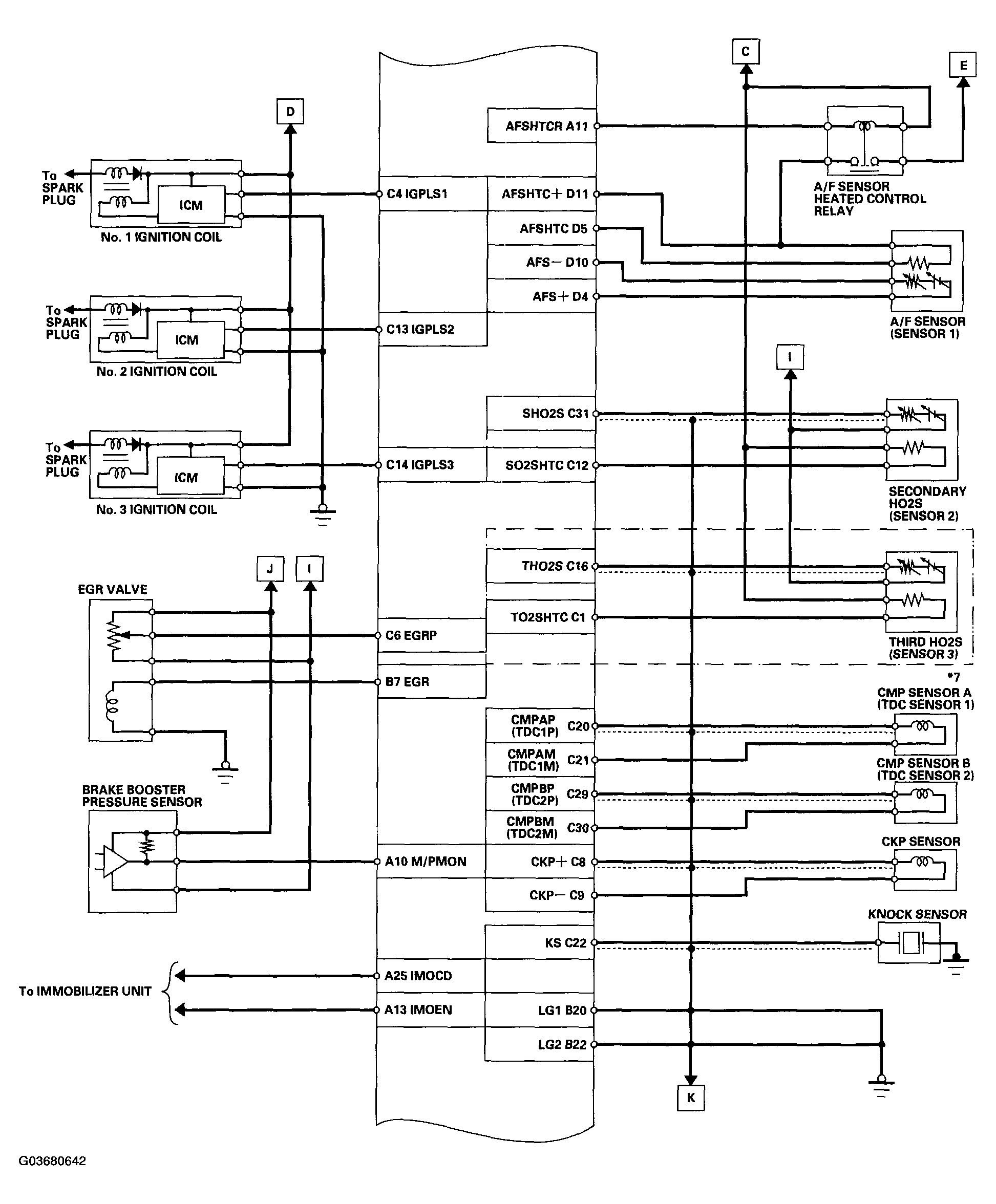

Fig 1: ECM Electrical Connections Description (2005-2006 Models) (1 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

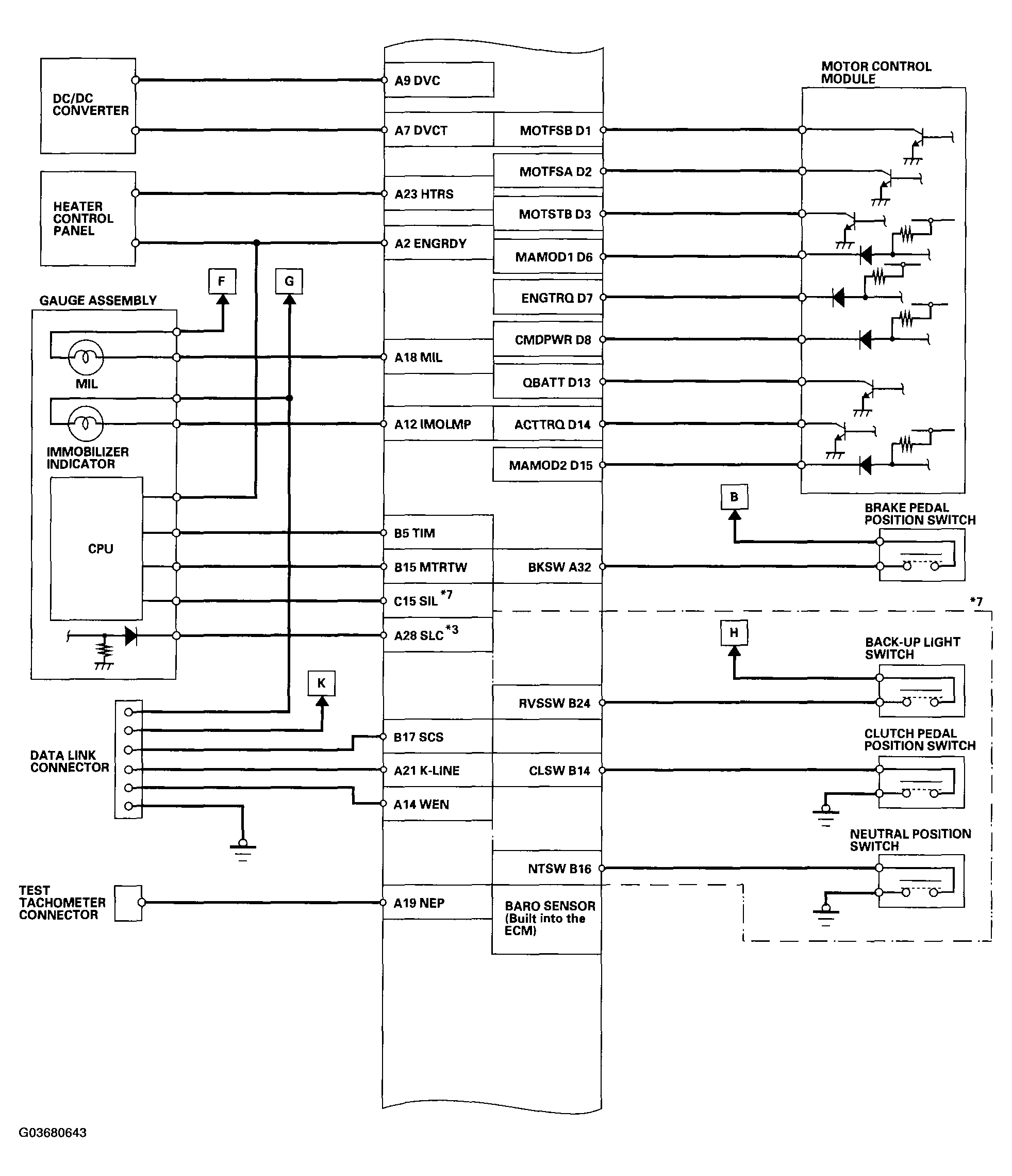

Fig 2: ECM Electrical Connections Description (2005-2006 Models) (2 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

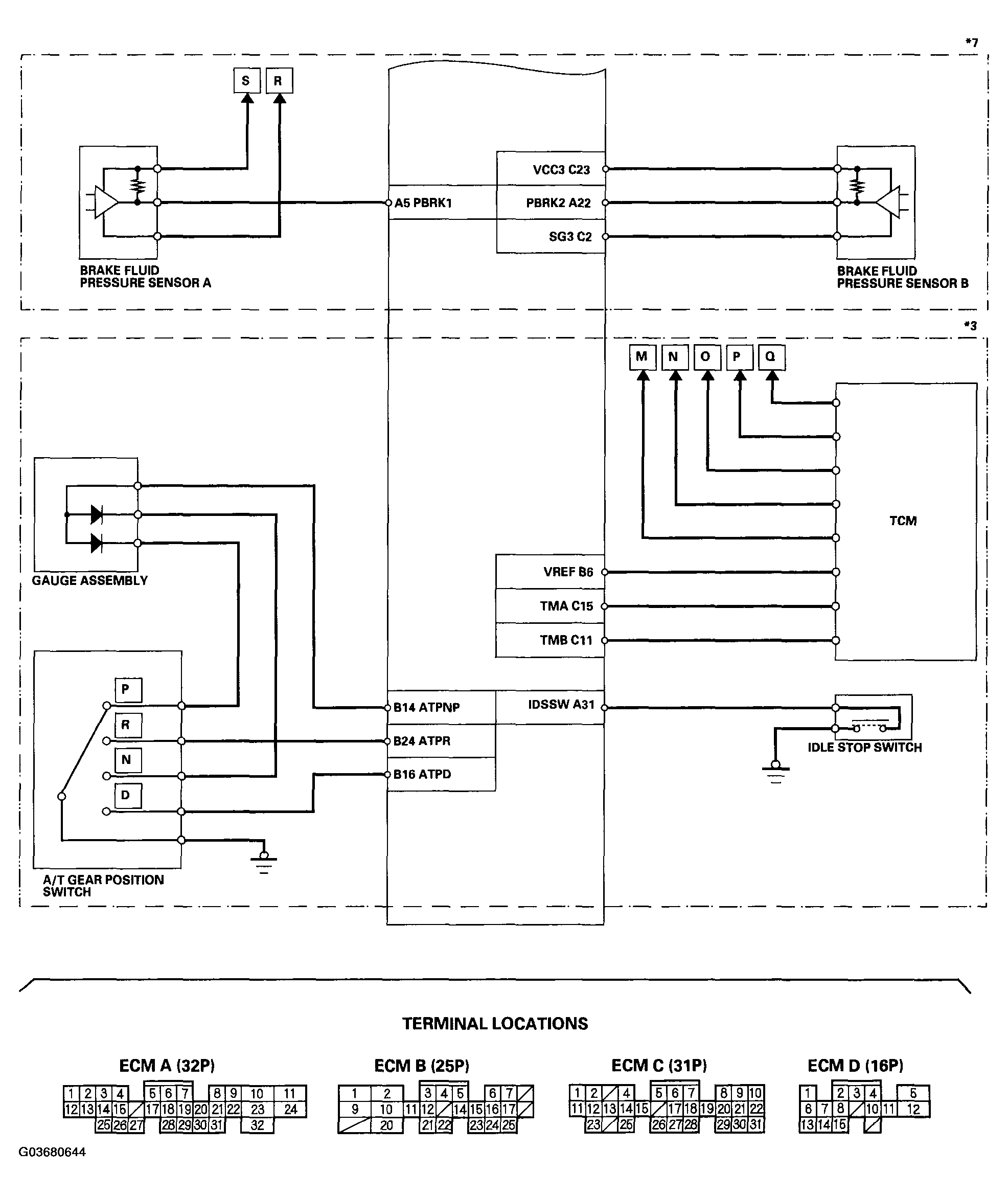

Fig 3: ECM Electrical Connections Description (2005-2006 Models) (3 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

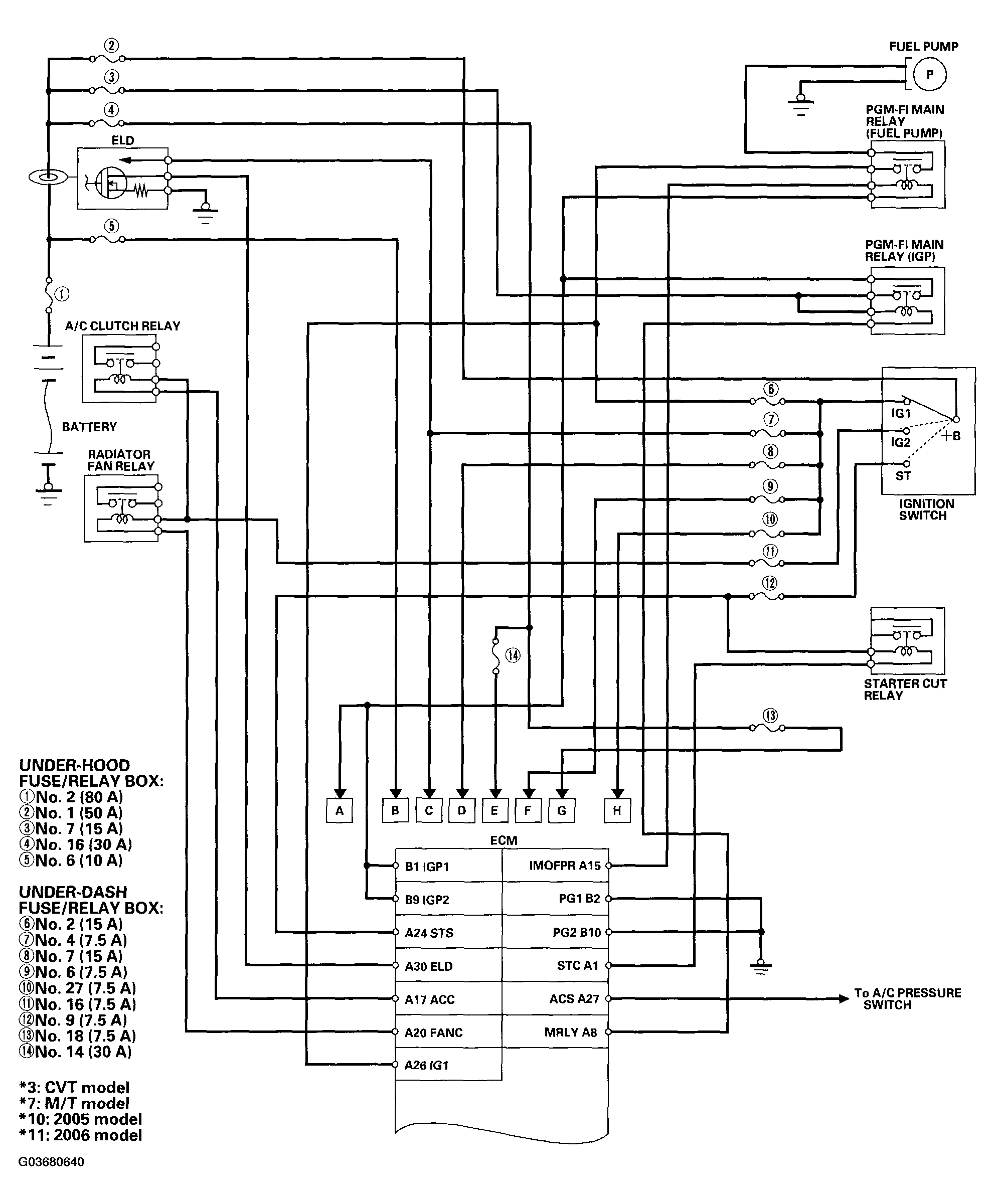

Fig 4: ECM Electrical Connections Description (2005-2006 Models) (4 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

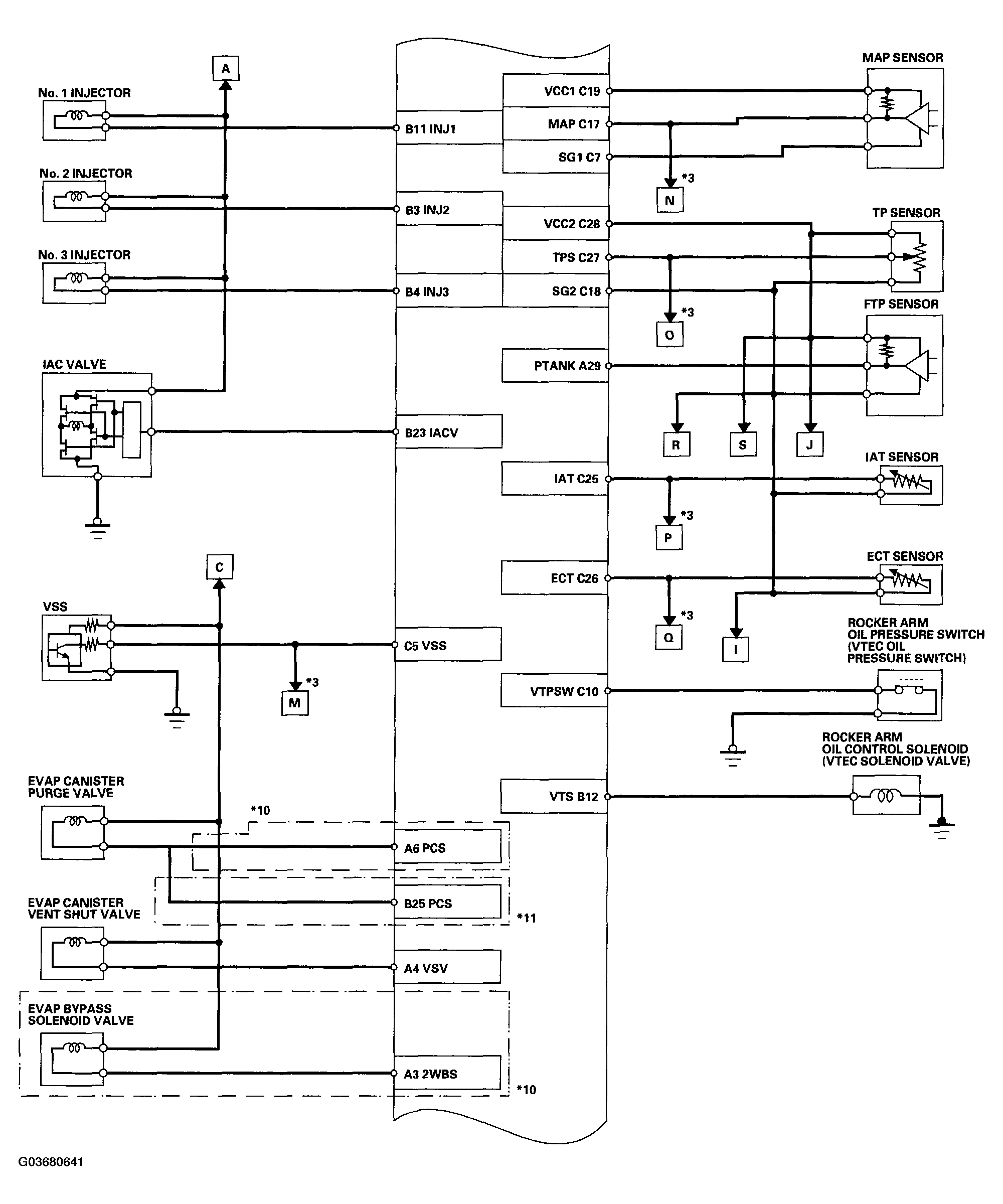

Fig 5: ECM Electrical Connections Description (2005-2006 Models) (5 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
