Fuel Line Inspection
›
2000-2005 CVT models
2000-2005 CVT models

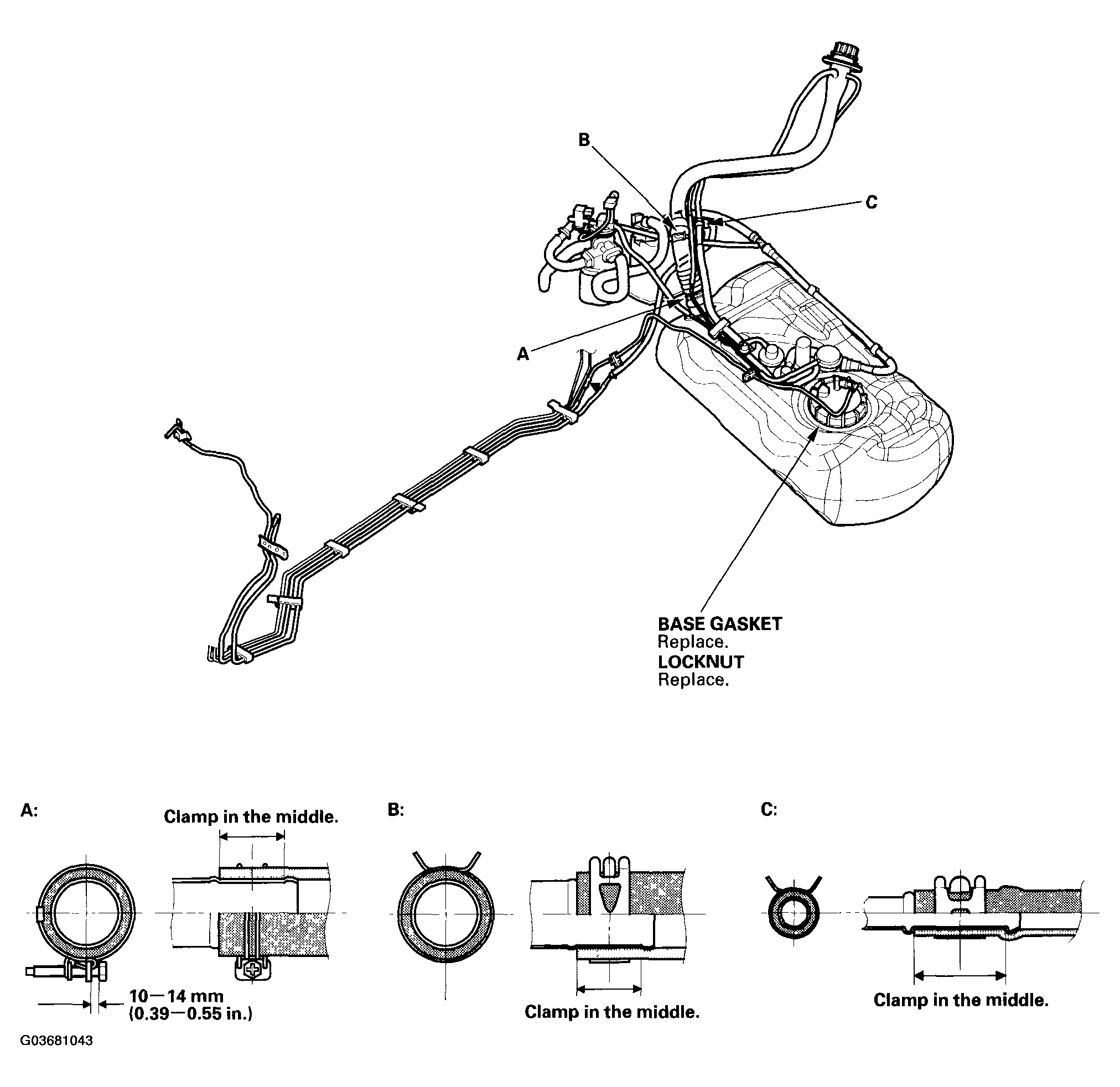

Fig 1: Checking Fuel System Lines All Hose Clamps (2000-2005 CVT Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
