Fuel Supply System
›
Fuel Line Inspection
›
2000-2005 M/T models
2000-2005 M/T models

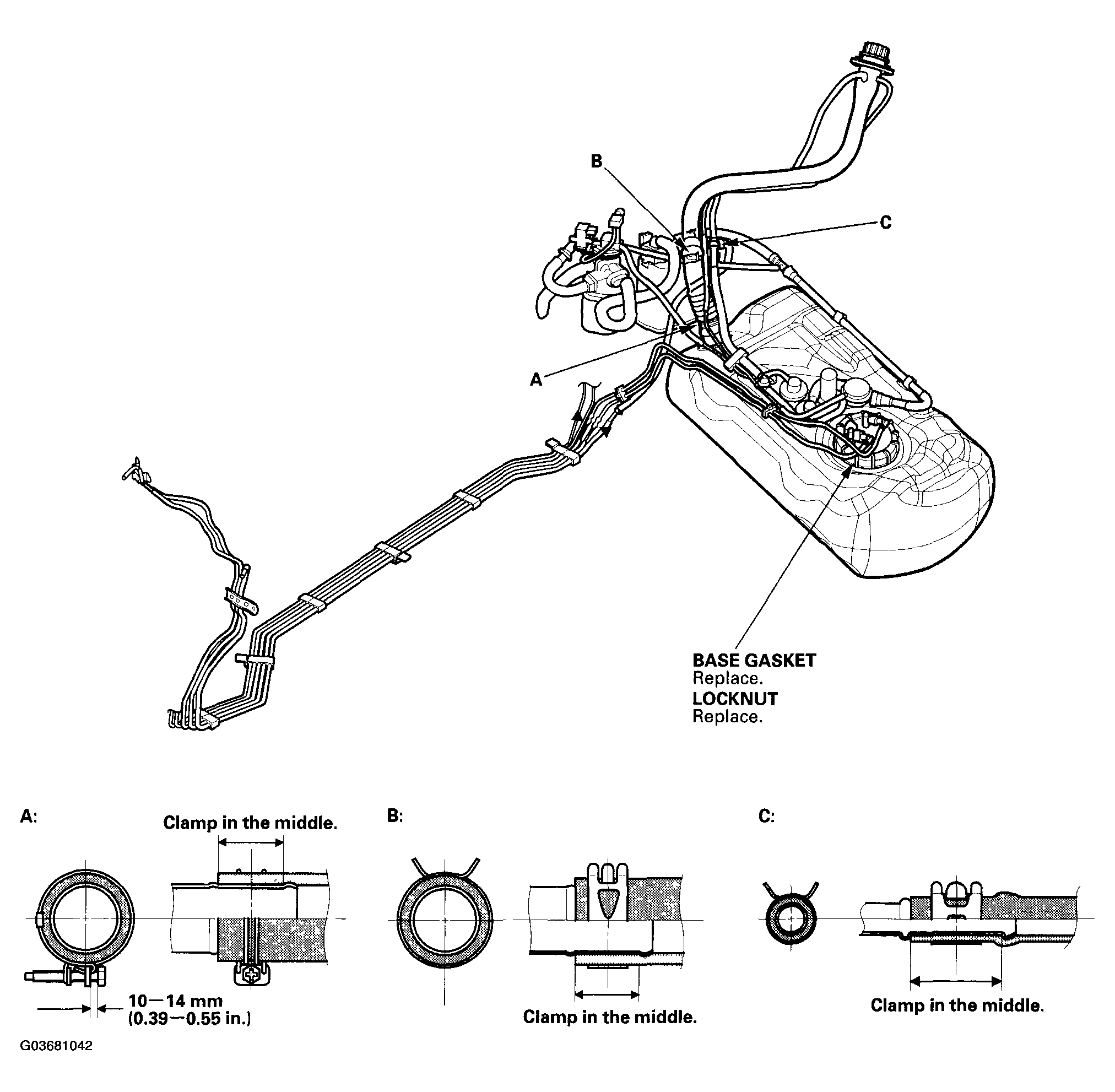

Fig 1: Checking Fuel System Lines All Hose Clamps (2000-2005 M/T Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
