WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 Honda Insight, 2005 Honda Insight, 2004 Honda Insight, 2003 Honda Insight, and 2002 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

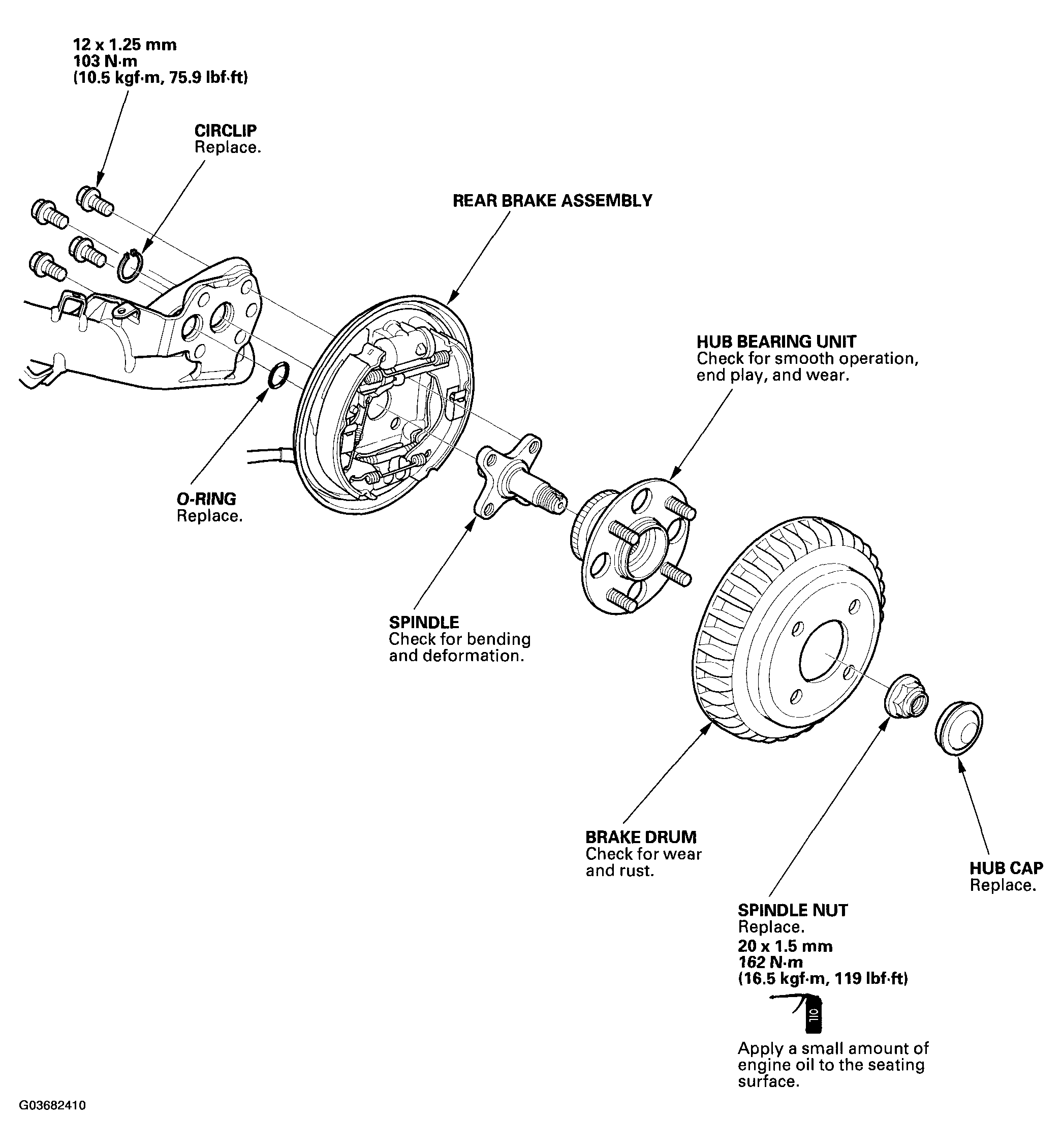

Fig 1: Exploded View Of Rear Suspension And Torque Specifications
G03682410Courtesy of AMERICAN HONDA MOTOR CO., INC.
NOTE: To avoid damage, do not strike aluminum parts with a metal hammer. If necessary, tap gently with a plastic-tipped hammer.
NOTE: Bolts and nuts with the * mark are special corrosion-resistant Dacro fasteners. Use the same type if replacement is necessary.
  1. Raise the rear of the vehicle, and support it with safety stands in the proper locations (see SAFETY STANDS ).
  2. Remove the fender skirt (see REAR INNER FENDER REPLACEMENT ).

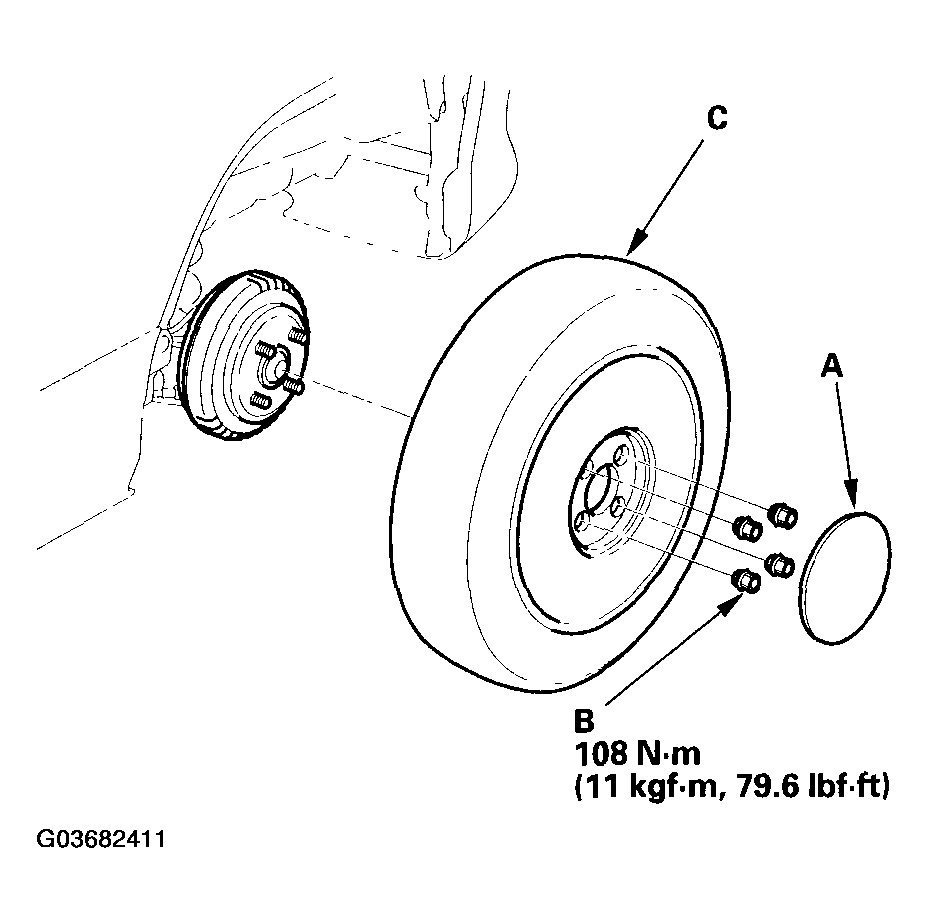

  3. Remove the center cap (A), wheel nuts (B), and rear wheel (C).
    Fig 2: Removing Center Cap, Wheel Nuts And Rear Wheel With Specified Torques
    G03682411Courtesy of AMERICAN HONDA MOTOR CO., INC.

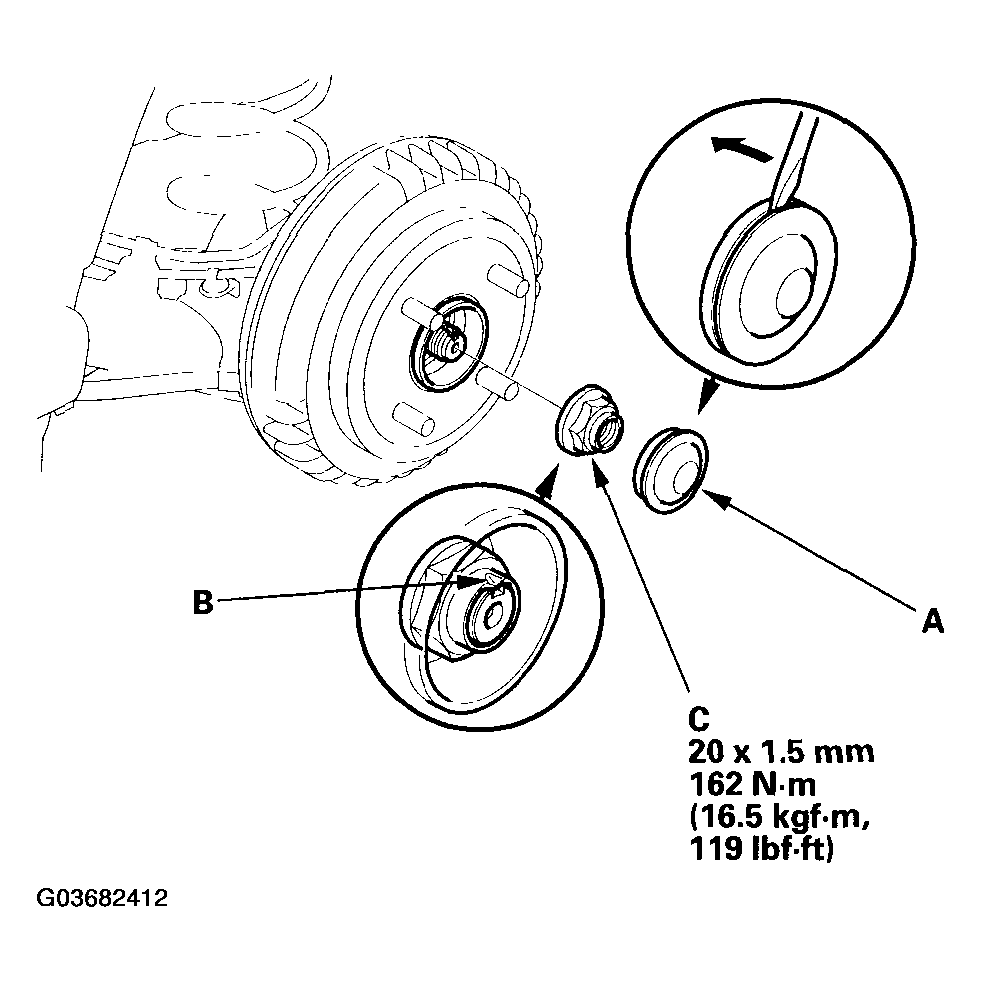

  4. Remove the hub cap (A), raise the stake (B), and remove the spindle nut (C).
    Fig 3: Removing Hub Cap, Raise Stake And Spindle Nut With Specified Torques
    G03682412Courtesy of AMERICAN HONDA MOTOR CO., INC.

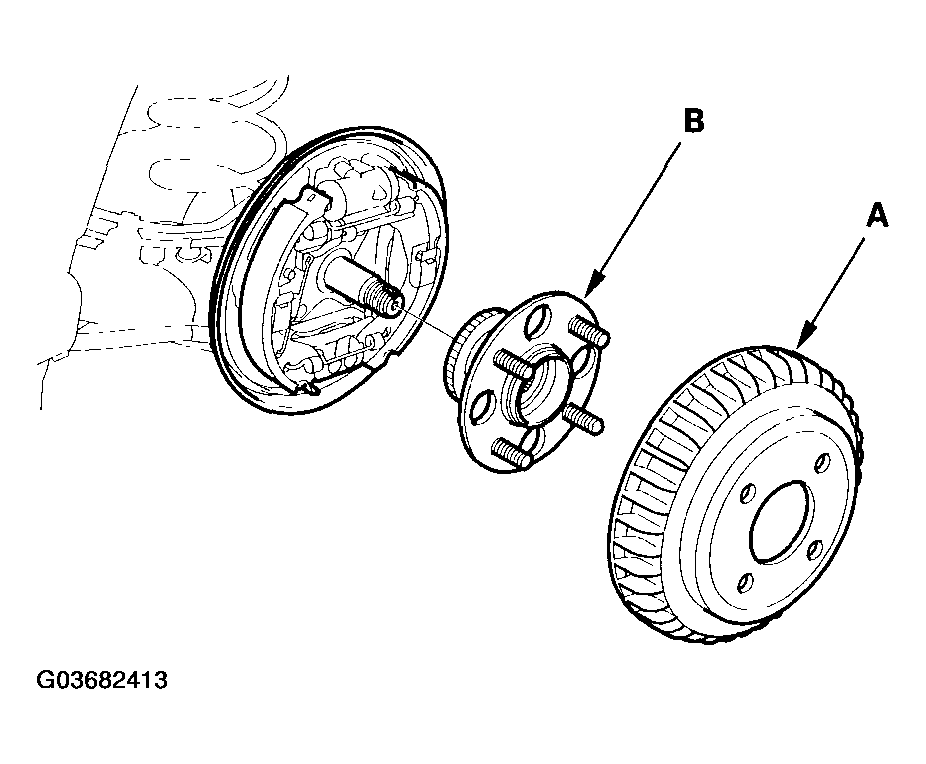

  5. Remove the brake drum (A), and remove the hub bearing unit (B) from the spindle. If the brake drum is stuck to the hub bearing unit, remove them together as an assembly. Do not tap on the aluminum brake drum.
    Fig 4: Removing Brake Drum And Hub Bearing Unit From Spindle
    G03682413Courtesy of AMERICAN HONDA MOTOR CO., INC.

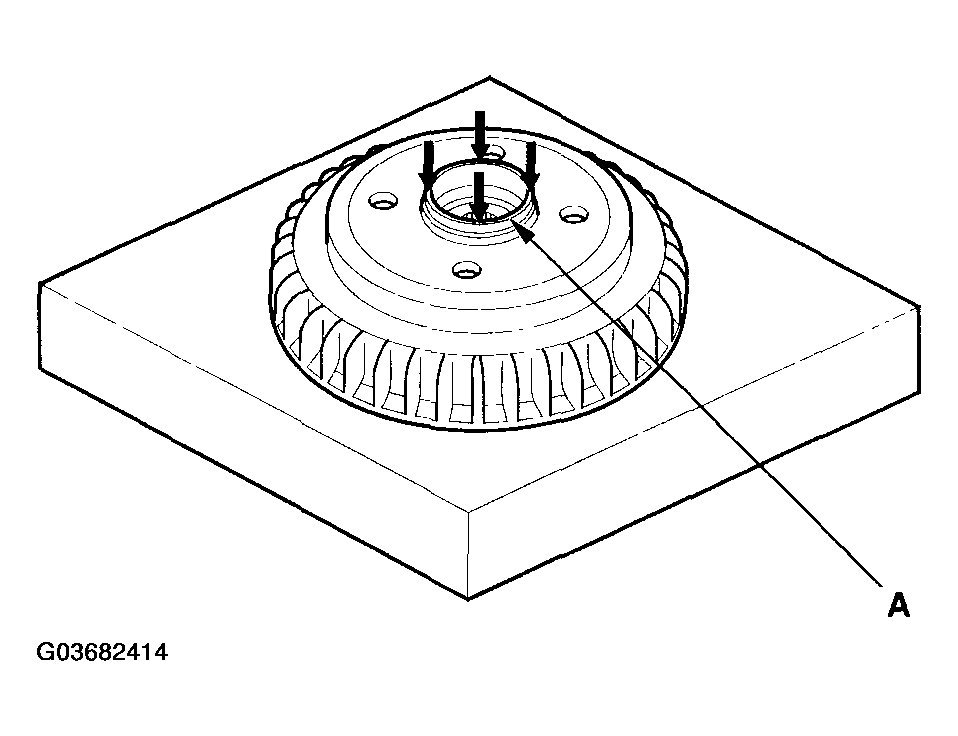

  6. If the hub bearing unit has been removed together with the brake drum, separate these by placing the brake drum on a flat surface, and lightly tapping the hub flange (A) with a plastic hammer.
    Fig 5: Identifying Hub Flange With Plastic Hammer
    G03682414Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Install the hub bearing unit in the reverse order of removal, and note these items:
    • Use a new spindle nut on reassembly.
    • Before installing the new spindle nut, apply a small amount of engine oil to the seating surface of the nut. After tightening, use a drift to stake the spindle nut shoulder against the spindle.
    • Tighten all mounting hardware to the specified torque values.
    • Before installing the brake drum, clean the mating surface of the hub and the inside of the brake drum, and apply grease (Dow Corning Molykote M-77 assembly paste) to the inside circumference (A) of the center hole edge of the brake drum. Do not contaminate the brake drum sliding surface with grease.
    • Use a new hub cap on reassembly.
    • Before installing the wheel, clean the mating surface of the brake drum and the inside of the wheel.
    Fig 6: Installing Hub Bearing Unit
    G03682415Courtesy of AMERICAN HONDA MOTOR CO., INC.
