In-car Temperature Sensor Replacement

  1. Remove the in-car temperature sensor (A) from the dashboard, then disconnect the 2P connector (B) and the air hose (C). Be careful not to damage the sensor or the dashboard.

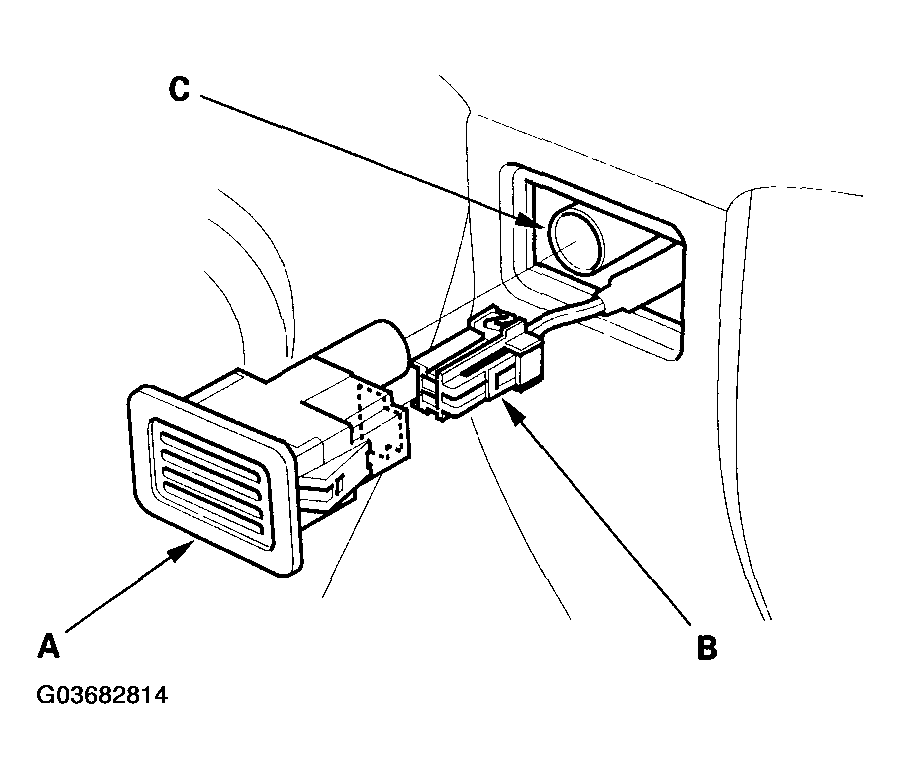

    Fig 1: Removing In-Car Temperature Sensor From Dashboard
    G03682814Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the sensor in the reverse order of removal. Be sure to connect the air hose securely.
