System Charging

CAUTION:
  • Air conditioning refrigerant or lubricant vapor can irritate your eyes, nose, or throat.
  • Be careful when connecting service equipment.
  • Do not breathe refrigerant or vapor.

Use only service equipment that is U.L.-listed and is certified to meet the requirements of SAE J2210 to remove HFC-134a (R-134a) from the air conditioning system.

If accidental system discharge occurs, ventilate work area before resuming service.

Additional health and safety information may be obtained from the refrigerant and lubricant manufacturers.

  1. Connect an R-134a refrigerant recovery/recycling/charging station (A) to the high-pressure service port (B) and the low-pressure service port (C), as shown in Fig 1, following the equipment manufacturer's instructions.

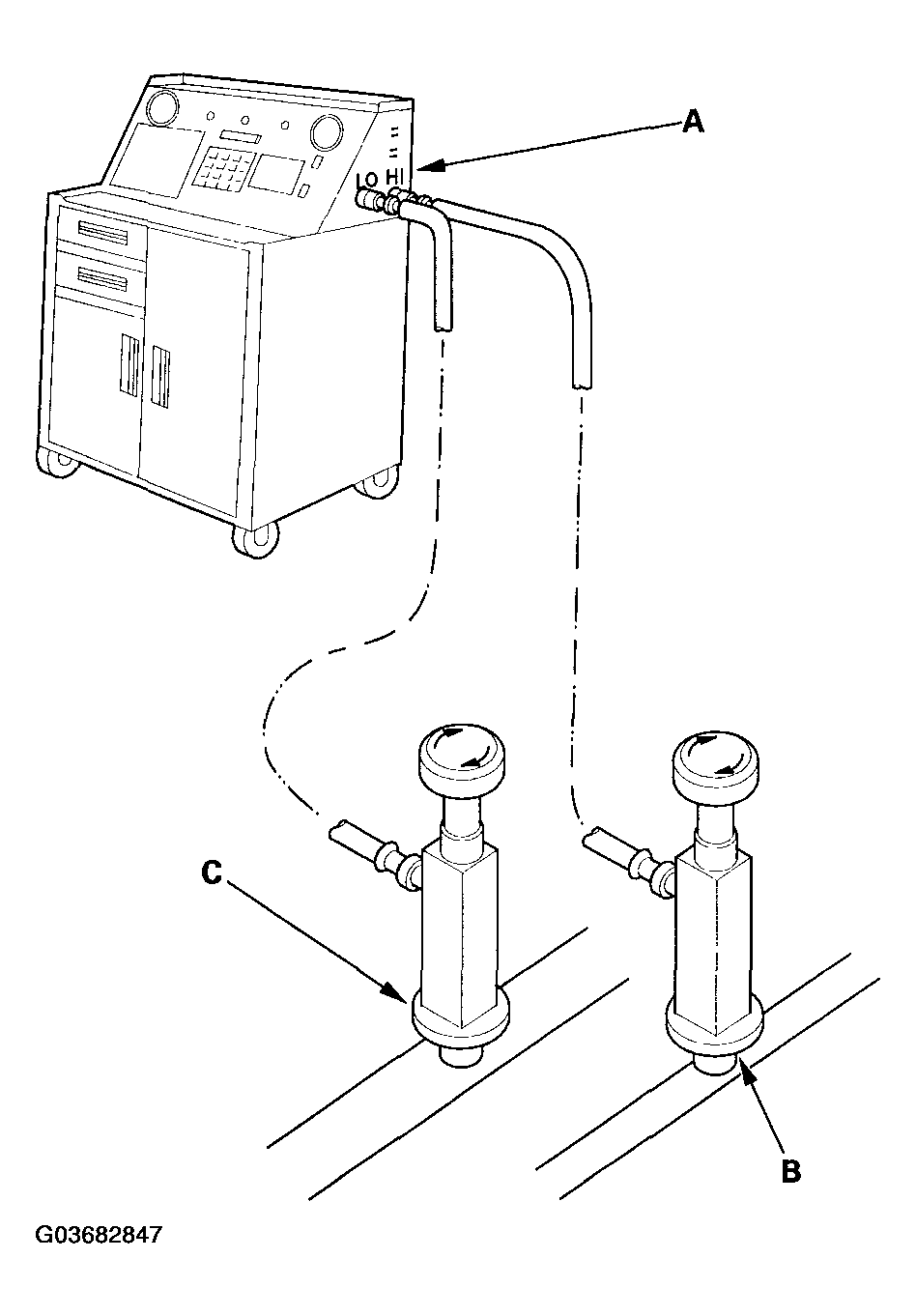

    Fig 1: Connecting R-134A Refrigerant Recovery/Recycling/Charging Station To High & Low Pressure Service Port
    G03682847Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Evacuate the system (see SYSTEM EVACUATION ).
  3. Add the same amount of new refrigerant oil to the system that was removed during recovery. Use only SANDEN SP-10 refrigerant oil.
  4. Charge the system with the specified amount of R-134a refrigerant. Do not overcharge the system; the A/C compressor will be damaged.

    Select the appropriate units of measure for your refrigerant charging station.

    Refrigerant Capacity:

    • 500 to 550 g
    • 0.50 to 0.55 kg
    • 1.1 to 1.2 lbs
    • 17.6 to 19.4 oz
  5. Check for refrigerant leaks (see REFRIGERANT LEAK TEST ).
  6. Check for system performance (see A/C SYSTEM TEST ).
