Climate Control Unit Inputs and Outputs

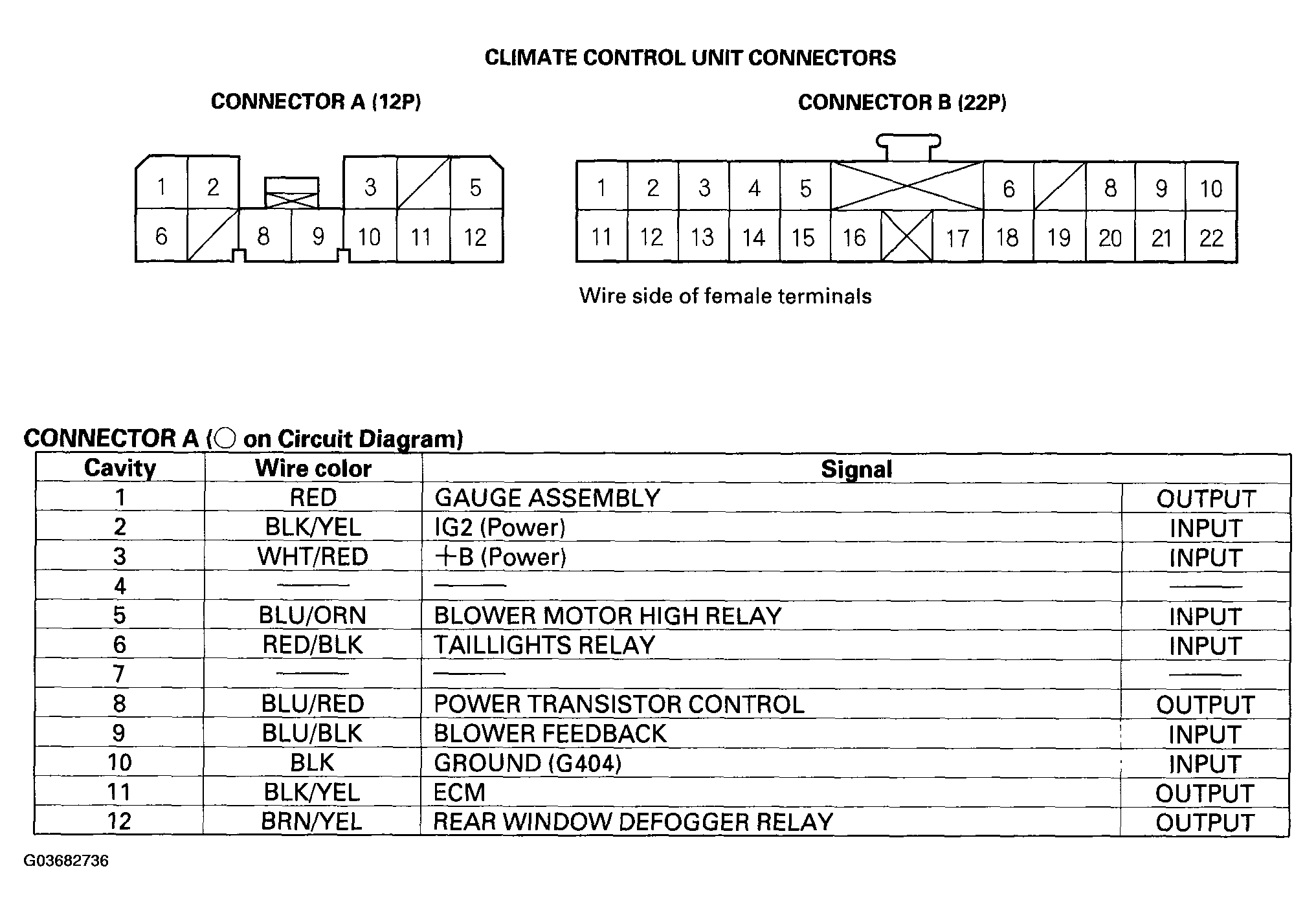

Fig 1: Identifying Climate Control Unit Inputs And Outputs (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

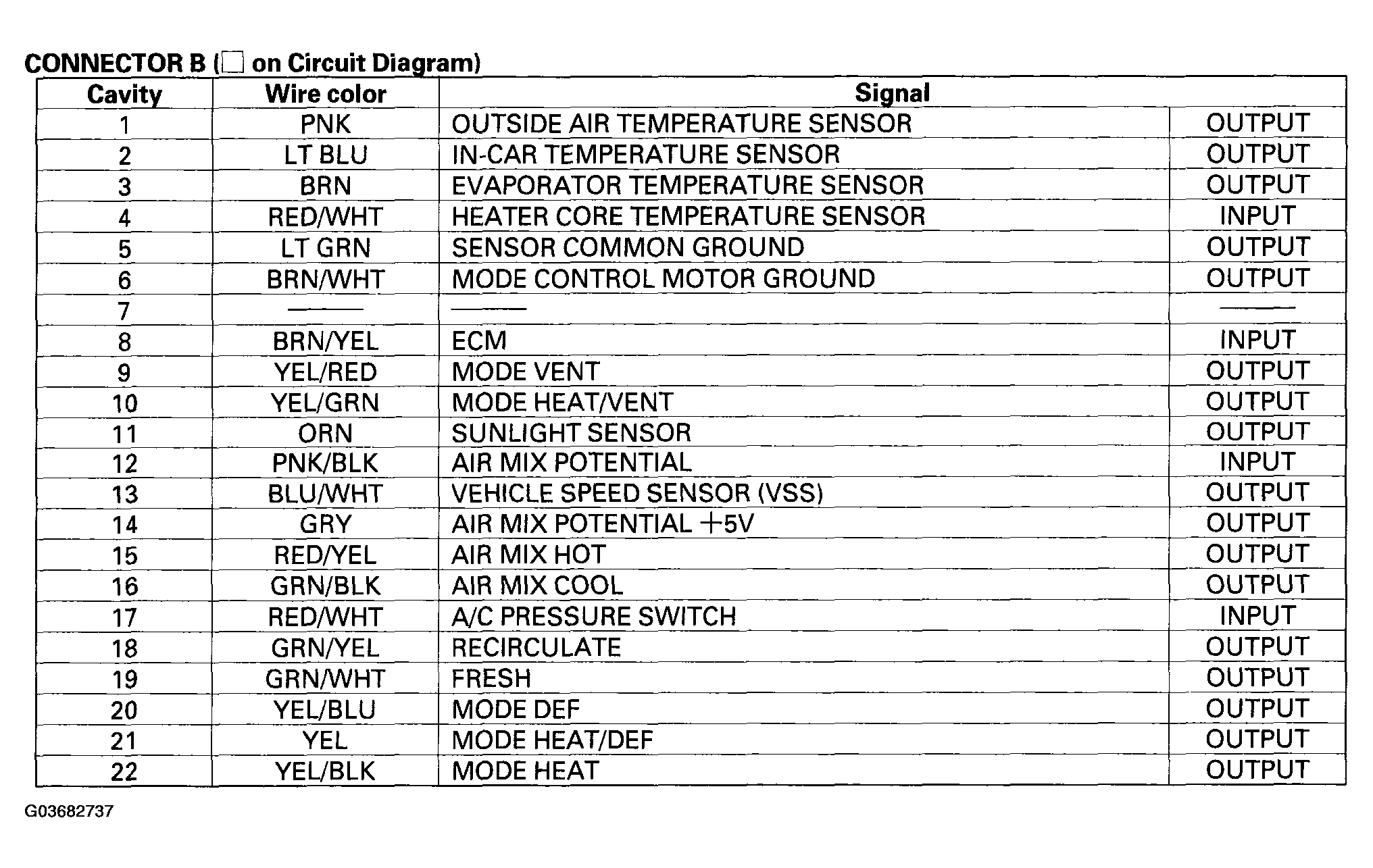

Fig 2: Identifying Climate Control Unit Inputs And Outputs (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
