Air Mix Control Motor Replacement

Disconnect the 5P connector (A) from the air mix control motor (B). Remove the self-tapping screws, the air mix control motor and the flange collar (C) from the heater unit.

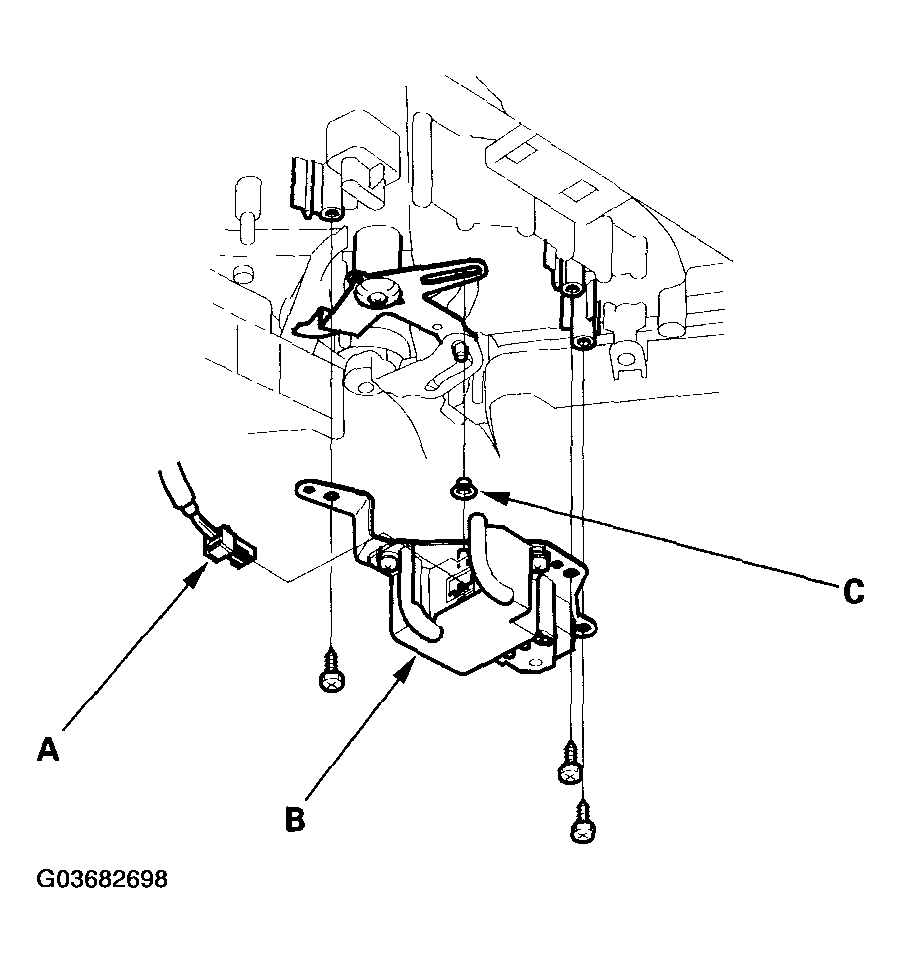

Fig 1: Disconnecting 5P Connector From Air Mix Control Motor And Removing Self-Tapping Screws, Air Mix Control Motor And Flange Collar
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the motor in the reverse order of removal. Make sure the pin on the motor is properly engaged with the linkage. After installation, make sure the motor runs smoothly.
