Heater Unit/Core Replacement

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ), and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before performing repair or service.

1. Make sure you have the anti-theft codes for the radio, then write down the frequencies for the radio's preset buttons.
2. Disconnect the negative cable from the battery.
3. From under the hood, open the cable clamp (A), then disconnect the heater valve cable (B) from the heater valve arm (C). Turn the heater valve arm to the fully opened position as shown.

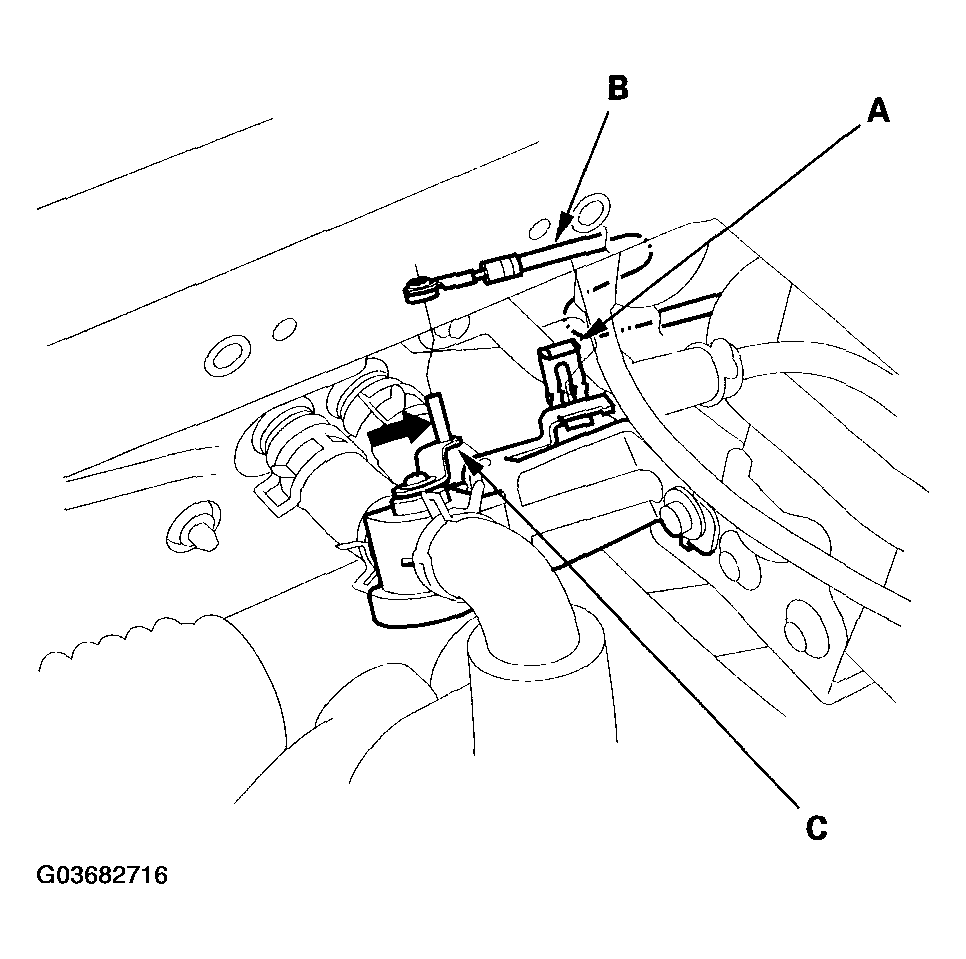

   Fig 1: Disconnecting Heater Valve Cable From Heater Valve Arm

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. When the engine is cool, drain the engine coolant from the radiator (see COOLANT REPLACEMENT ).
5. Remove the mounting bolt from the heater valve. Slide the hose clamps (A) back, then disconnect the inlet heater hose (B) and the outlet heater hose (C) from the heater unit. Engine coolant will run out when the hoses are disconnected; drain it into a clean drip pan. Be sure not to let coolant spill on the electrical parts or the painted surfaces. If any coolant spills, rinse it off immediately.

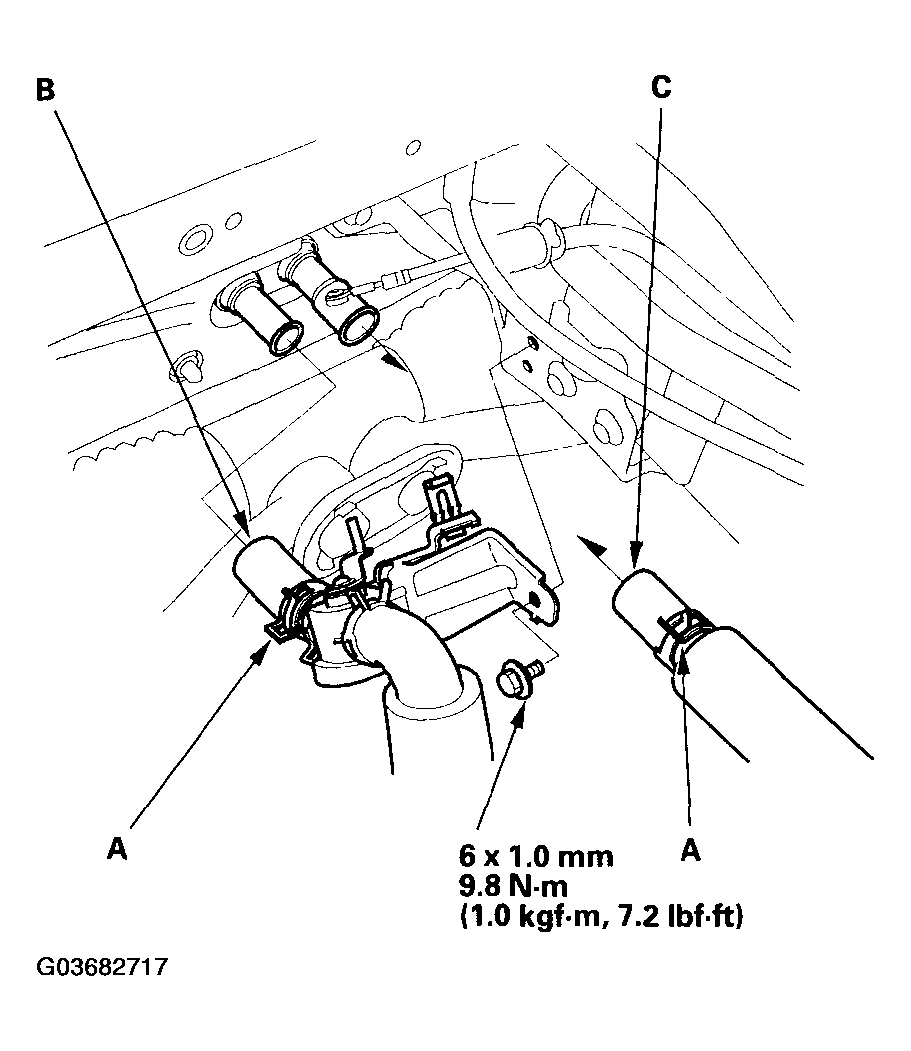

   Fig 2: Removing Mounting Bolt From Heater Valve And Torque Specifications

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
6. Remove the mounting nut from the heater unit. Take care not to damage or bend the fuel lines, the brake lines, etc.

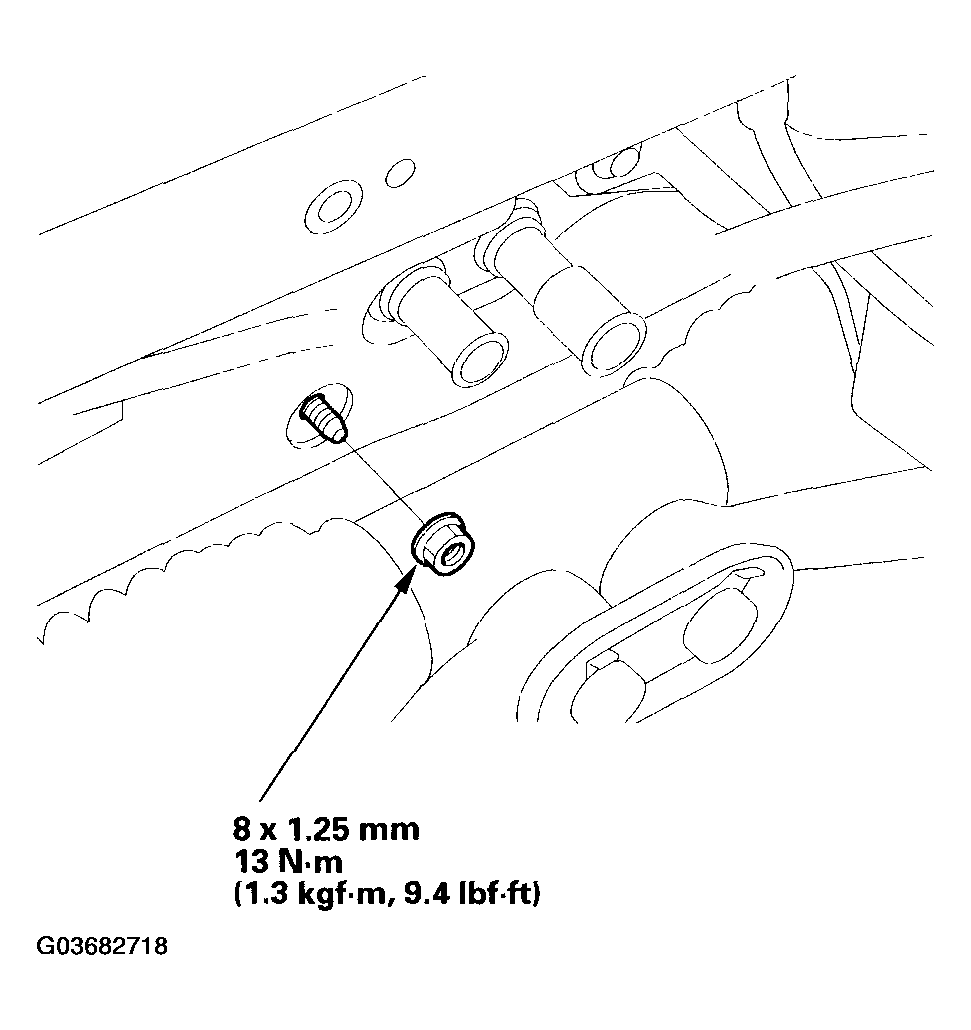

   Fig 3: Removing Mounting Nut From Heater Unit And Torque Specifications

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
7. Remove the dashboard (see DASHBOARD REMOVAL/INSTALLATION ).
8. With air conditioning remove the evaporator (see EVAPORATOR REMOVAL AND INSTALLATION ). Without air conditioning remove the heater duct (see HEATER DUCT REMOVAL AND INSTALLATION ).
9. Remove the mounting bolts in the following sequence, then remove the center bracket (A), knee bolster (B), and the hanger beam (C).

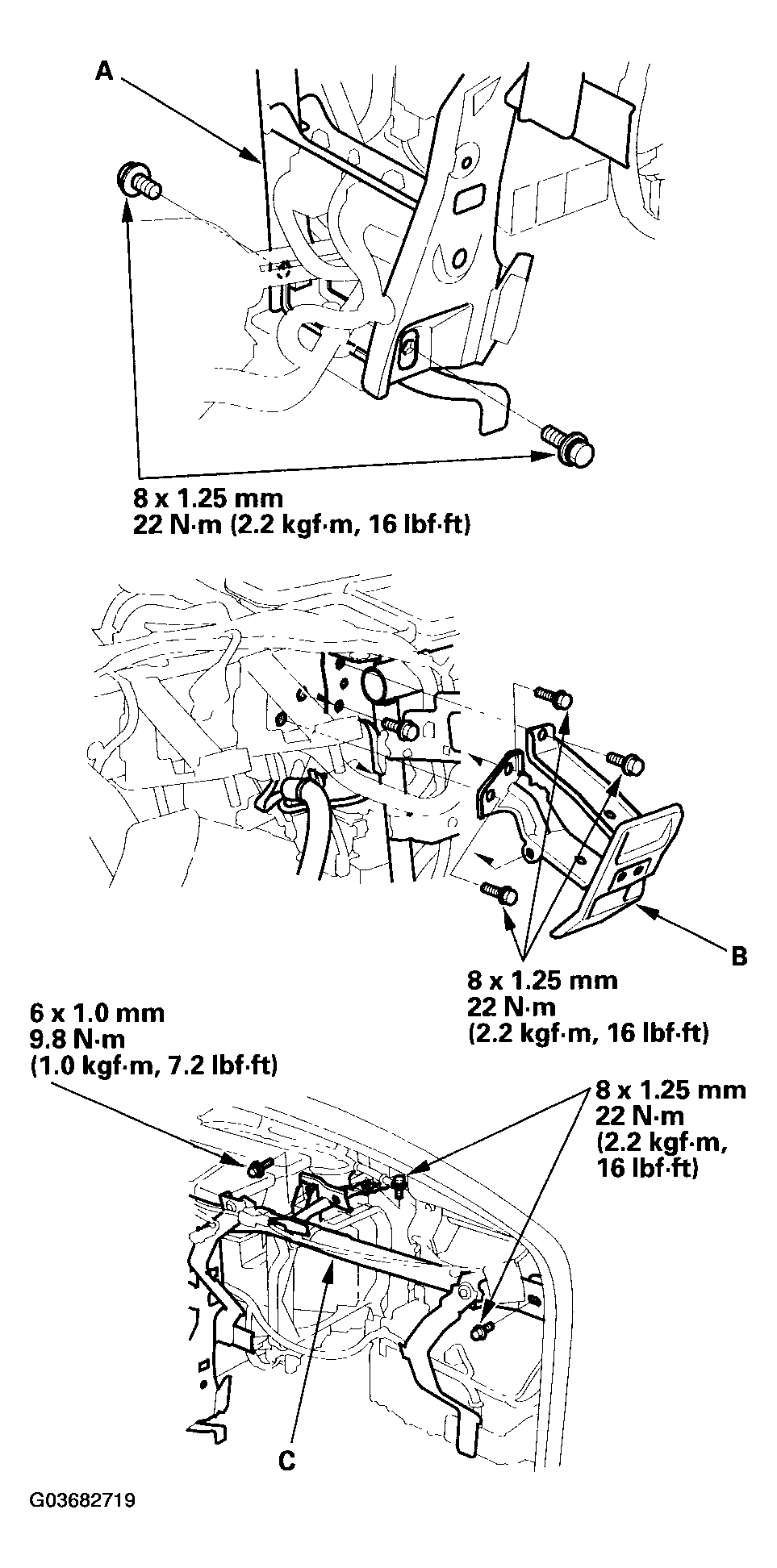

   Fig 4: Removing Center Bracket, Knee Bolster, And Hanger Beam In Following Sequence With Specified Torques

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
10. Disconnect the connectors (A) from the mode control motor and the air mix control motor, then remove the wire harness clips (B). Remove the mounting bolt and the heater unit (C).

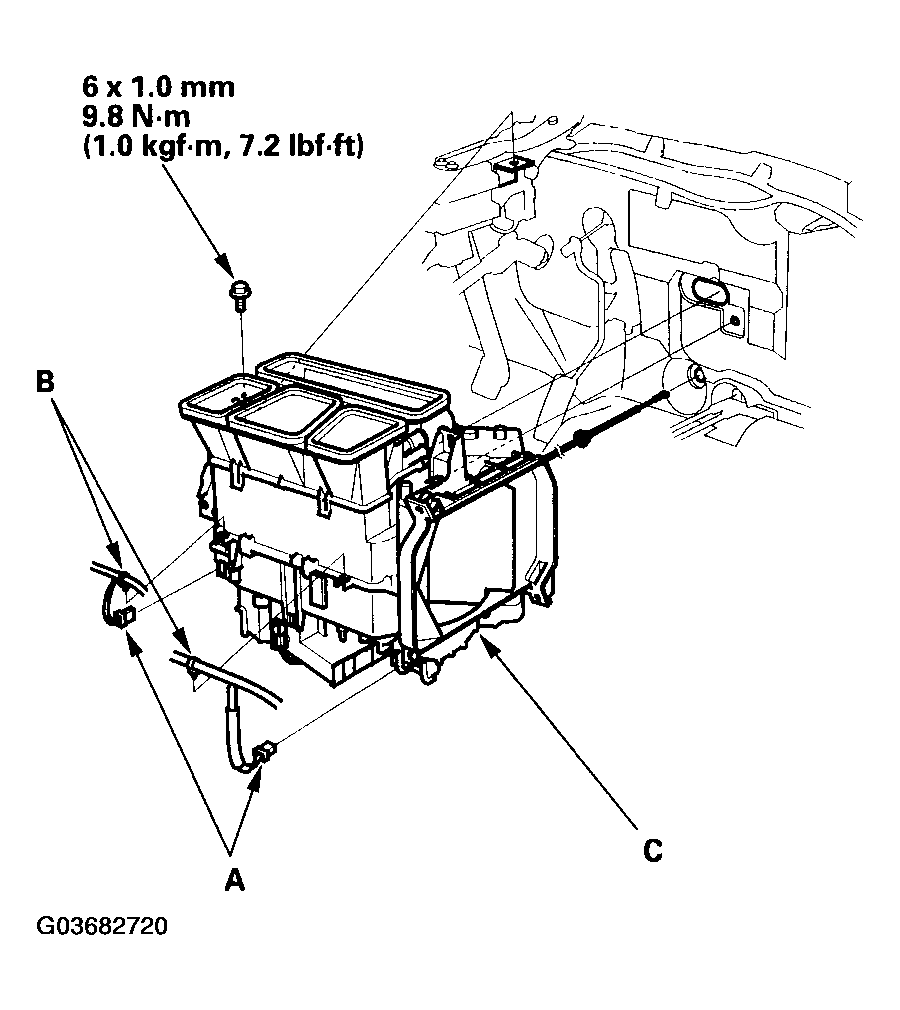

    Fig 5: Disconnecting Connectors From Mode Control Motor And Torque Specifications

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
11. Remove the clips (A), the sensor clamp (B), and the heater core temperature sensor (C). Remove the grommet (D), then remove the self-tapping screw and the pipe bracket (E). Remove the self-tapping screws and the core cover (F). While being careful not to bend the inlet and outlet pipes, pull out the heater core (G).

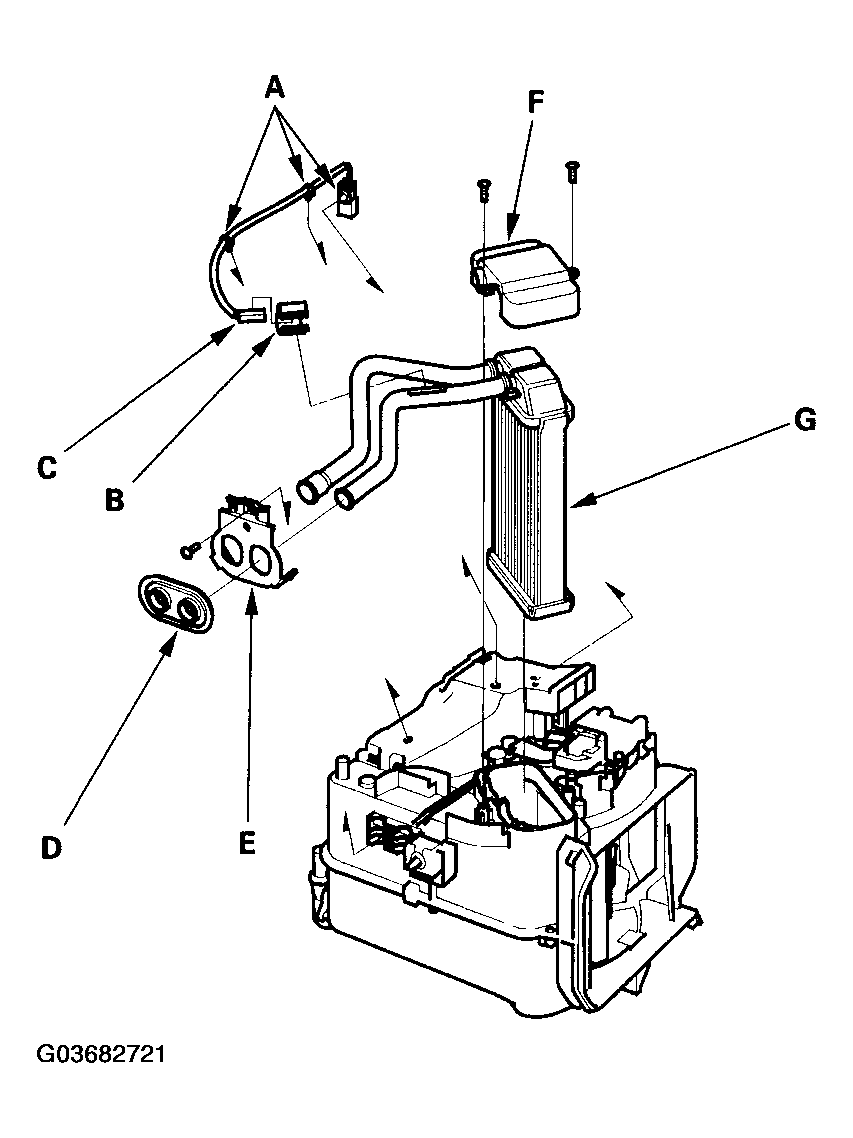

    Fig 6: Removing Clips, Sensor Clamp, And Heater Core Temperature Sensor

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
12. Install the heater core in the reverse order of removal. Install the heater core temperature sensor directly against the inlet pipe, and install the sensor clamp securely.
13. Remove the No. 15 EPS (40 A) fuse from the under-hood fuse/relay box.
14. If the IMA battery level gauge (BAT) displays no segments, start the engine, and hold it between 3,500 rpm and 4,000 rpm without load (in Park or neutral) until the BAT displays at least three segments.
15. Reinstall the No. 15 EPS (40 A) fuse from the under-hood fuse/relay box.
16. Install the heater unit in the reverse order of removal, and note these items:
    • Install the grommets of the heater core and the heater valve cable securely.
    • Do not interchange the inlet and outlet heater hoses, and install the hose clamps securely.
    • Refill the cooling system with engine coolant (see COOLANT REPLACEMENT ).
    • Adjust the heater valve cable (see HEATER VALVE CABLE ADJUSTMENT ).
    • Make sure that there is no coolant leakage.
    • Make sure that there is no air leakage.
    • For evaporator and A/C-related infomation, refer to evaporator removal and installation (see EVAPORATOR REMOVAL AND INSTALLATION ).
    • Do the ECM idle learn procedure (see ECM IDLE LEARN PROCEDURE ).
    • Enter the anti-theft codes for the radio, then enter the audio presets.
