Mode Control Motor Replacement

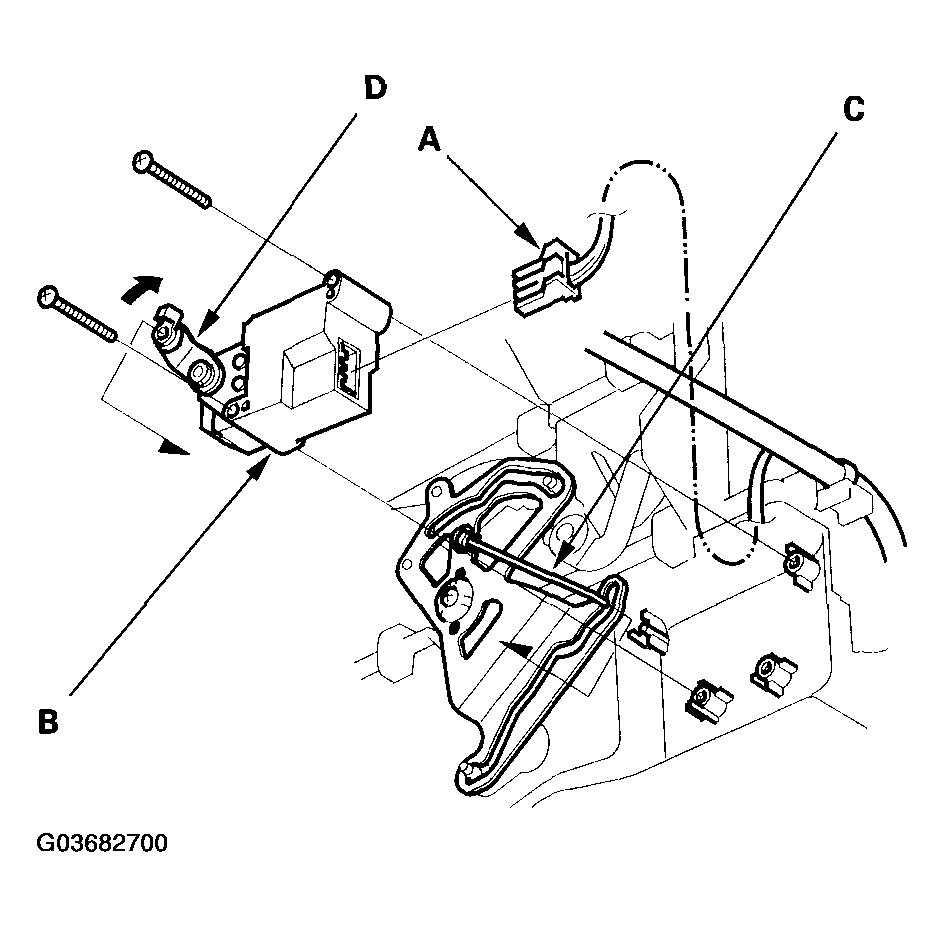

  1. Disconnect the 7P connector (A) from the mode control motor (B). Remove the rod (C) from the arm (D) of the mode control motor. Remove the self-tapping screws and the mode control motor from the heater unit.
    Fig 1: Disconnecting 7P Connector From Mode Control Motor
    G03682700Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the motor in the reverse order of removal. After installation, make sure the motor runs smoothly.
