Repair and Diagnosis
›
Heating, Ventilation & A/C (HVAC)
›
HVAC Control Systems
›
Heating System
›
System Description
›
Heater Control Panel Inputs and Outputs
Heater Control Panel Inputs and Outputs

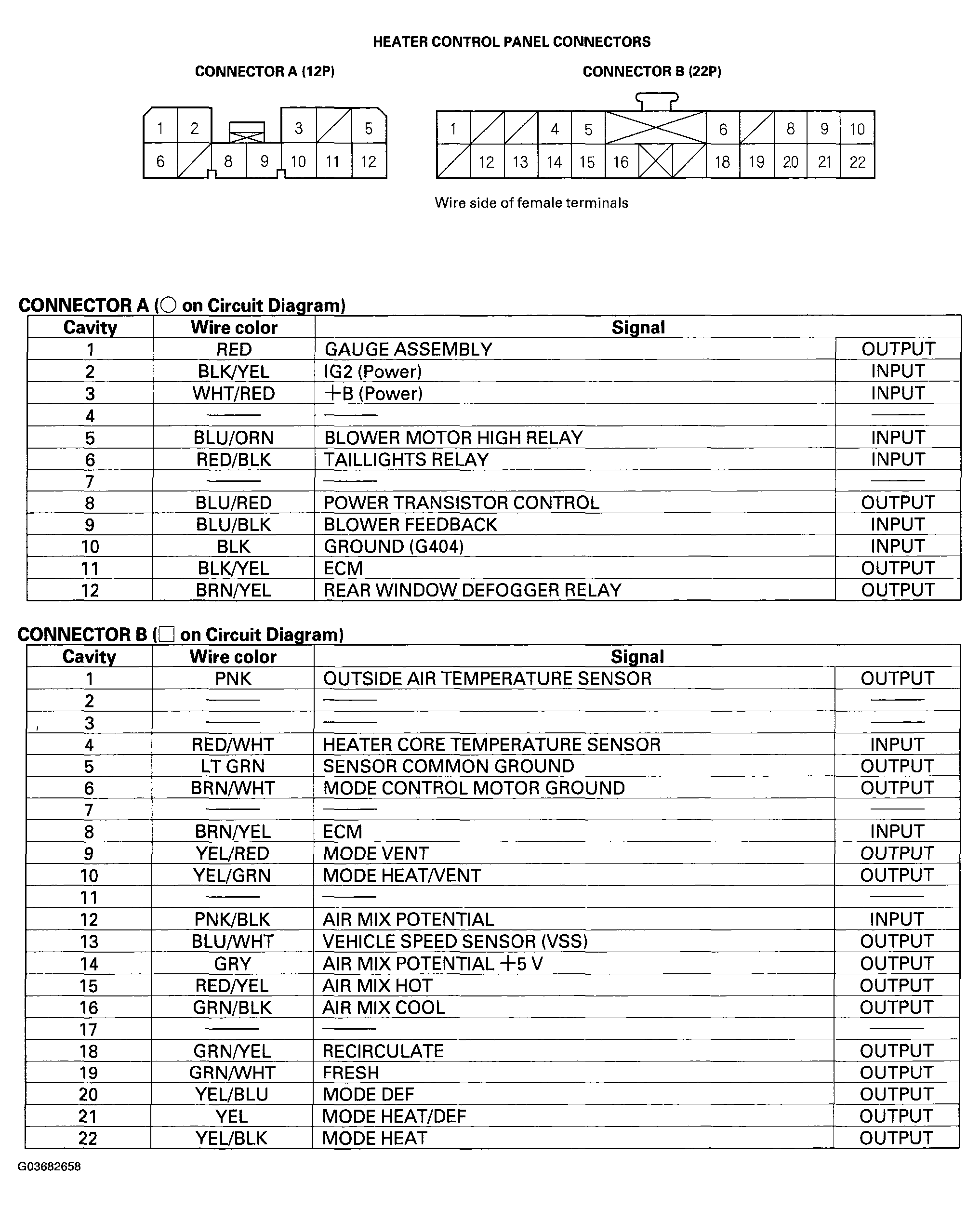

Fig 1: Identifying Heater Control Panel Inputs And Outputs Connectors
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
