Circuit Diagram

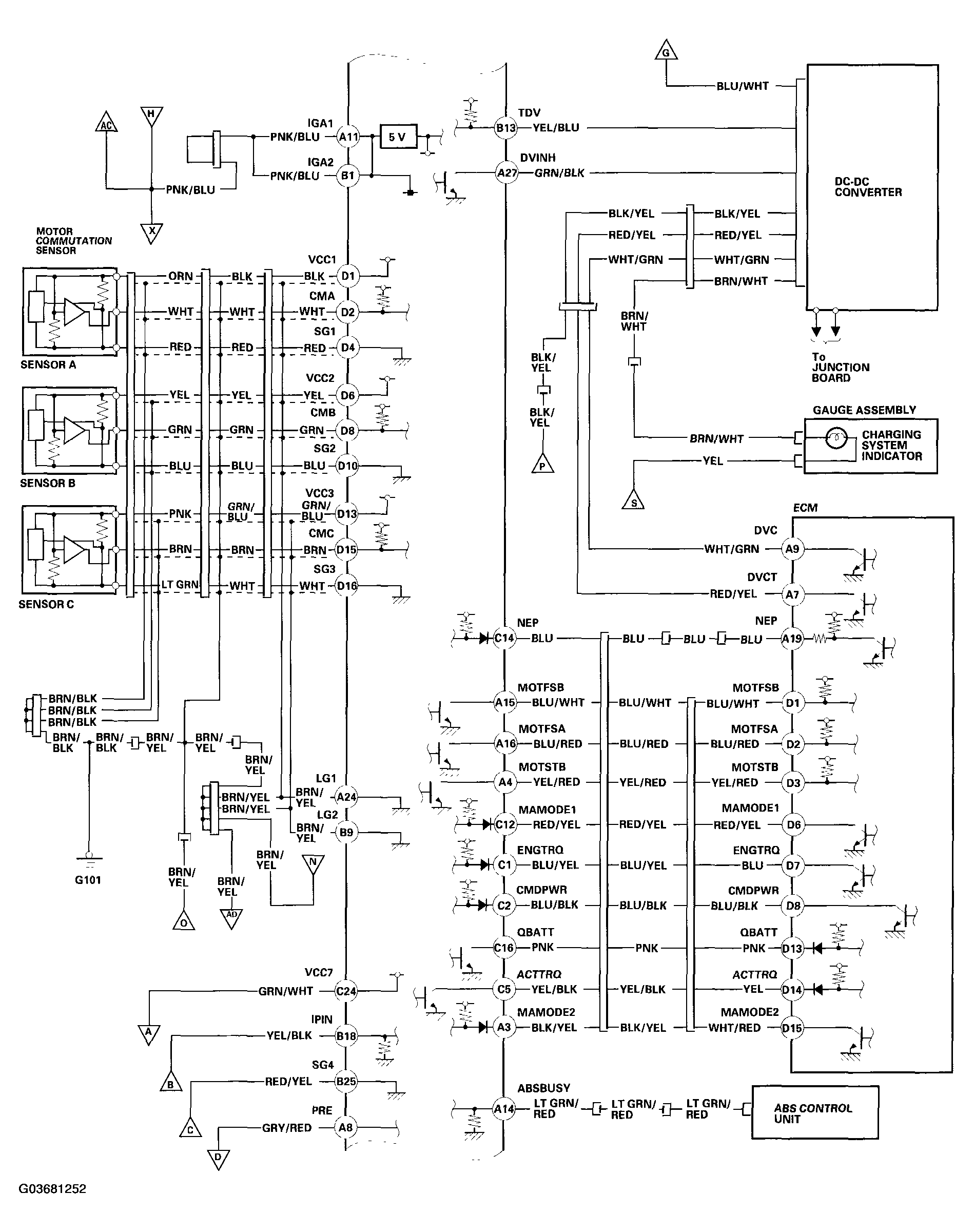

Fig 1: Circuit Diagram - IMA System (1 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

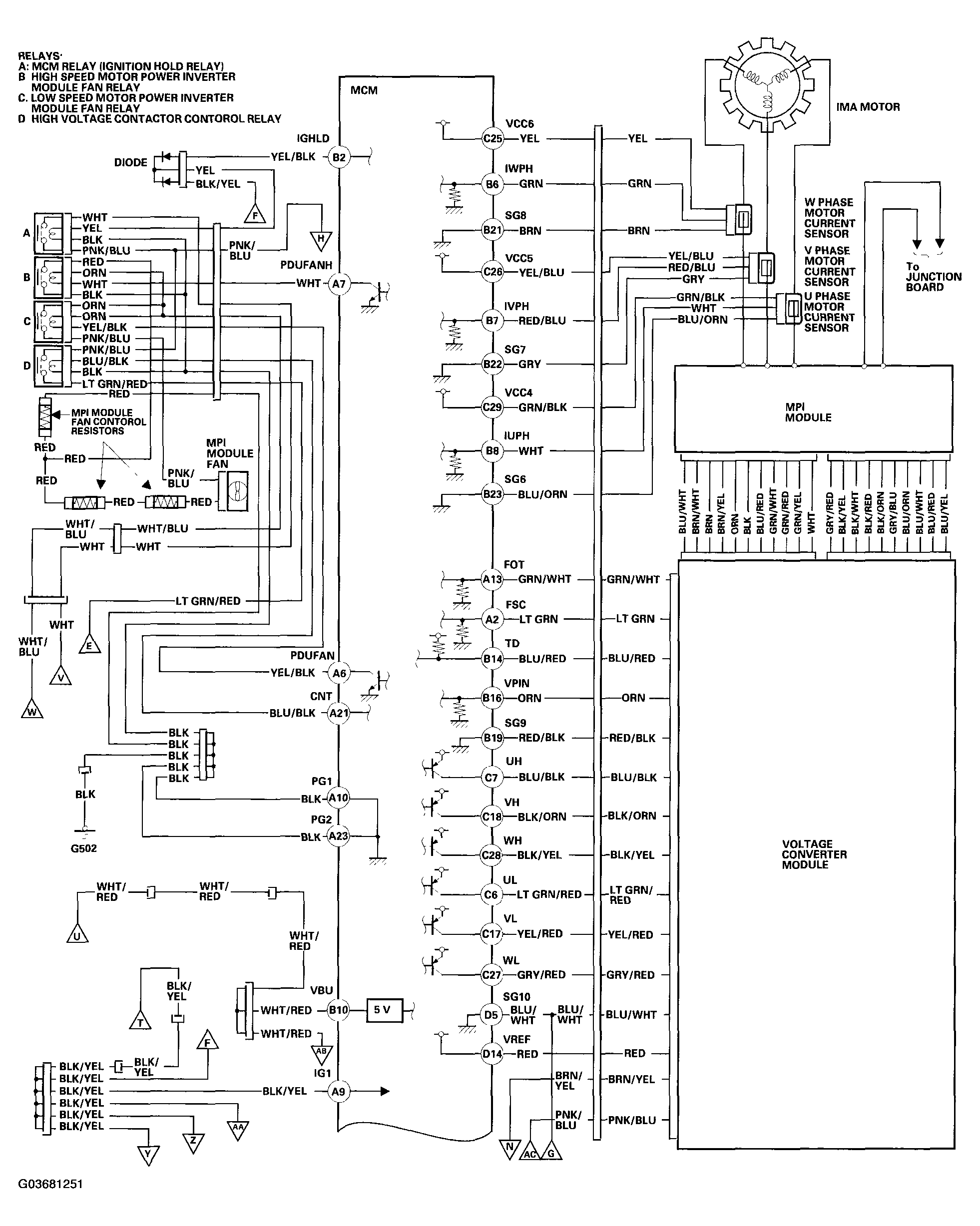

Fig 2: Circuit Diagram - IMA System (2 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

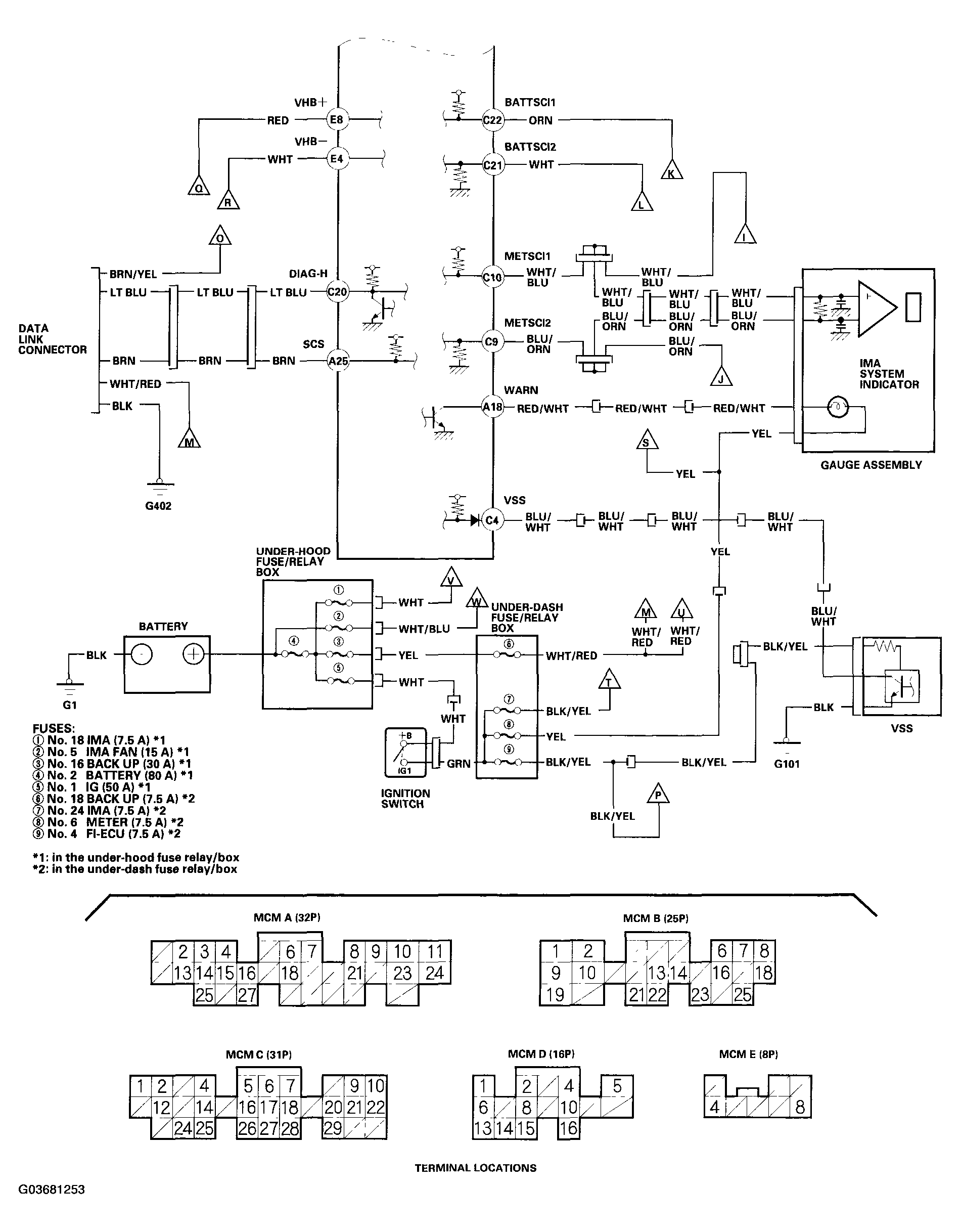

Fig 3: Circuit Diagram - IMA System (3 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

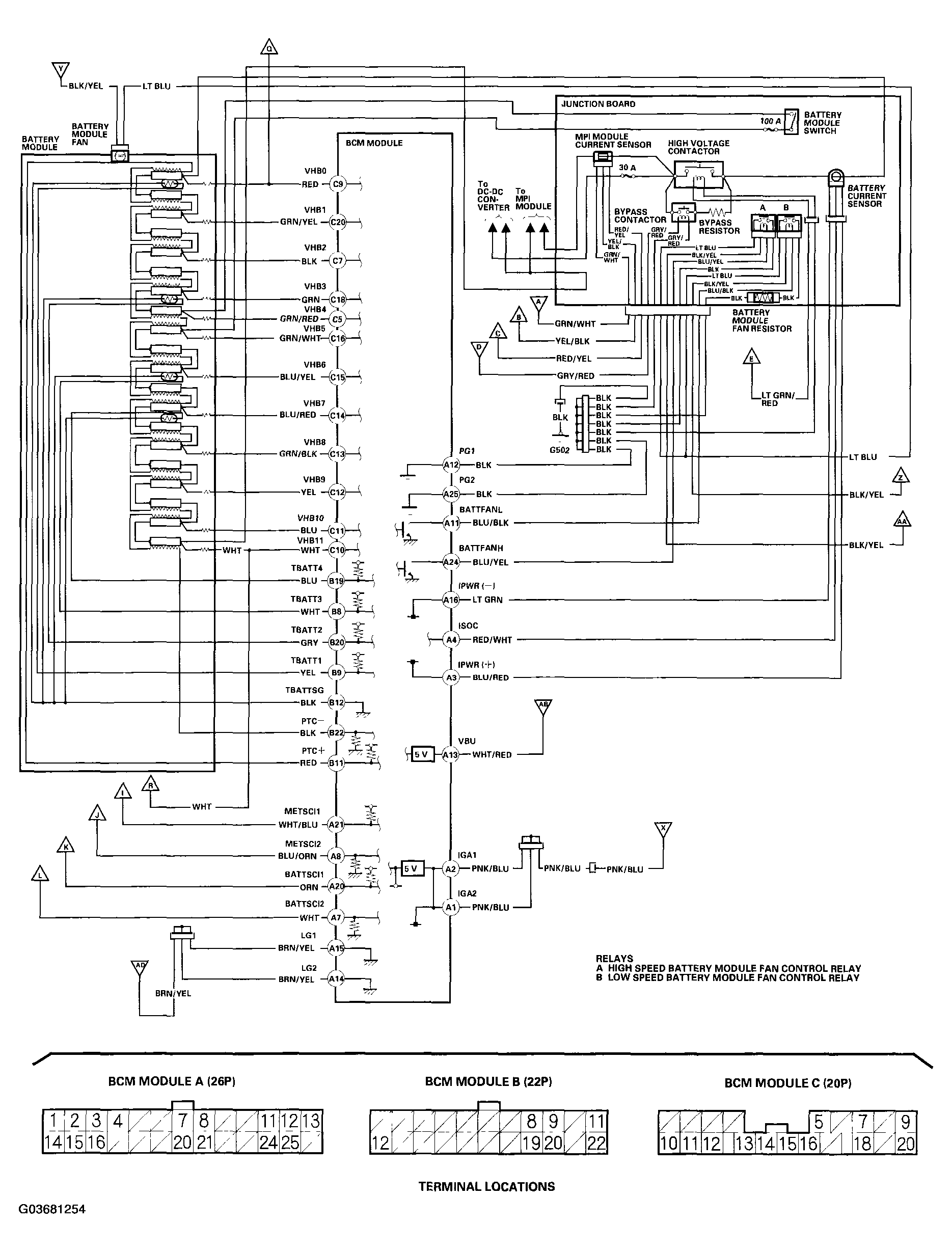

Fig 4: Circuit Diagram - IMA System (4 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
