Junction Board
Junction Board

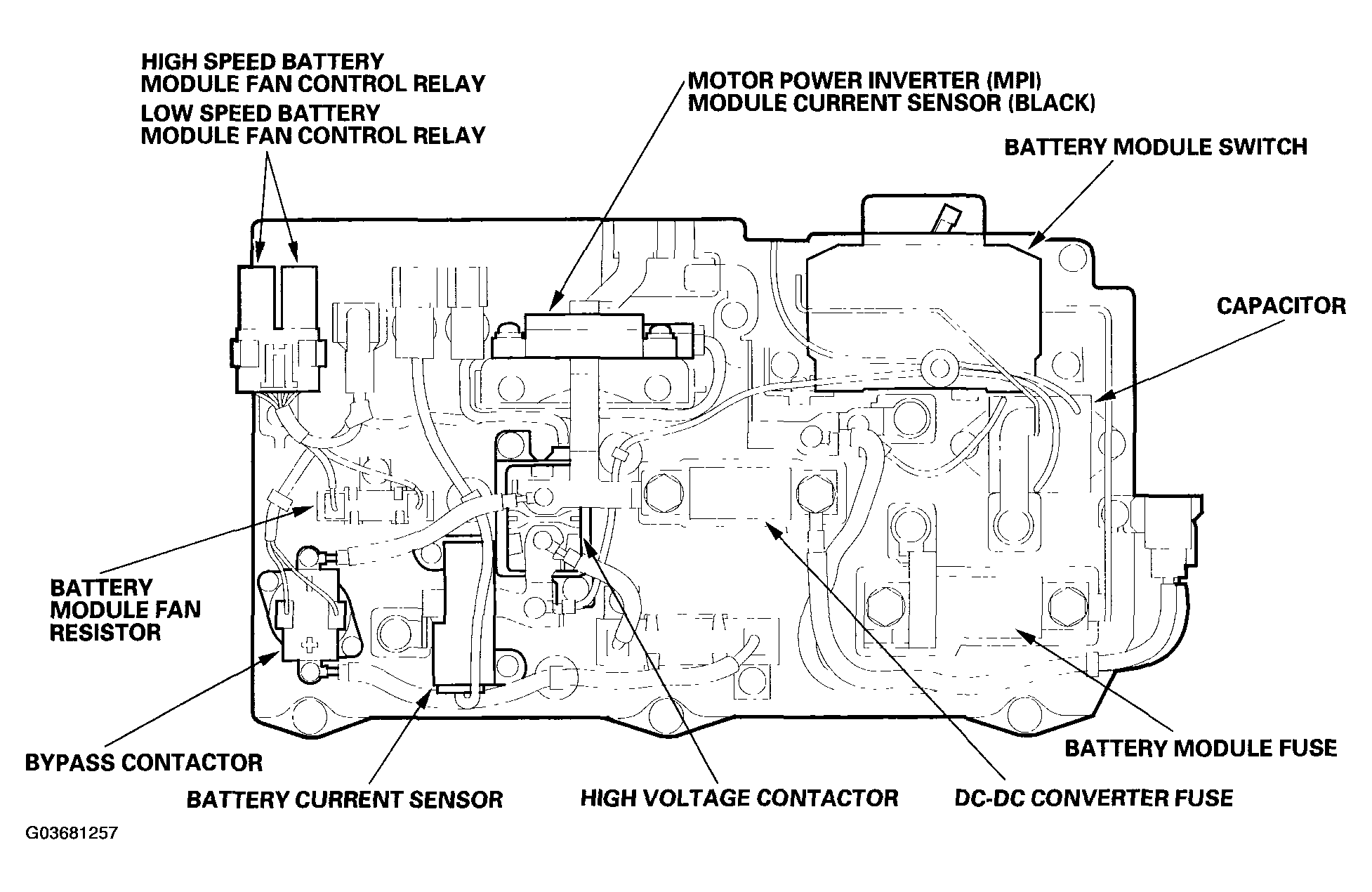

Fig 1: Identifying Junction Board Components Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
