Change Lever Assembly Disassembly/Reassembly

Prior to reassembling, clean all the parts in solvent, dry them, and apply grease to the contact surfaces as shown.

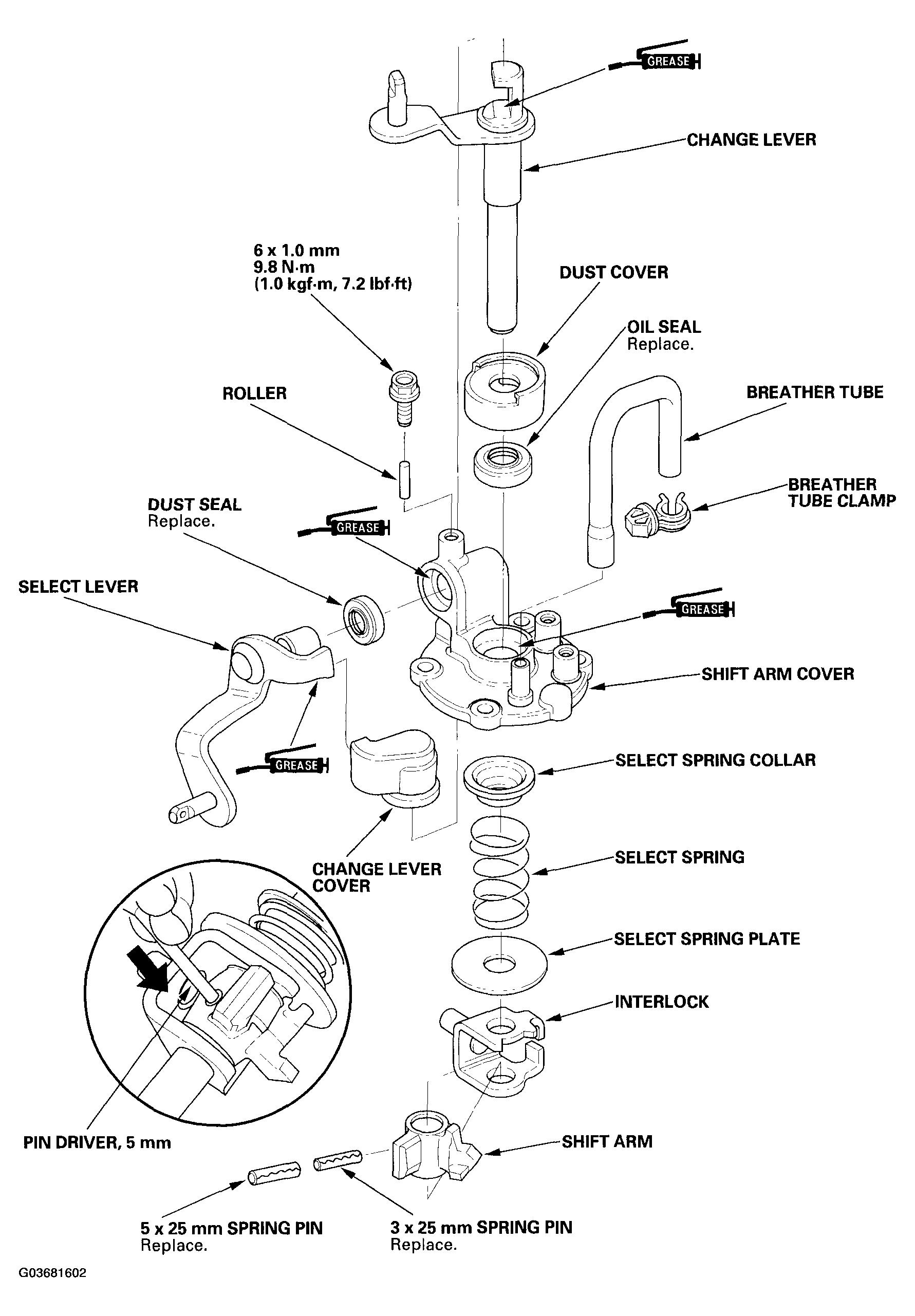

Fig 1: Exploded View And Torque Specifications Of Change Lever Assembly

Courtesy of AMERICAN HONDA MOTOR CO., INC.
