Shift Fork Disassembly/Reassembly

Prior to reassembling, clean all the parts in solvent, dry them, and apply lubricant to all contact surfaces.

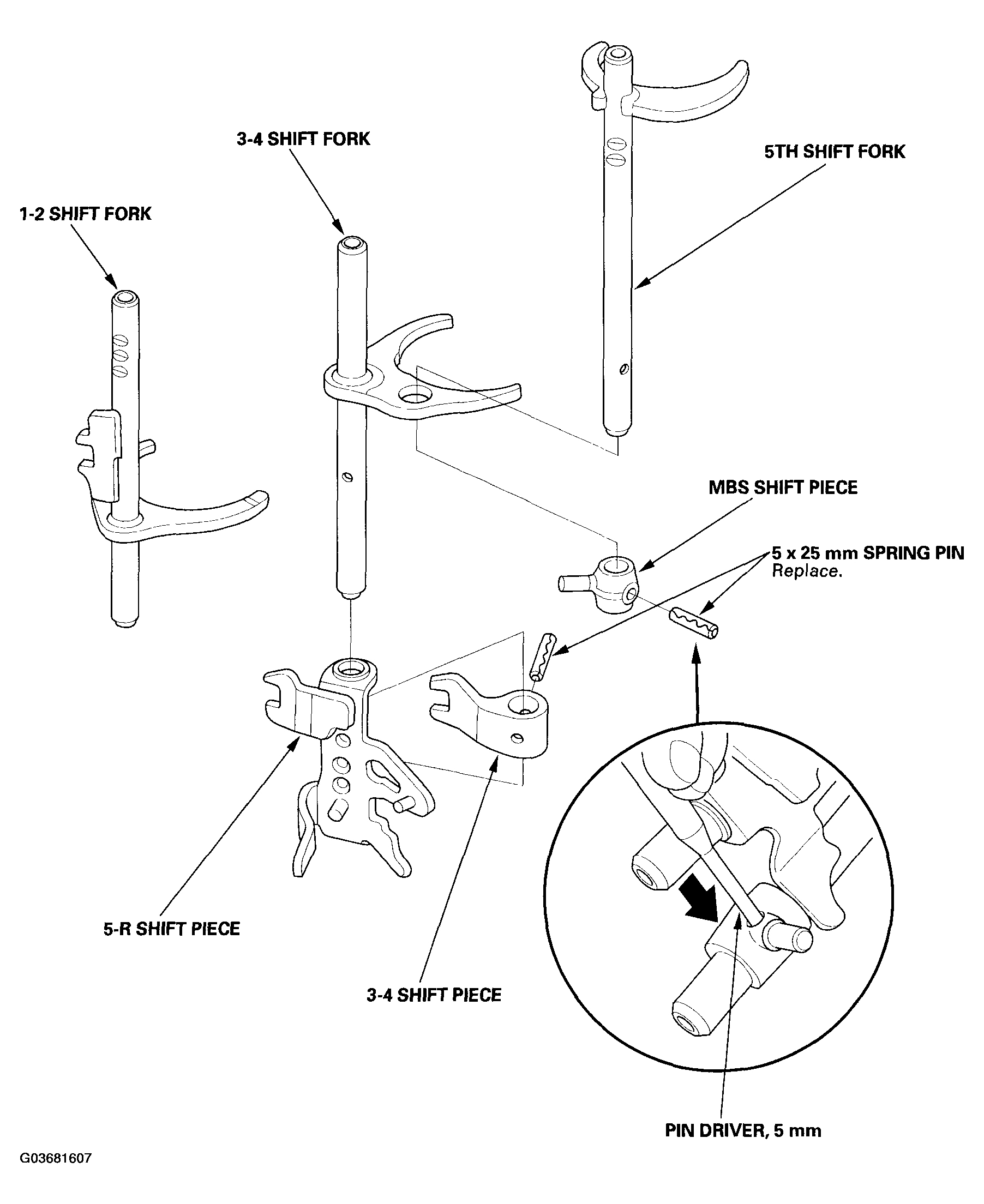

Fig 1: Disassembly/Reassembly Of Shift Fork
G03681607Courtesy of AMERICAN HONDA MOTOR CO., INC.
