Multiplex Control System
›
Circuit Diagram (Power, Ground, Communication Lines)
Circuit Diagram (Power, Ground, Communication Lines)

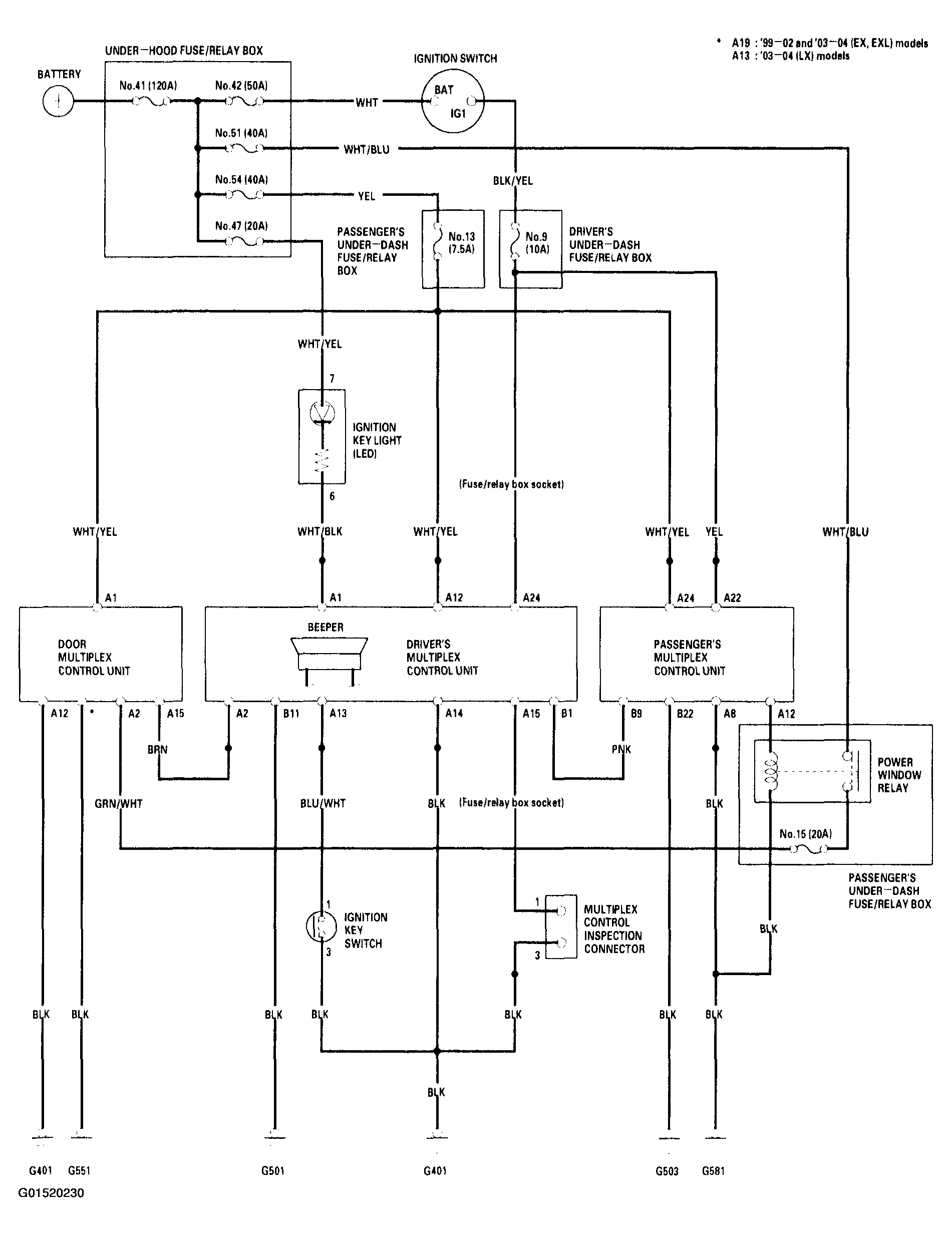

Fig 1: Multiplex Control Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
