Front Door Glass Adjustment

NOTE:

Check the weather-strips and glass run channel for damage or deterioration, and replace them if necessary.
Wipe the run channel clean with a shop towel.
Lubricate the run channel with Shin-Etsu grease P/N 08798-9013.

Place the vehicle on a firm, level surface.
Remove these items:
- Door panel (see Front Door Panel Removal/Installation )
- Pull pocket bracket (see Component Location Index )
- Power window control unit bracket, 03-04 models driver's door (see Component Location Index )
- Plastic cover (see Component Location Index )

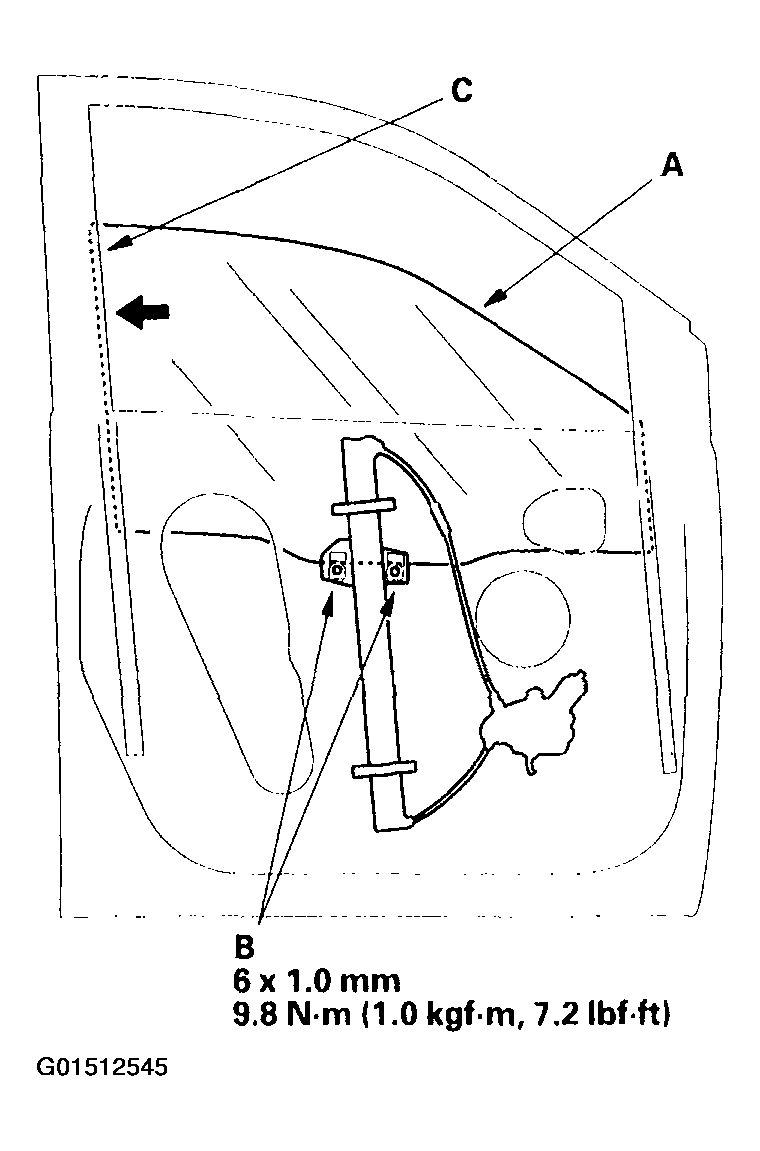

Carefully lower the glass (A) until you can see the glass mounting bolts (B), then loosen them.

Fig 1: Lowering Glass
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Push the glass (A) against the center channel (C), then tighten the glass mounting bolts.
Check that the glass moves smoothly.
Raise the glass fully, and check for gaps. Check that the glass (A) contacts the glass run channel (B) evenly.

Fig 2: Checking Glass Contacts Glass Run Channel
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for water leaks. Run water over the roof and on the sealing area as shown, and note these items:
- Use a 12 mm (1/2 in.) diameter hose (A).
- Adjust the rate of water flow as shown (B).
- Do not use a nozzle.
- Hold the hose about 300 mm (12 in.) away from the door.
Fig 3: Checking For Water Leaks
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Attach the plastic cover, and install the door panel (see Front Door Panel Removal/Installation ).
Test-drive and check for wind noise.
