Window Switch, Front Passenger's Connector End View
Window Switch, Front Passenger's Connector End View

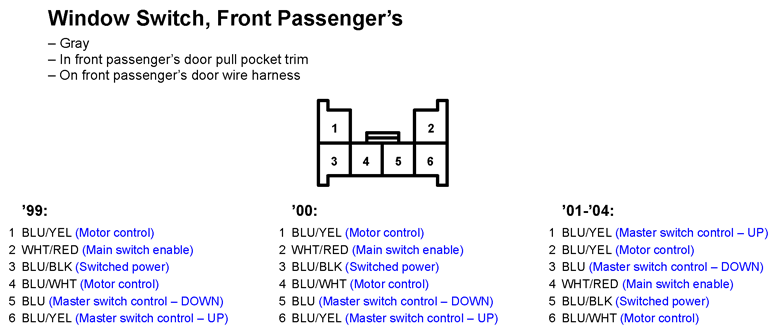

Fig 1: Window Switch, Front Passenger's Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
