Circuit Diagram-with Defogger
Circuit Diagram-with Defogger

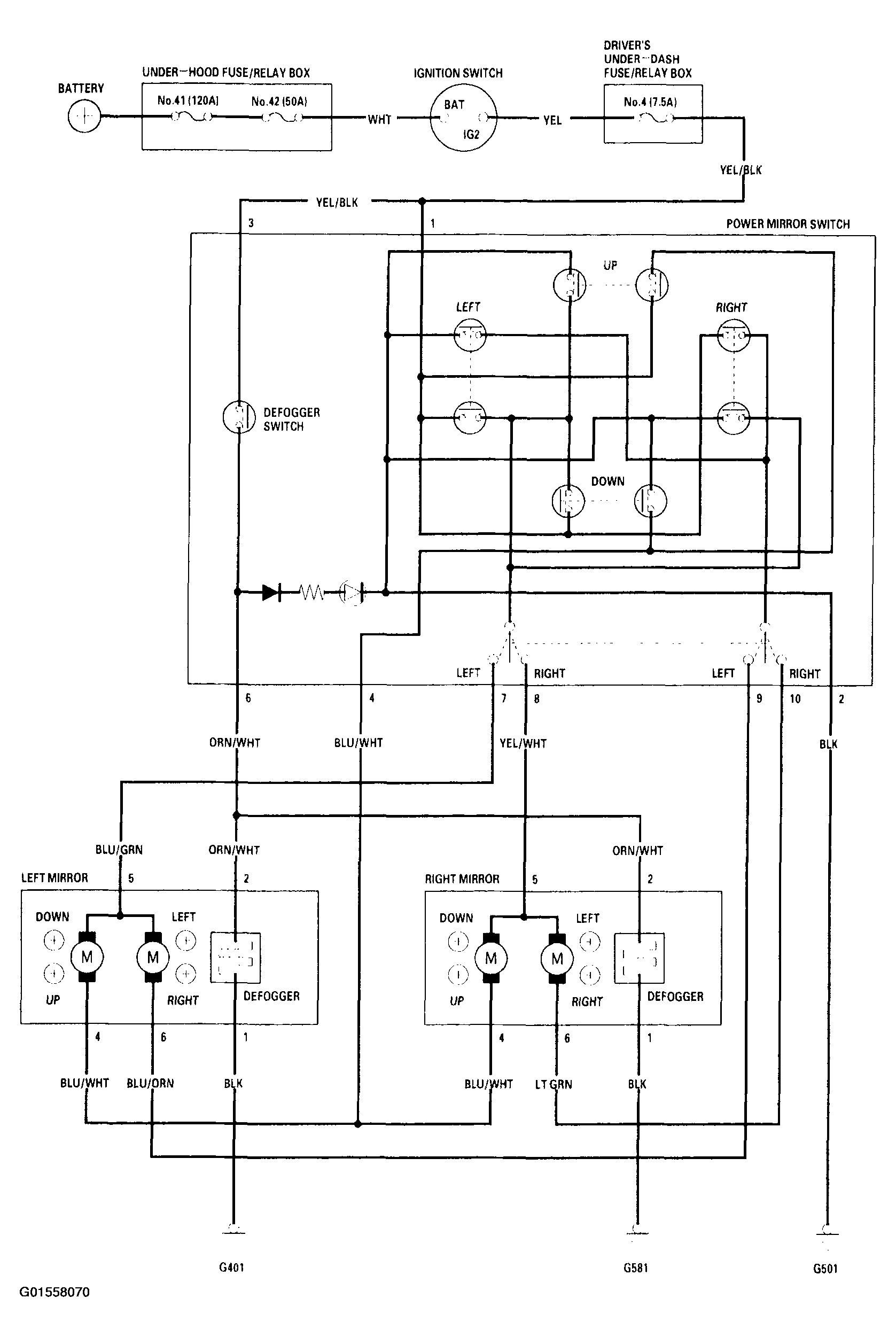

Fig 1: Power Mirror Circuit Diagram (With Defogger)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
