Component Location Index

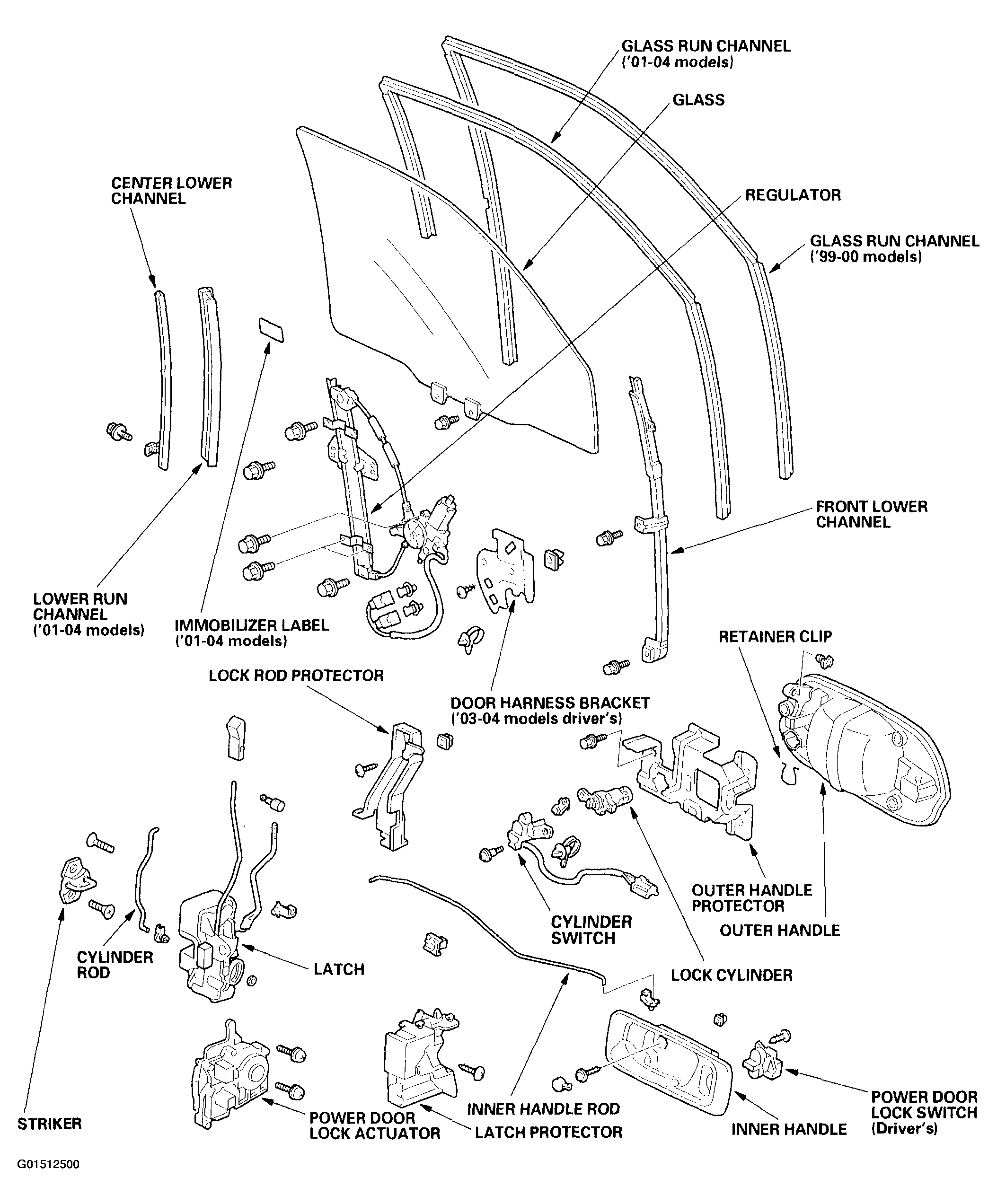

Fig 1: Exploded View Of Front Door (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Exploded View Of Front Door (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

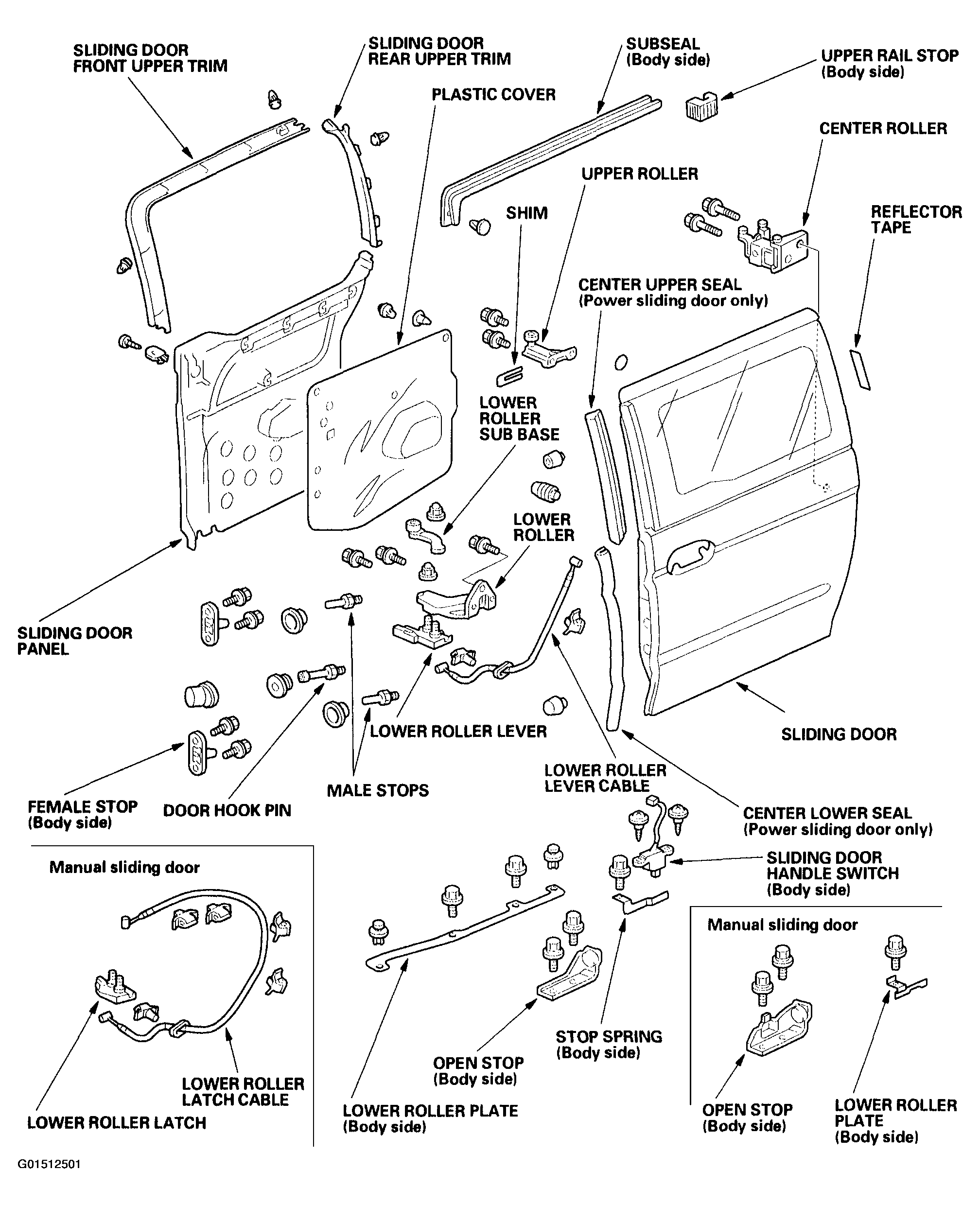

Fig 3: Exploded View Of Sliding Door (1 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

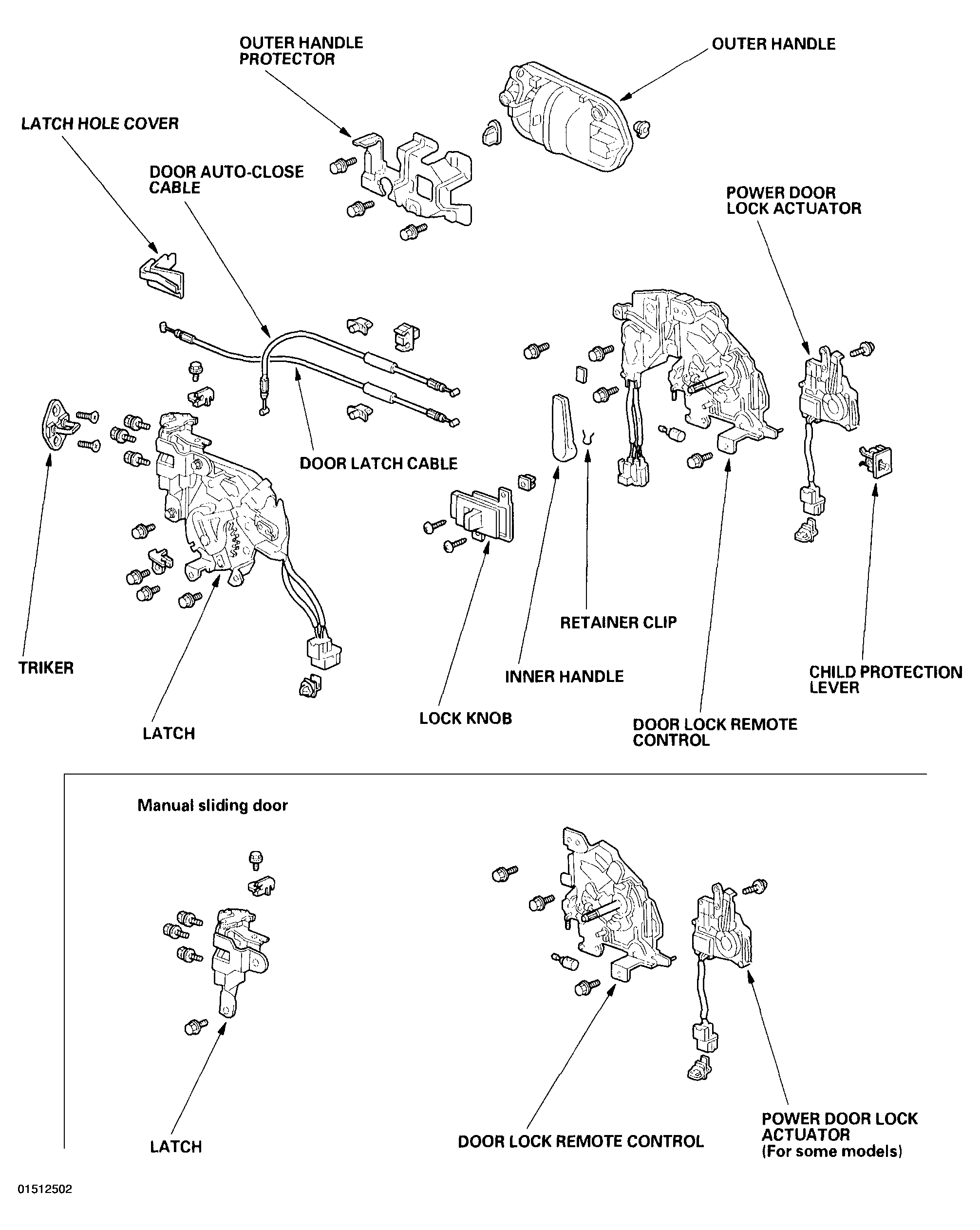

Fig 4: Exploded View Of Sliding Door (2 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

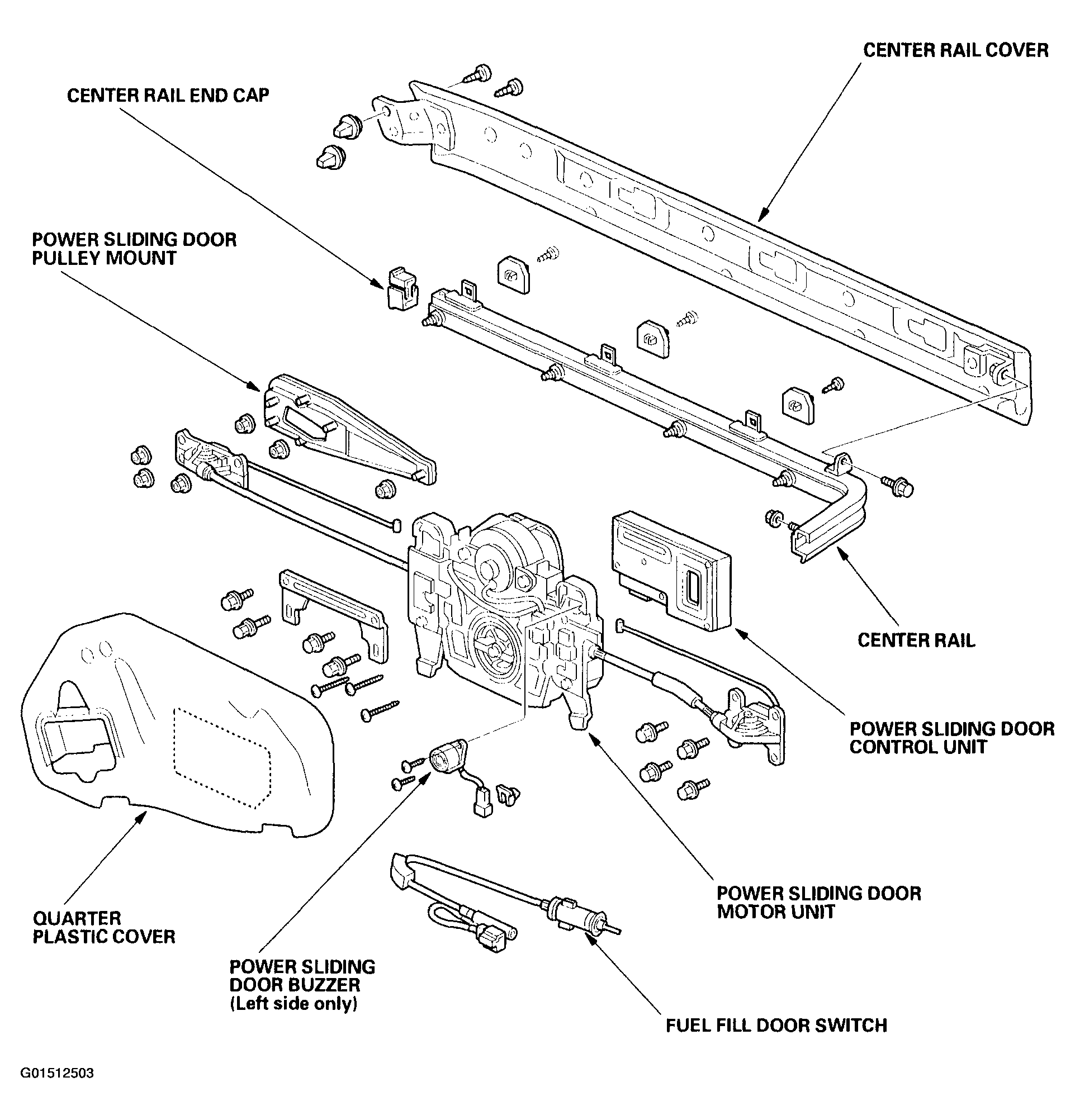

Fig 5: Exploded View Of Sliding Door (3 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
