Passenger's Window Switch Replacement
Passenger's Window Switch Replacement
Remove the screw and passenger's window switch assembly from the door panel.
Fig 1: Removing Screw & Passenger's Window Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.

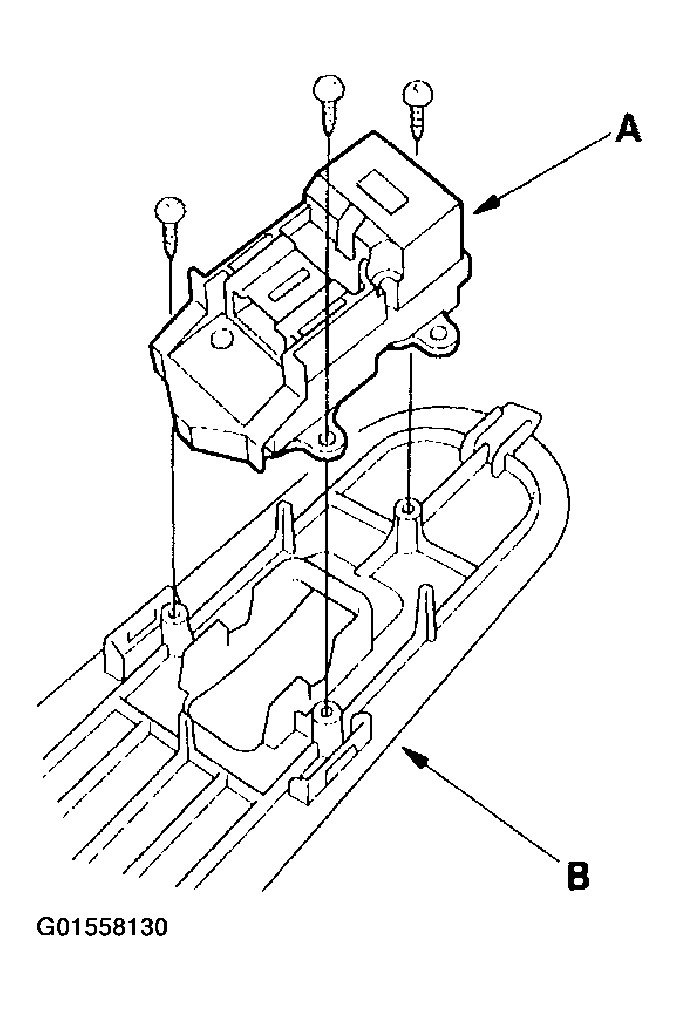

Remove the three mounting screws, then remove the passenger's window switch (A) from the panel (B).
Fig 2: Removing Passenger's Window Switch From Panel
Courtesy of AMERICAN HONDA MOTOR CO., INC.
