Pressure reducing mode

TCS NO valve open, TCS NC valve closed, inlet valve closed, outlet valve open.

Caliper fluid flows through the outlet valve to the reservoir.

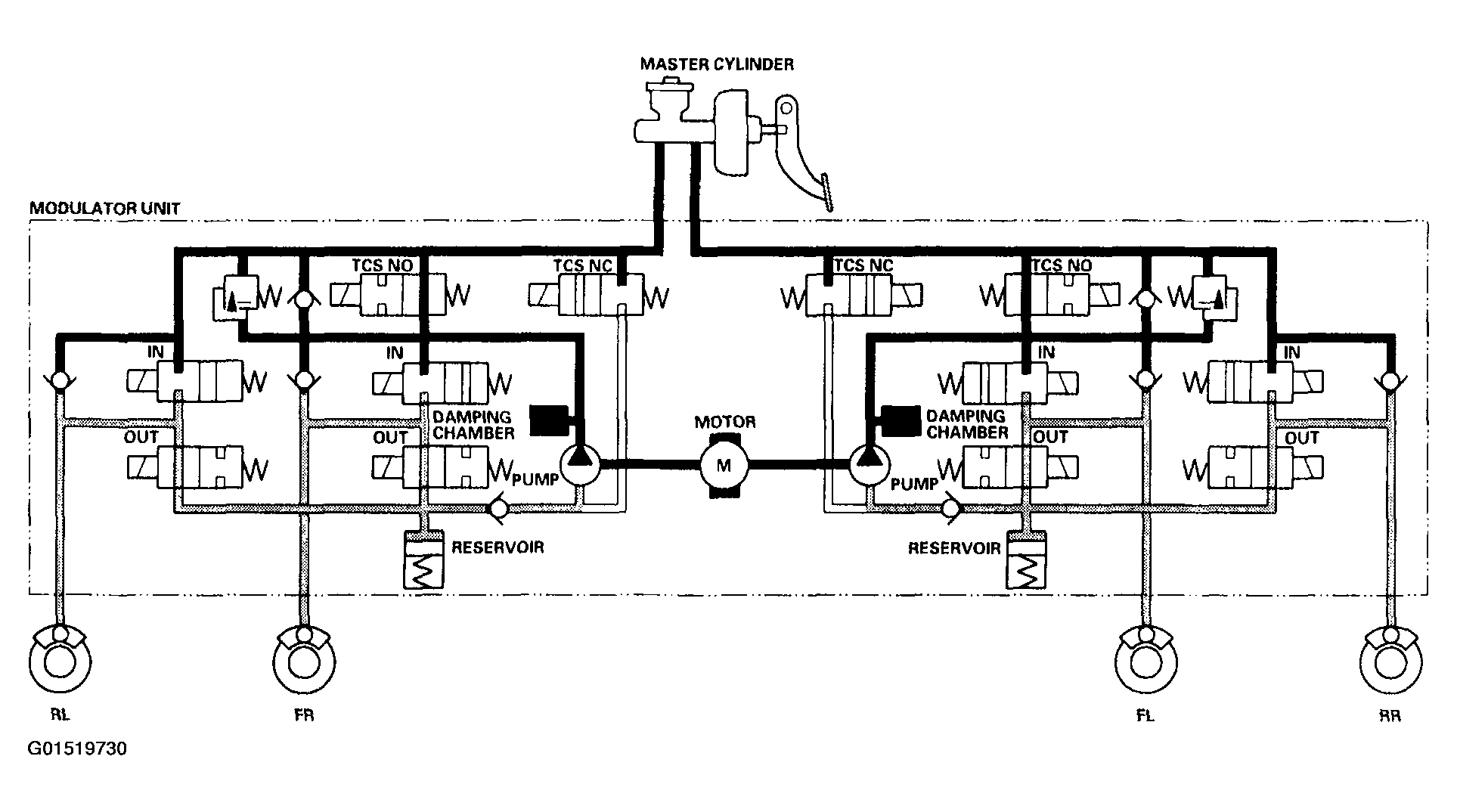

Fig 1: Pressure Reducing Mode Fluid Schematic

Courtesy of AMERICAN HONDA MOTOR CO., INC.
