Audio Unit Connector End View

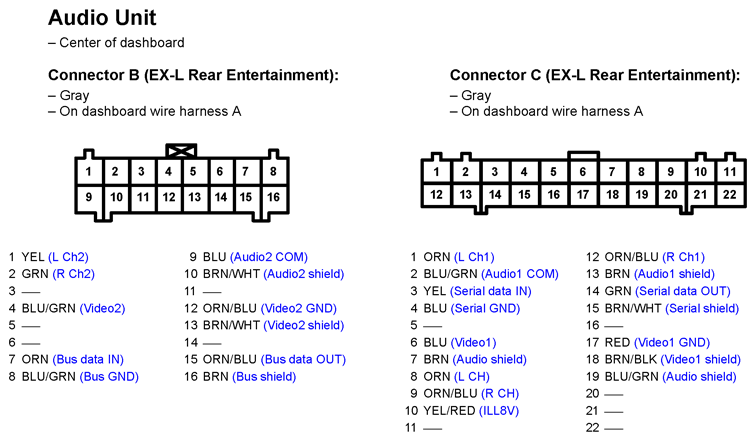

Fig 1: Audio Unit Connector End View (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

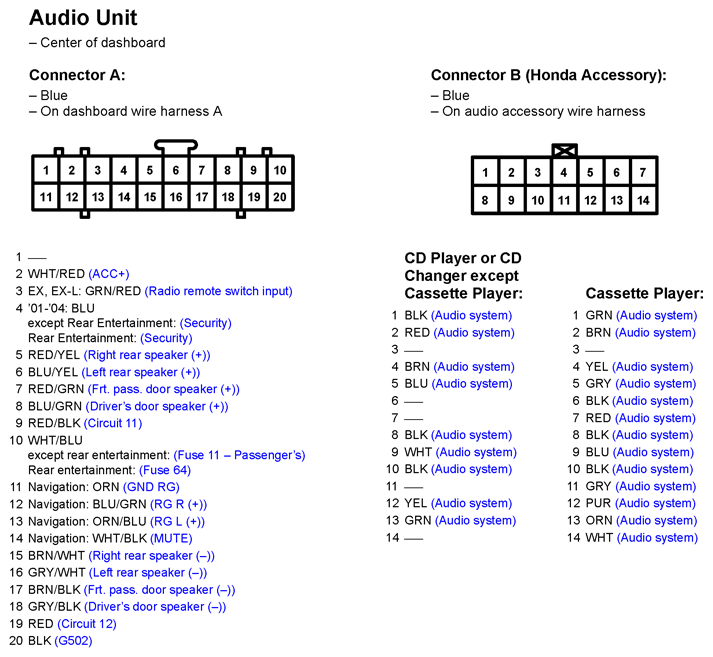

Fig 2: Audio Unit Connector End View (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
