Sliding Door Lock Control Unit Connector End View
Sliding Door Lock Control Unit Connector End View

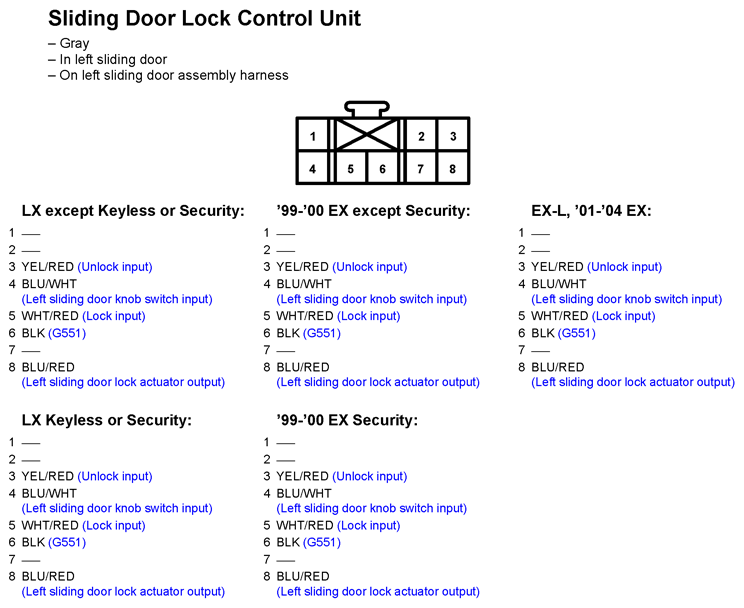

Fig 1: Sliding Door Lock Control Unit Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
