Engine Mount Control System
›
Circuit Diagram
Circuit Diagram

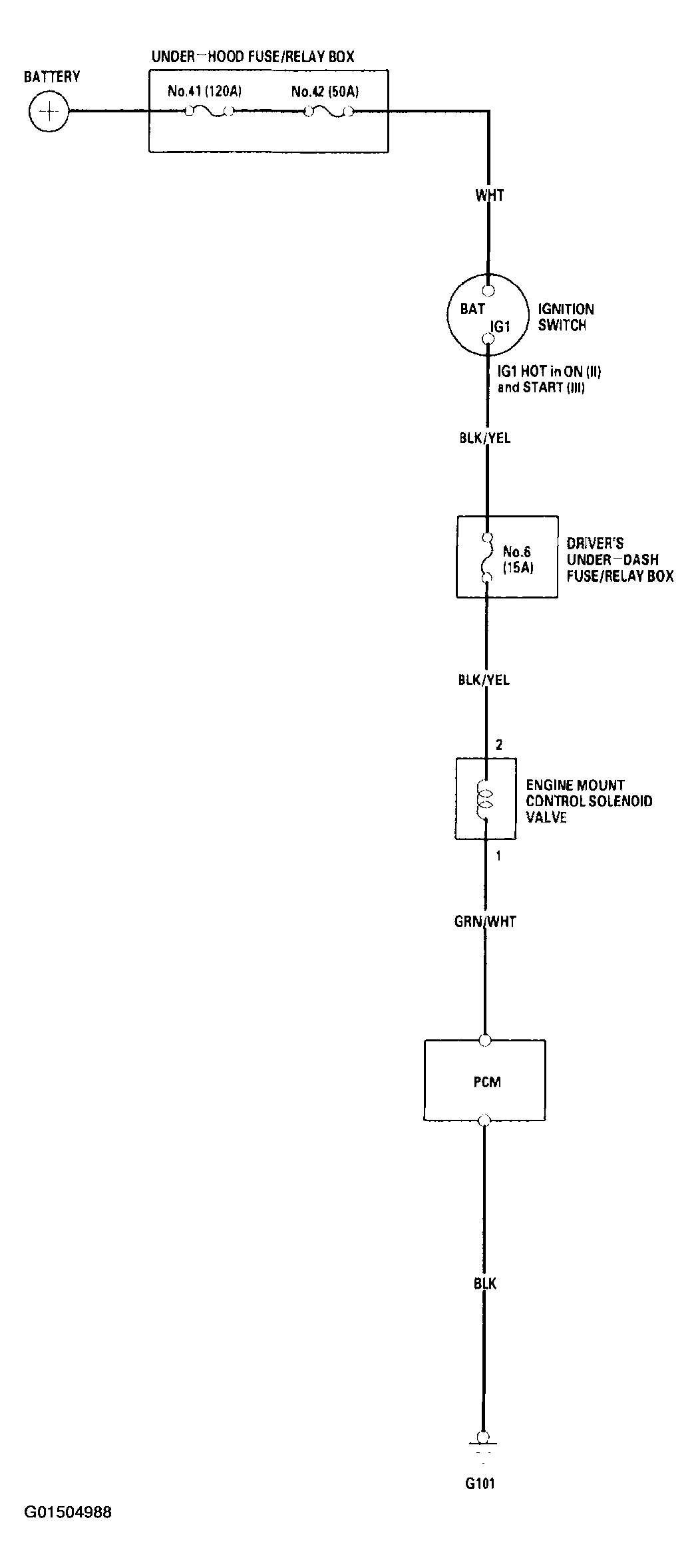

Fig 1: Engine Mount Control System Wiring Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
