DTC Troubleshooting Index

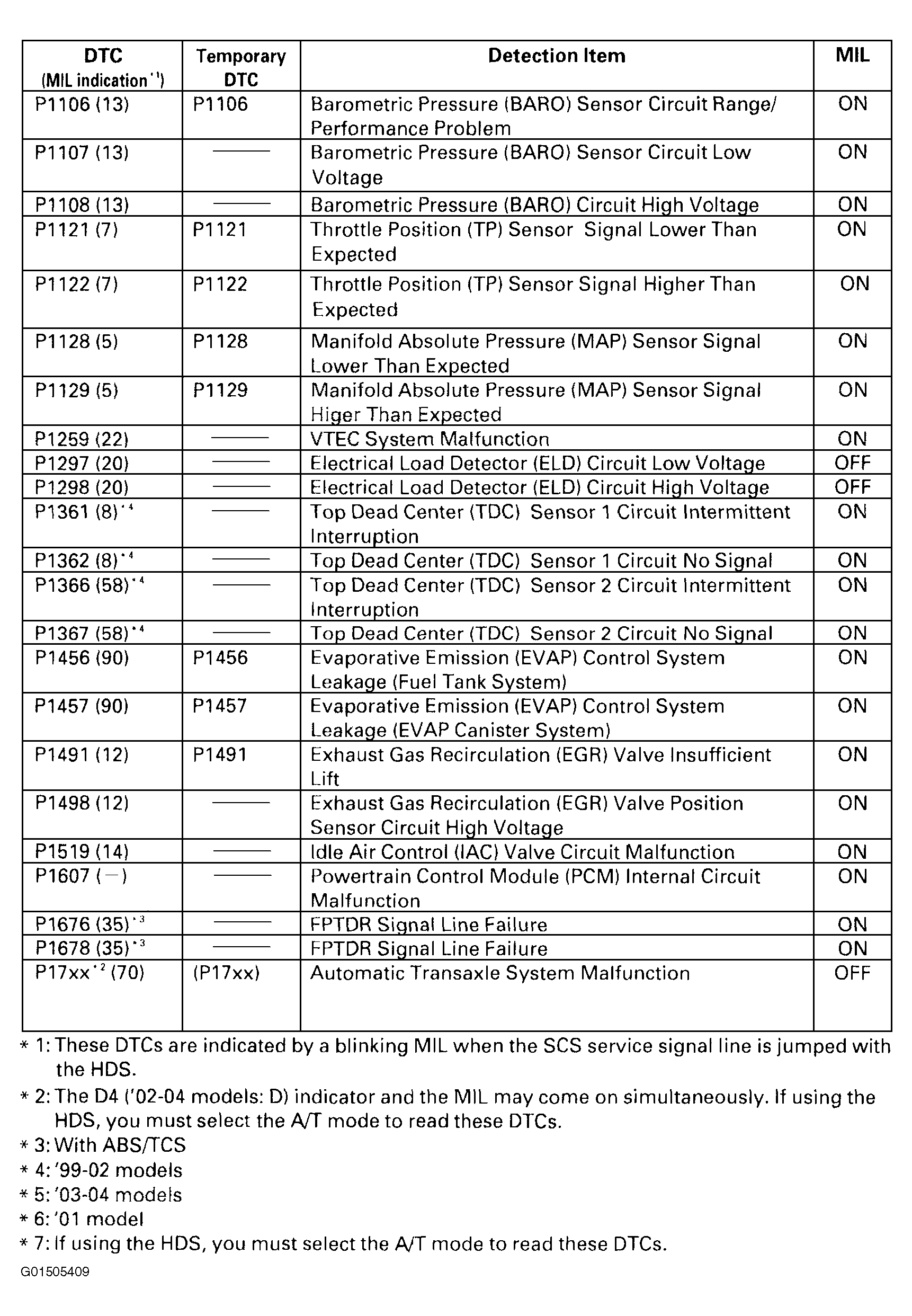

Fig 1: DTC Troubleshooting Chart (1 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: DTC Troubleshooting Chart (2 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

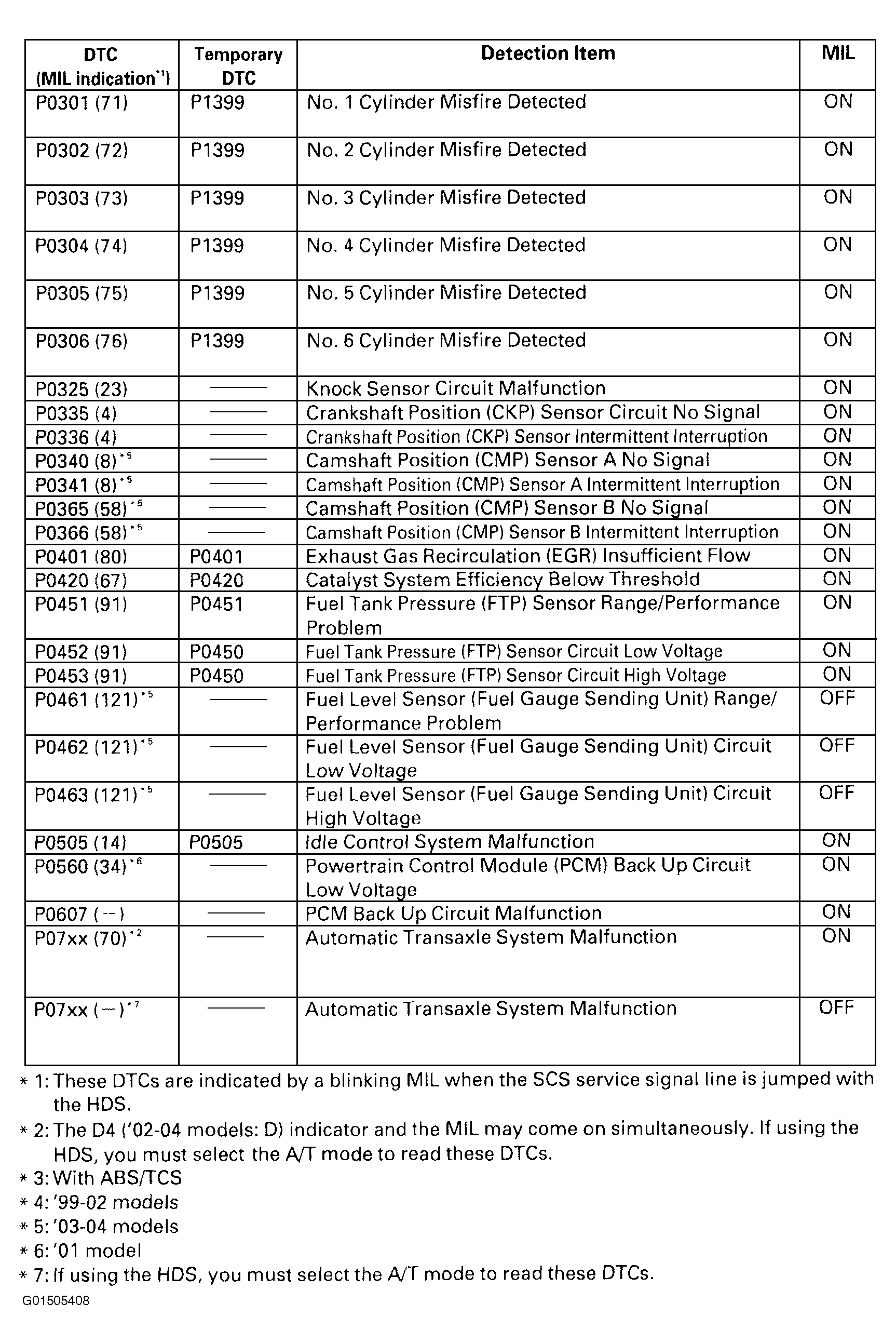

Fig 3: DTC Troubleshooting Chart (3 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
