Vacuum Distribution

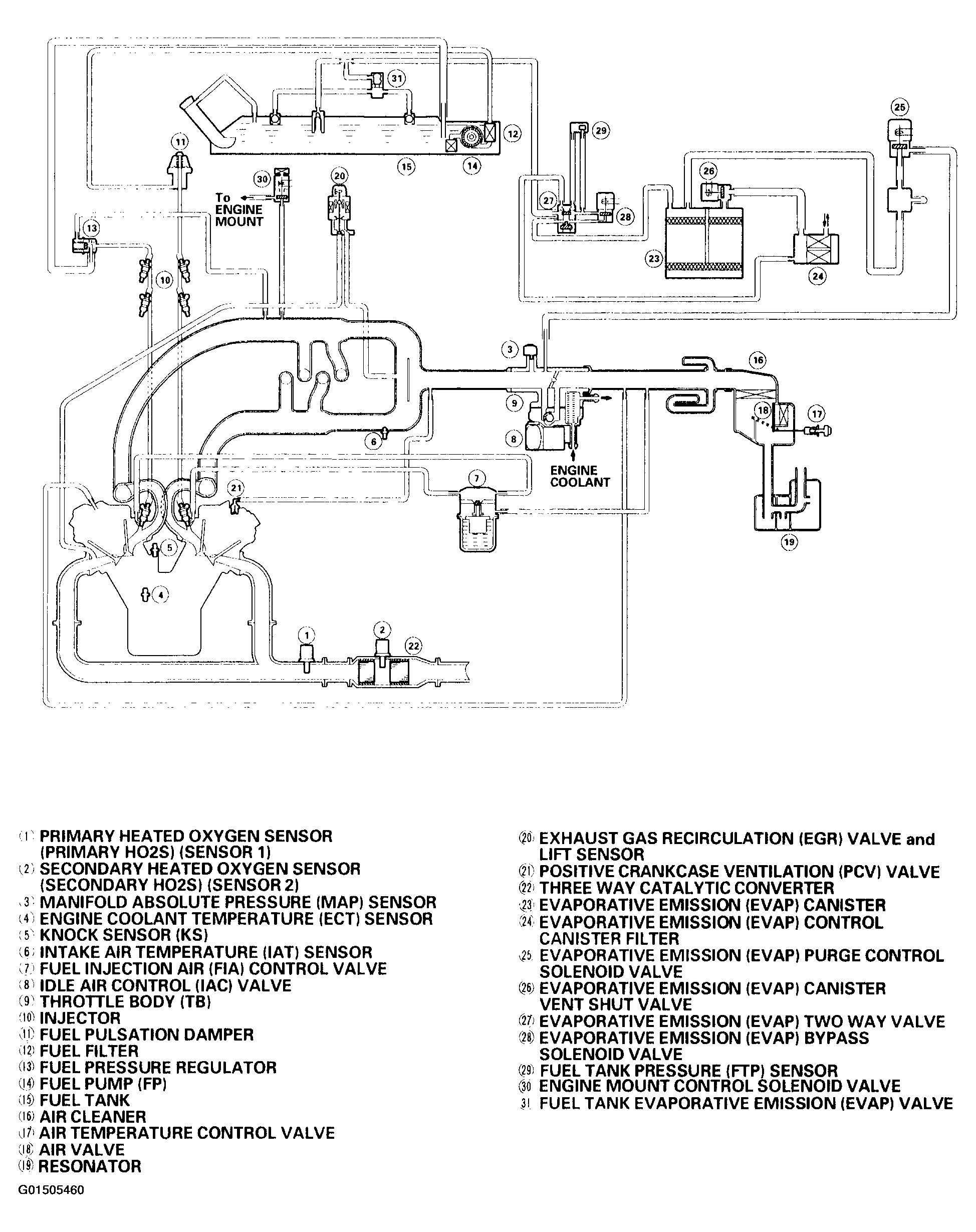

Fig 1: Identifying Vacuum Distribution ('99-00 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

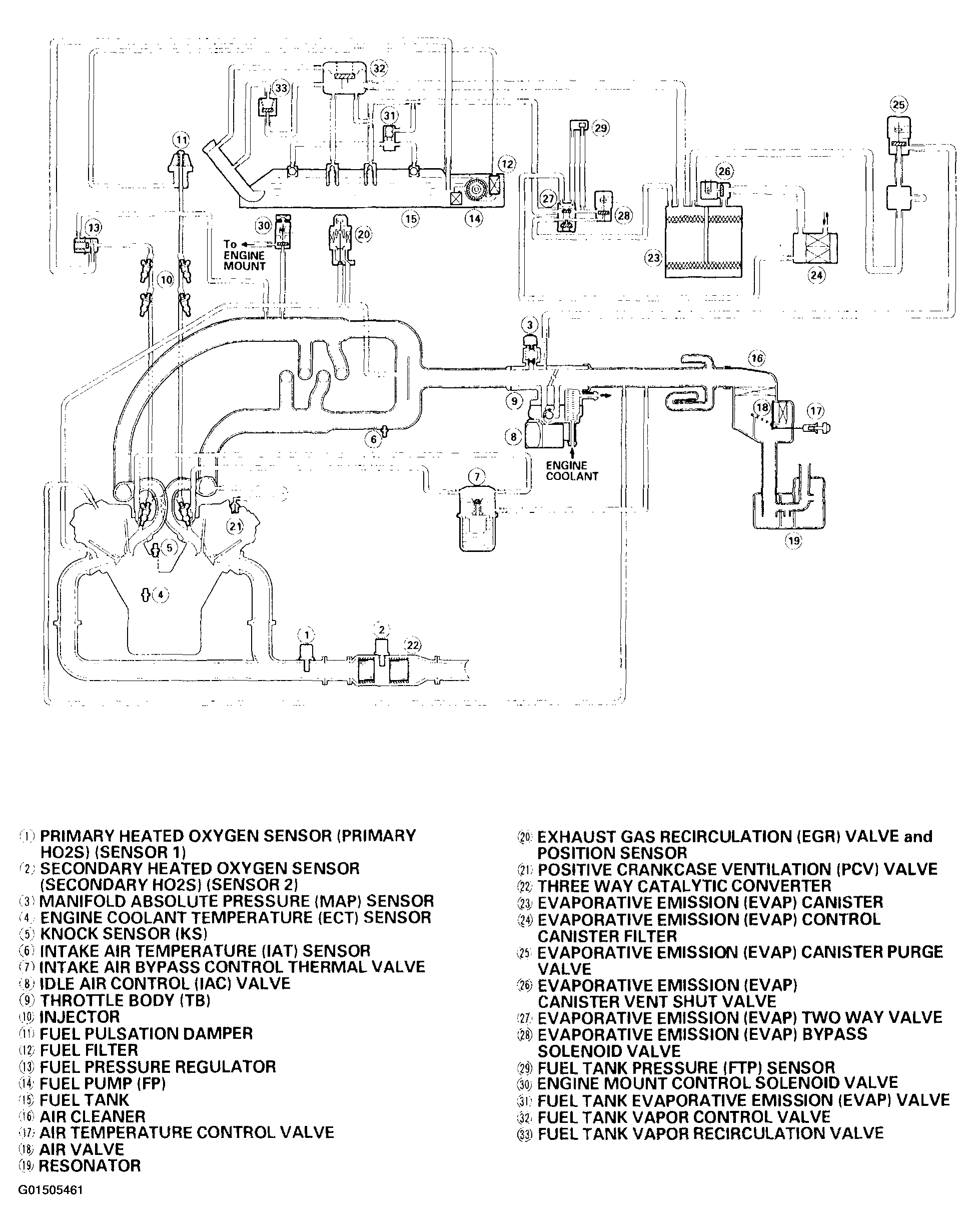

Fig 2: Identifying Vacuum Distribution ('01 Model)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

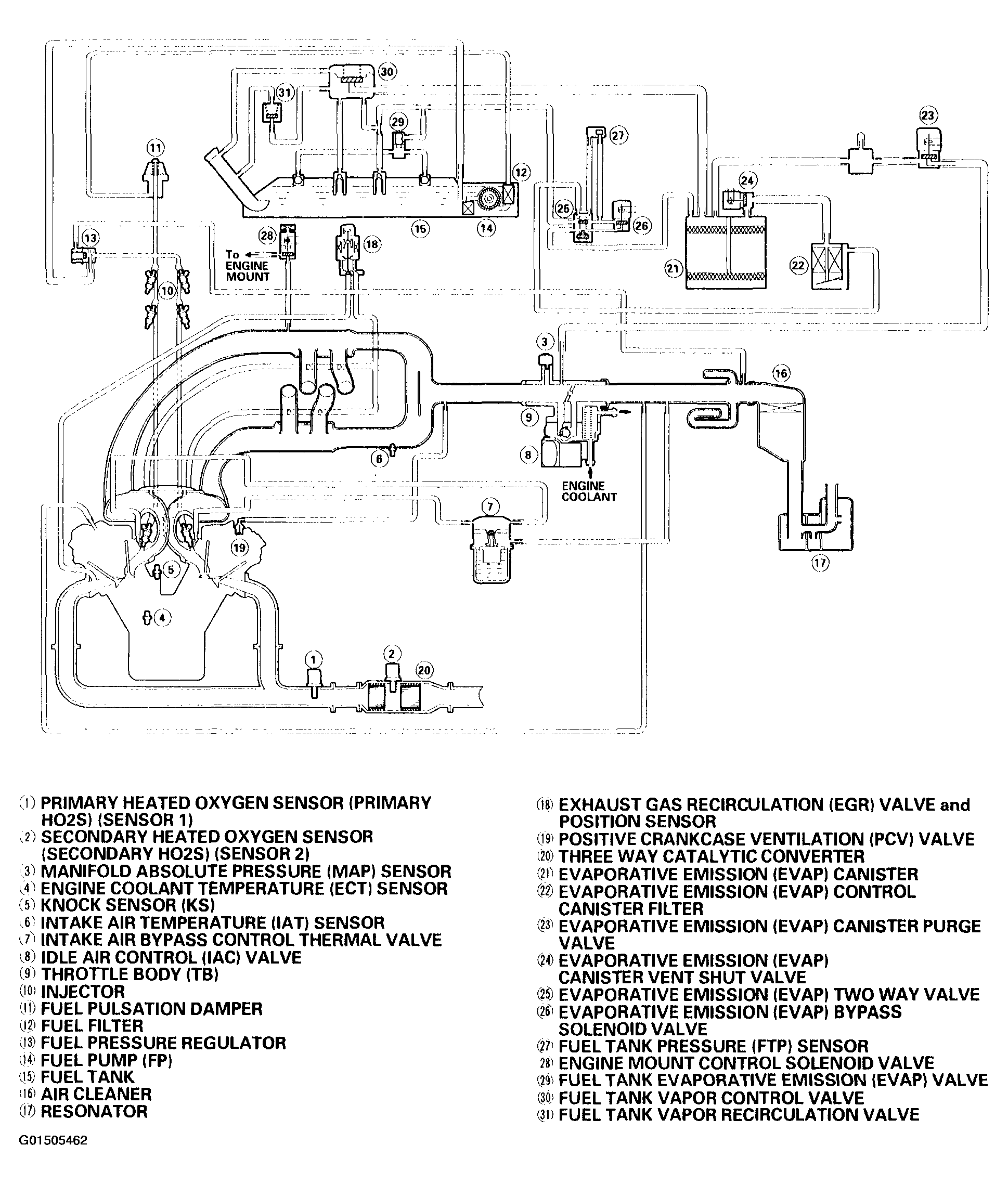

Fig 3: Identifying Vacuum Distribution ('02-04 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
