Blower Unit Removal and Installation

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Remove the glove box housing (see LOWER GLOVE BOX REMOVAL/INSTALLATION ).

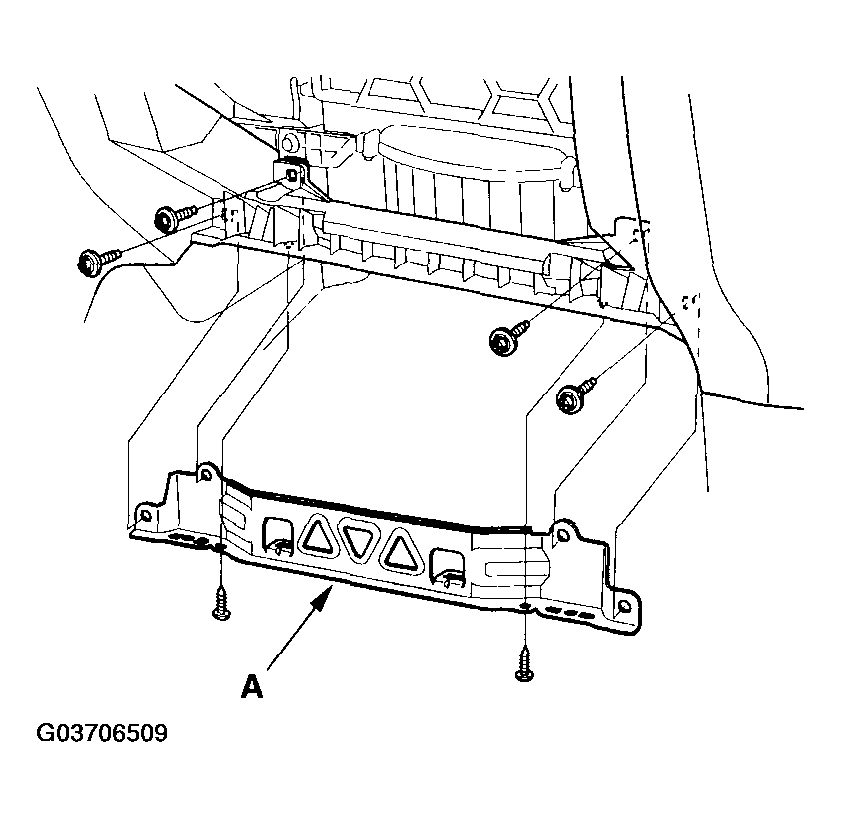

Remove the self-tapping screws, the bolts and the glove box frame (A).

Fig 1: Removing Glove Box Frame
Courtesy of AMERICAN HONDA MOTOR CO., INC.

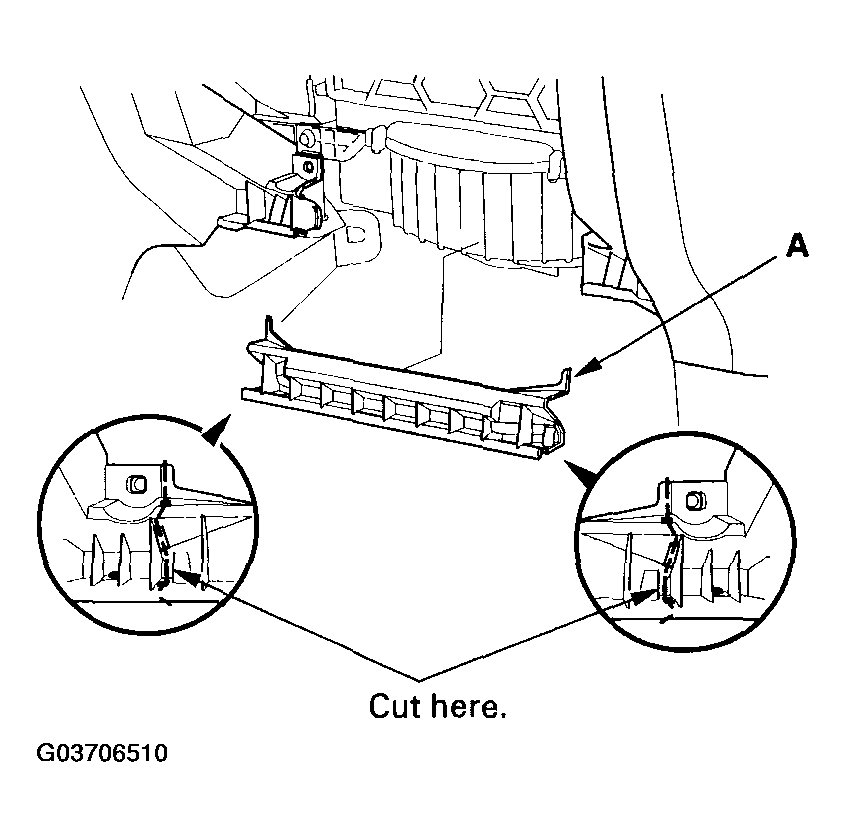

Cut the plastic cross brace (A) in the glove box opening with diagonal cutters in the area shown in Fig 2, and discard it.

Fig 2: Cutting Plastic Cross Brace
Courtesy of AMERICAN HONDA MOTOR CO., INC.

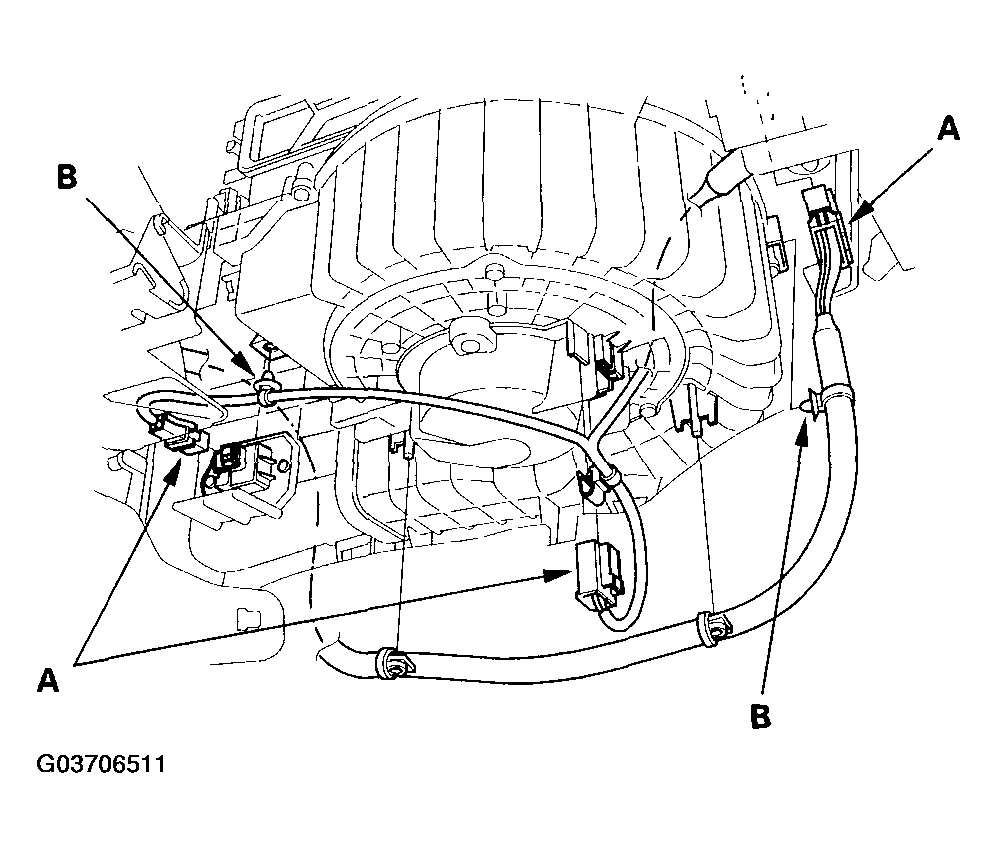

Disconnect the connectors (A) from the climate control unit, the blower motor, and the power transistor, then remove the wire harness clips (B).

Fig 3: Disconnecting Connectors From Climate Control Unit
Courtesy of AMERICAN HONDA MOTOR CO., INC.

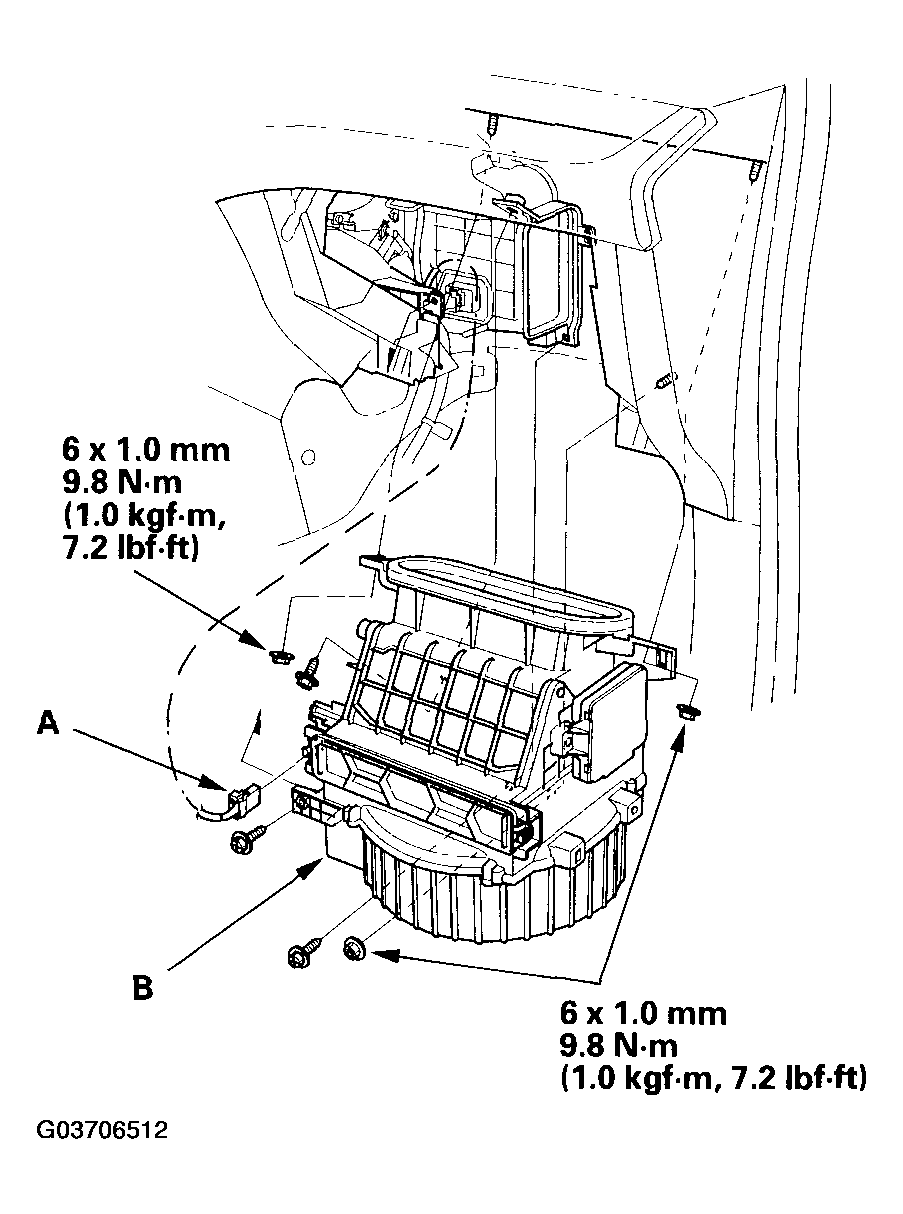

Disconnect the connector (A) from the recirculation control motor, then remove the bolts, the mounting nuts and the blower unit (B).

Fig 4: Removing And Blower Unit
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the unit in the reverse order of removal. Make sure that there is no air leakage.
